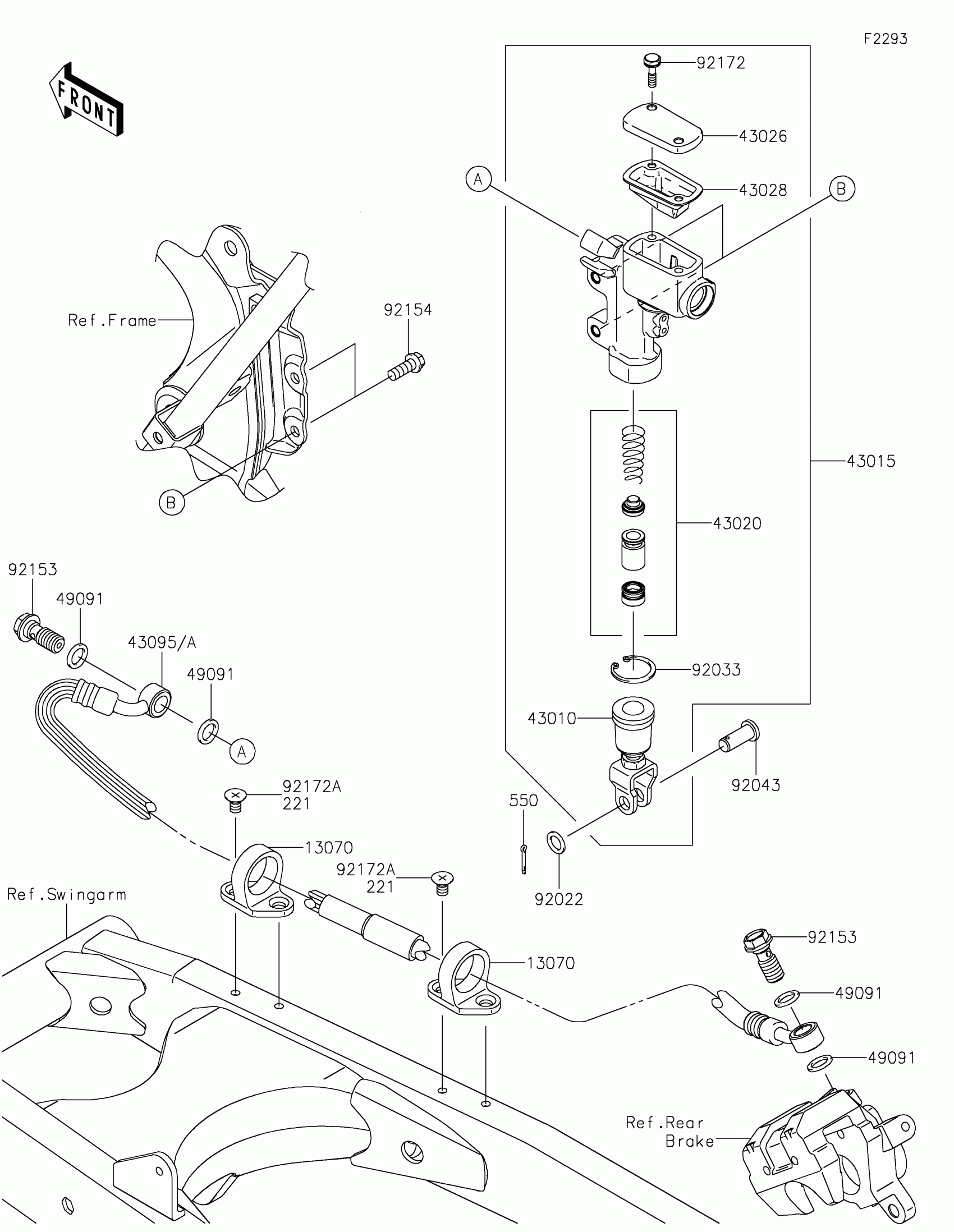

Kawasaki KLX®140R F Rear Master Cylinder Diagram

Description

Price

13070

GUIDE,HOSE

13070-1144

$8.03

43010

ROD-ASSY-BRAKE

43010-0006

$55.84

43015

CYLINDER-ASSY-MASTER,RR

43015-0099

$306.54

43020

PISTON-COMP-BRAKE

43020-1094

$65.22

43026

CAP-BRAKE

43026-0008

$15.72

43028

DIAPHRAGM

43028-1092

$20.74

43095A

HOSE-BRAKE,RR

43095-1935

$69.04

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92022

WASHER,8.5X13X1

92022-1028

$3.92

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92043

92043-0004

$11.16

92153

BOLT,OIL,L=23

92153-0029

$1.63

92154

BOLT,FLANGED,6X16

92154-0460

$1.83

92172

SCREW

92172-0286

$2.61

92172A

SCREW,6X10

92172-1503

$3.67

550

PIN-COTTER,2.0X15

550AA2015

$1.12
