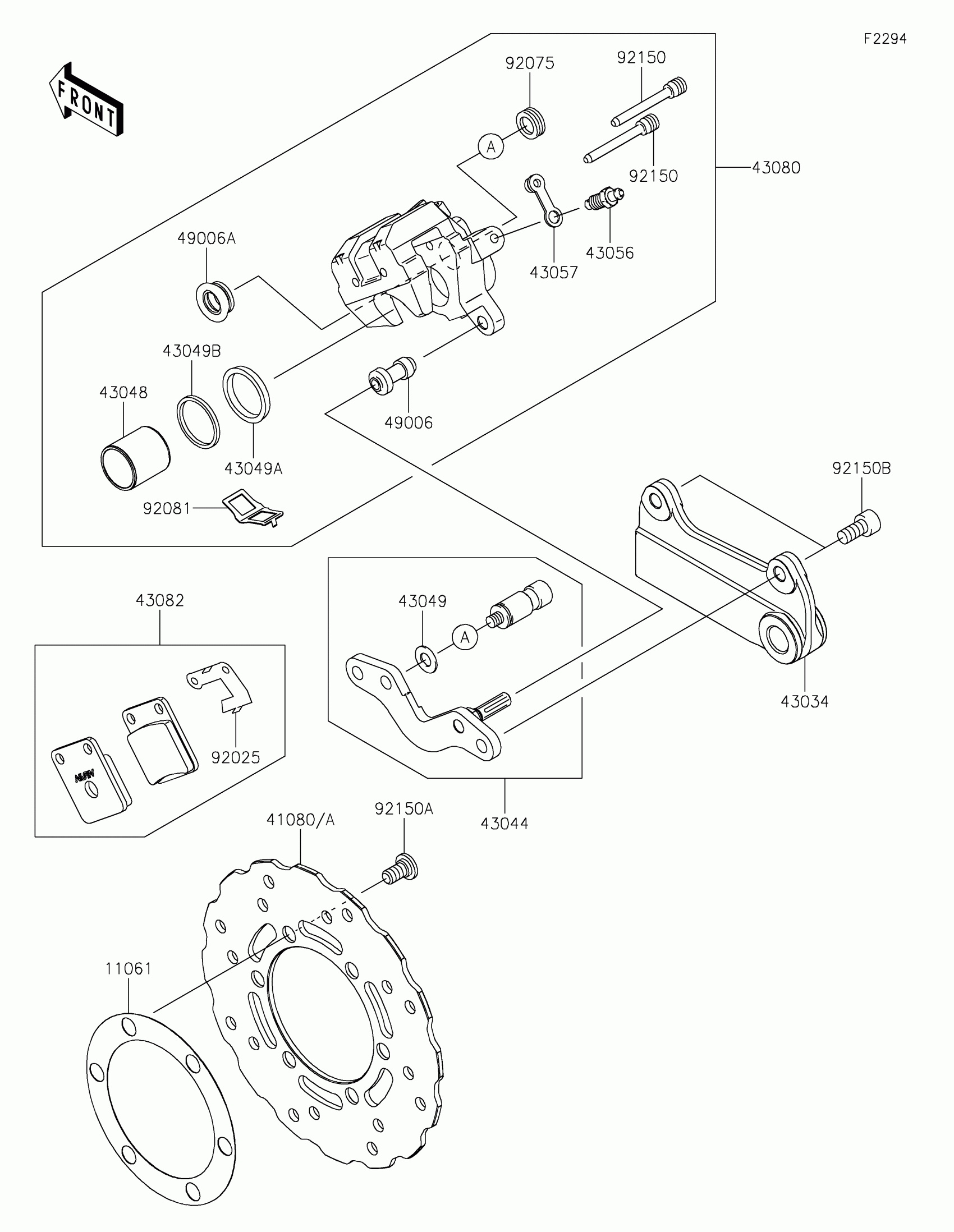

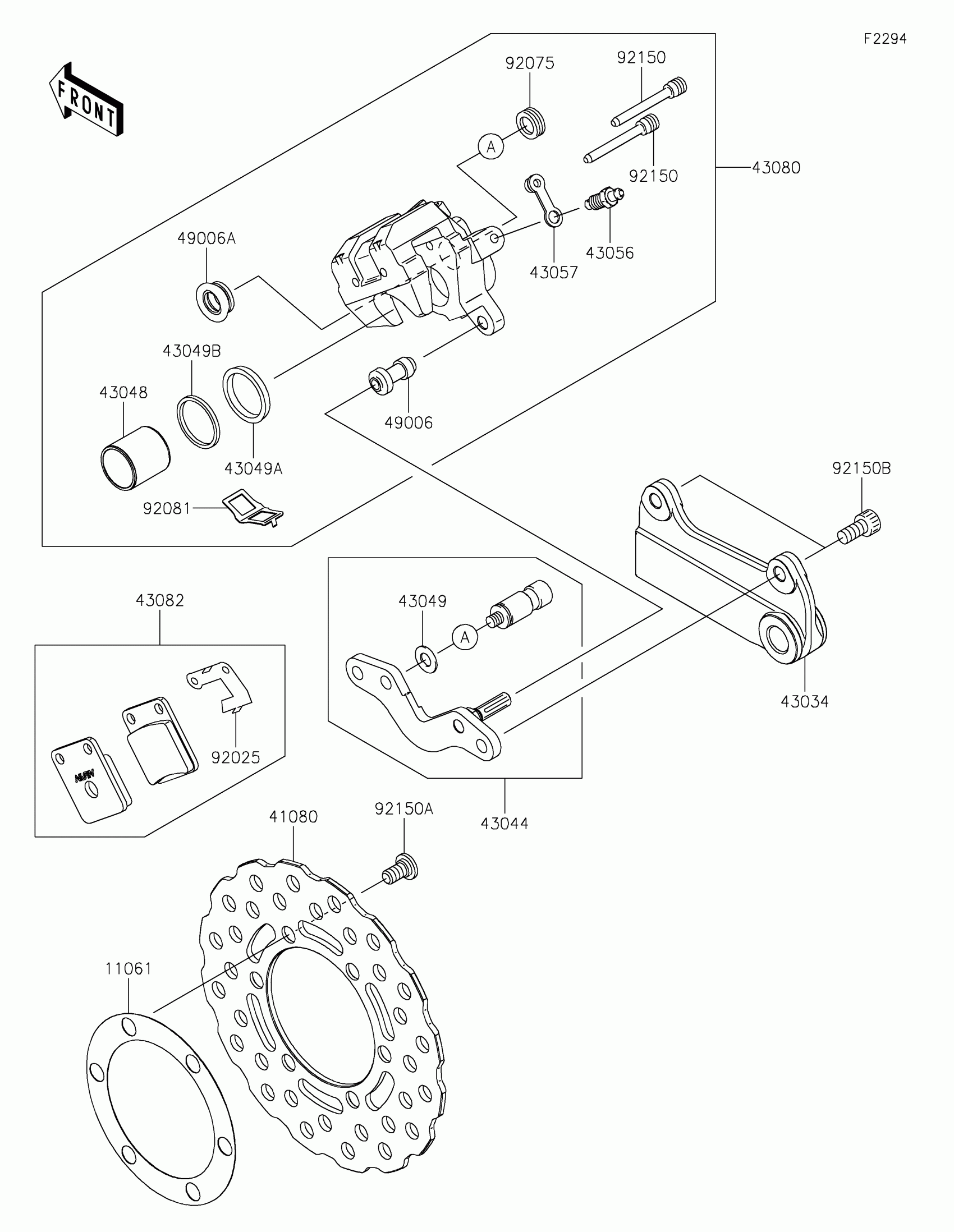

Kawasaki KLX®140R F Rear Brake Diagram

Description

Price

11061

GASKET

11061-1000

$11.64

41080

DISC,RR,190MM

41080-0673

$224.05

43034

HOLDER-BRAKE

43034-0123

$70.68

43044

HOLDER-COMP-CALIPER,RR

43044-1076

$50.69

43048

PISTON-CALIPER

43048-1090

$68.10

43049

PACKING

43049-1025

$4.80

43049A

PACKING,PISTON SEAL

43049-1060

$14.67

43049B

PACKING,PISTON SEAL

43049-1061

$8.04

43056

BREATHER-BRAKE

43056-0004

$12.83

43057

CAP-BREATHER

43057-1001

$3.73

43080

CALIPER-SUB-ASSY,RR

43080-0078

$129.45

43082

PAD-ASSY-BRAKE

43082-0170

$88.45

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1089

$5.64

92025

SHIM,PAD

92025-1817

$9.02

92075

DAMPER

92075-1414

$7.25

92081

SPRING,PAD

92081-1502

$8.31

92150

BOLT

92150-1144

$7.54

92150A

BOLT,DISC PLATE,8X15

92150-1811

$3.81

92150B

BOLT,SOCKET,8X16

92150-1840

$3.75
