2021 Kawasaki KLX®140R F Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2021 Kawasaki KLX®140R F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

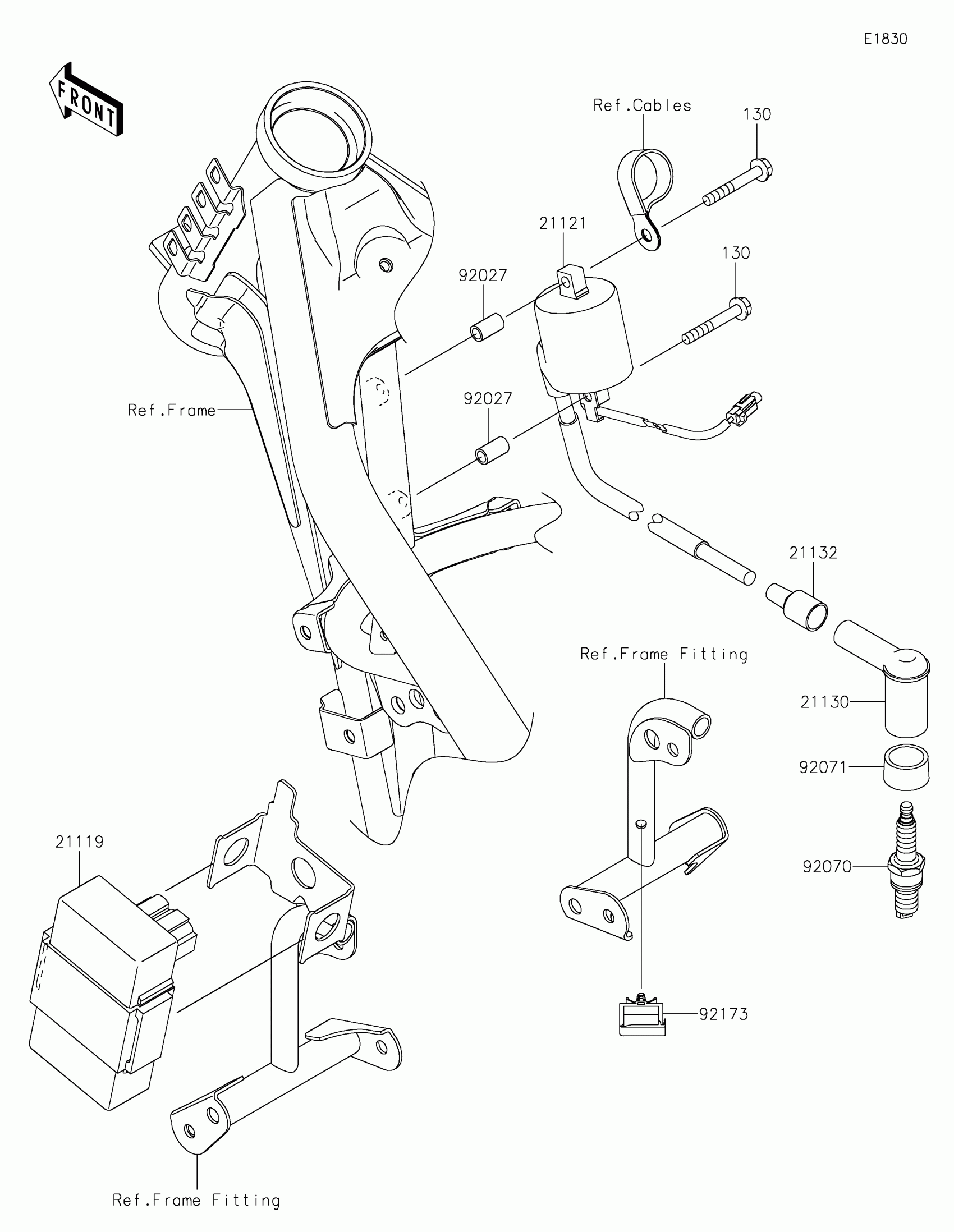

2021 Kawasaki KLX®140R F Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X35

130BA0535

1

$3.69

In stock

21119

IGNITER

21119-0594

1
Out of stock

21121

COIL-IGNITION

21121-0728

1
Out of stock

21130

CAP-SPARK PLUG

21130-1003

1
Out of stock

21132

GROMMET,HIGH TENSION

21132-005

1
Out of stock

92027

COLLAR,5.6X8X14.5

92027-1789

1
Out of stock

92070

PLUG-SPARK,CR7HSA

92070-0037

1
Out of stock

92071

GROMMET,SPARK PLUG CAP

92071-1015

1
Out of stock

92173

CLAMP

92173-1513

1
Out of stock
