2021 Kawasaki KLX®140R F Generator Diagram

← All diagrams

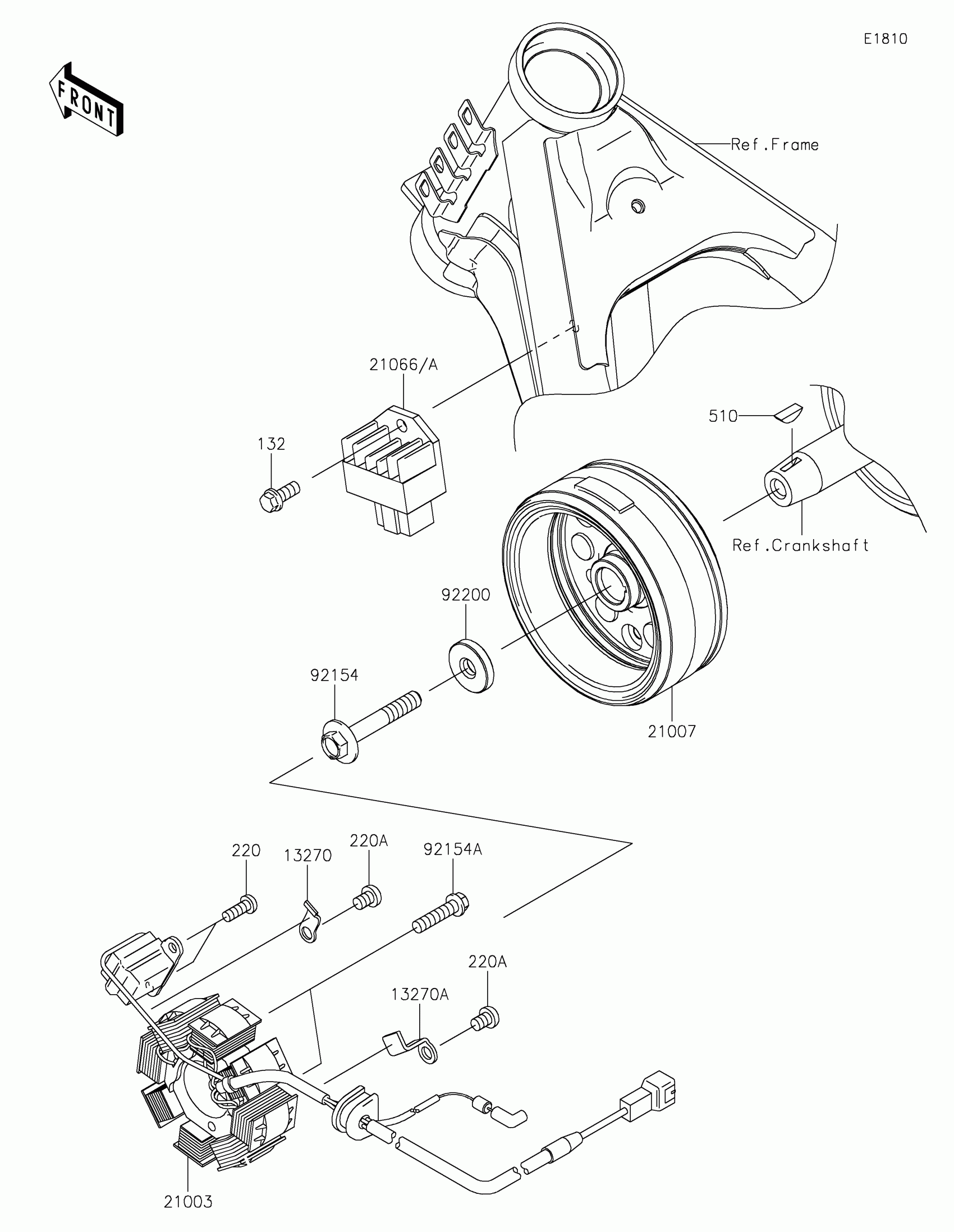

Find the part on the Generator diagram for your 2021 Kawasaki KLX®140R F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Kawasaki KLX®140R F Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.31

In stock

13270

PLATE

13270-1754

1
Out of stock

13270A

PLATE

13270-1961

1
Out of stock

21003

STATOR

21003-0116

1

$222.48

In stock

21007

ROTOR

21007-0105

1

$219.80

In stock

21066

REGULATOR-VOLTAGE

21066-0778

1

$115.65

In stock

220

1

$3.52

In stock

220A

SCREW-PAN-CROS,6X8

220AA0608

1

$0.63

In stock

510

KEY-WOODRUFF

510A3200

1

$2.17

In stock

92153

BOLT,8X50

92153-1135

1
Out of stock

92154

BOLT,FLANGED,6X25

92154-2154

1

$2.44

In stock

92200

WASHER,8.2X26X5

92200-1626

1
Out of stock
