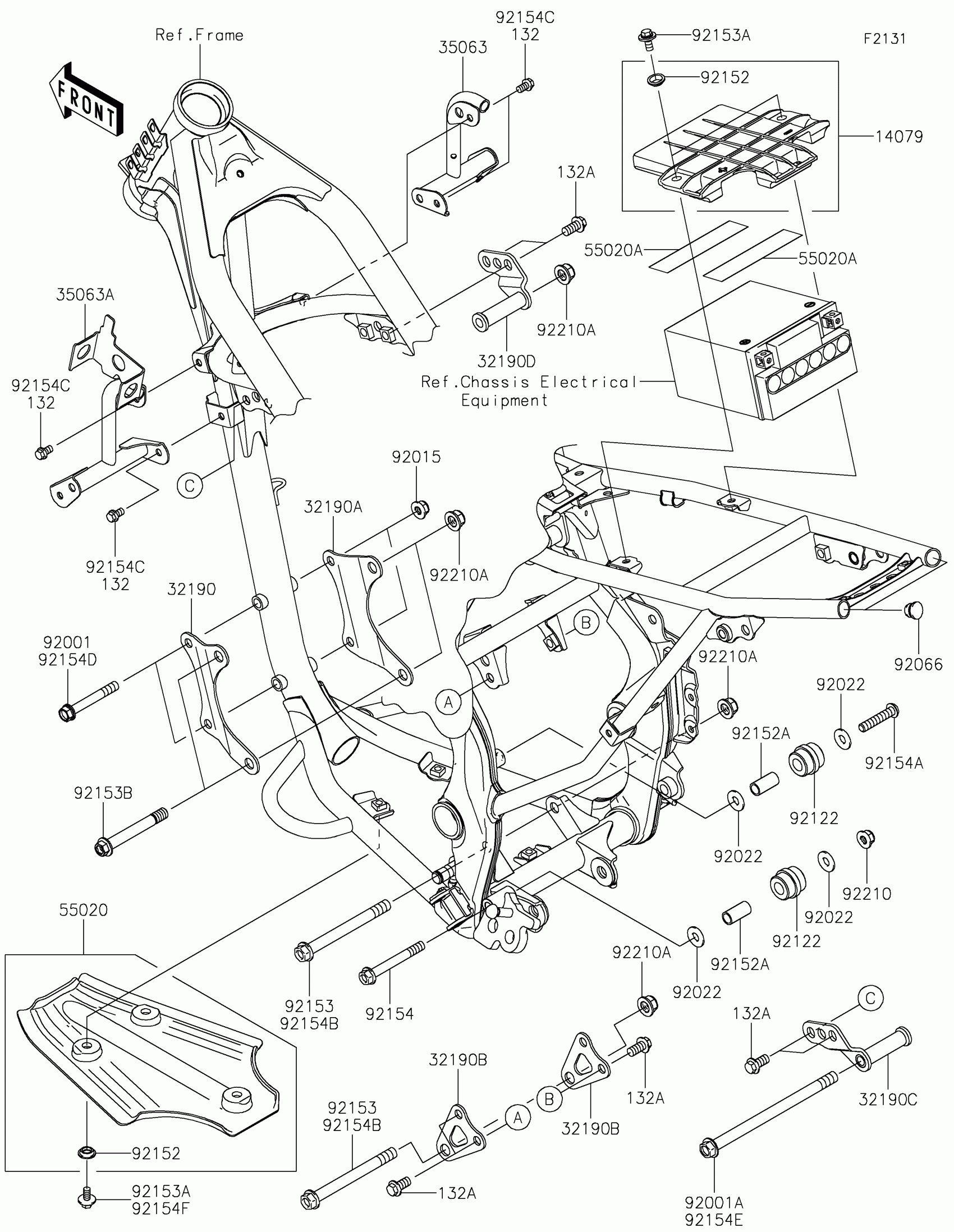

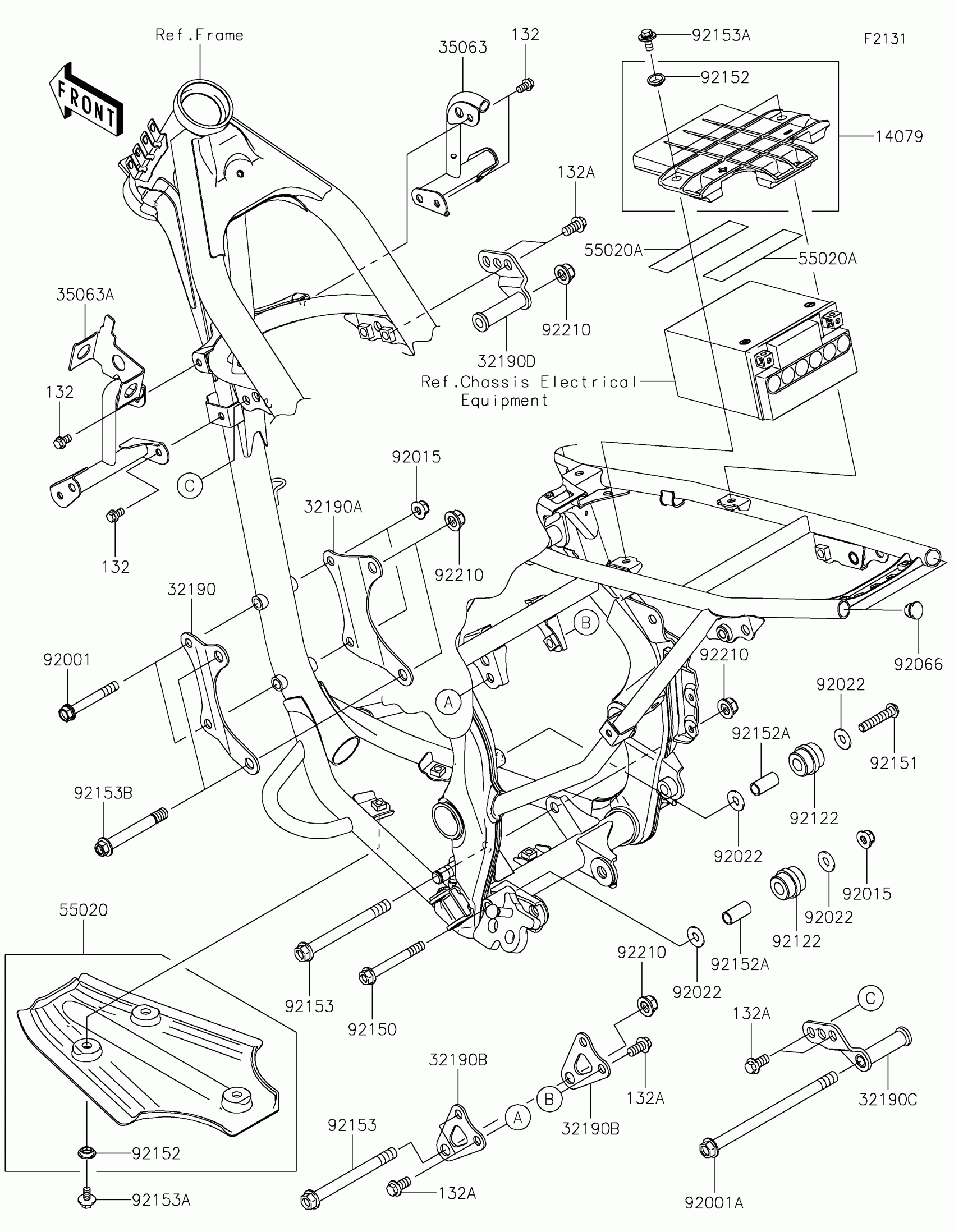

Kawasaki KLX®140R F Frame Fittings Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

132A

BOLT-FLANGED-SMALL,8X16

132BA0816

$4.32

14079

HOLDER-ASSY,BATTERY

14079-0031

$39.29

32190

BRACKET-ENGINE,FR,LH

32190-0308

$15.20

32190A

BRACKET-ENGINE,FR,RH

32190-0309

$15.20

32190B

BRACKET-ENGINE,RR

32190-0310

$5.65

32190C

BRACKET-ENGINE,HEAD,LH

32190-0311

$23.84

32190D

BRACKET-ENGINE,HEAD,RH

32190-0312

$23.84

35063

STAY,SHROUD,RH,P.SILVER

35063-1340-458

$45.50

35063A

STAY,SHROUD,LH,P.SILVER

35063-1341-458

$59.98

55020

GUARD

55020-0409

$25.24

55020A

GUARD

55020-0429

$7.69

92001

BOLT,FLANGED,8X60

92001-1581

$5.14

92001A

BOLT,FLANGED,10X160

92001-1653

$17.35

92015

NUT,8MM

92015-1432

$6.57

92022

WASHER,8.5X20X1.6

92022-1561

$4.31

92066

PLUG,FRAME END,12X13

92066-1034

$4.65

92122

ROLLER,GUIDE CHAIN

92122-0041

$11.20

92150

BOLT,FLANGED,8X65

92150-1036

$5.29

92151

BOLT,SOCKET,8X40

92151-1205

$3.72

92152

COLLAR,8.8X11.2X4

92152-0909

$5.65

92152A

COLLAR,9.5X12.5X25

92152-0943

$7.83

92153

BOLT,FLANGED,10X105

92153-0614

$8.58

92153A

BOLT,FLANGED,6X14

92153-0936

$2.97

92153B

BOLT,FLANGED,10X77

92153-1613

$11.93

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$10.28
