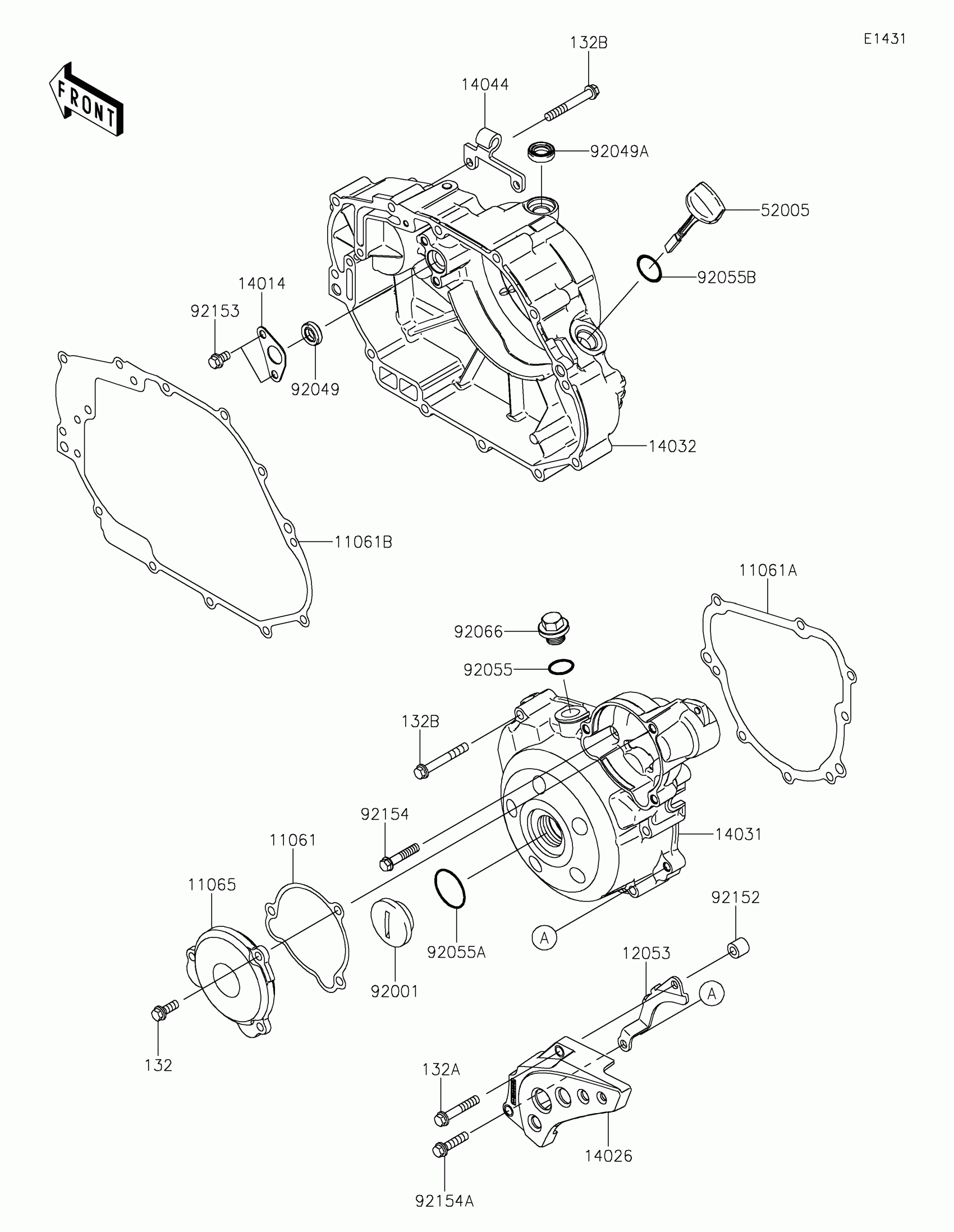

Kawasaki KLX®140R Engine Cover(s) Diagram
#
Description
Price
11061
GASKET
11061-0300
$6.68
11061A
GASKET,GENERATOR COVER
11061-0400
$6.29
11061B
GASKET,CLUTCH COVER
11061-0401
$11.10
11065
CAP
11065-0801
$34.36
12053
GUIDE-CHAIN
12053-0133
$7.69
14014
PLATE-POSITION
14014-1153
$0.39
14026
COVER-CHAIN
14026-0084
$33.54
14031
COVER-GENERATOR
14031-0116
$104.12
14032
COVER-CLUTCH
14032-0116
$160.28
14044
HOLDER-CABLE
14044-0572
$7.24
52005
GAUGE,OIL LEVEL
52005-0724
$7.25
92049
SEAL-OIL,12X20X5.5
92049-0150
$5.29
92049A
SEAL-OIL
92049-0812
$7.37
92055
RING-O,14.8X2.4
92055-0194
$5.29
92055A
RING-O,25.7X2.4
92055-0763
$5.65
92055B
RING-O,20X2
92055-0764
$3.90
92066
PLUG,14X10
92066-0724
$1.62
92066A
PLUG,GENERATOR COVER CAP
92066-1565
$7.27
92152
COLLAR,6.5X12X11
92152-2893
$5.65
92153
BOLT,6X10
92153-1140
$0.67
92154
BOLT,FLANGED,6X16
92154-0460
$1.83
92154A
BOLT
92154-1134
$3.71
92154B
BOLT,FLANGED,6X25
92154-1156
$1.97
92154C
BOLT,FLANGED,6X30
92154-1159
$2.67
92154D
BOLT,FLANGED,6X45
92154-4024
$4.45
