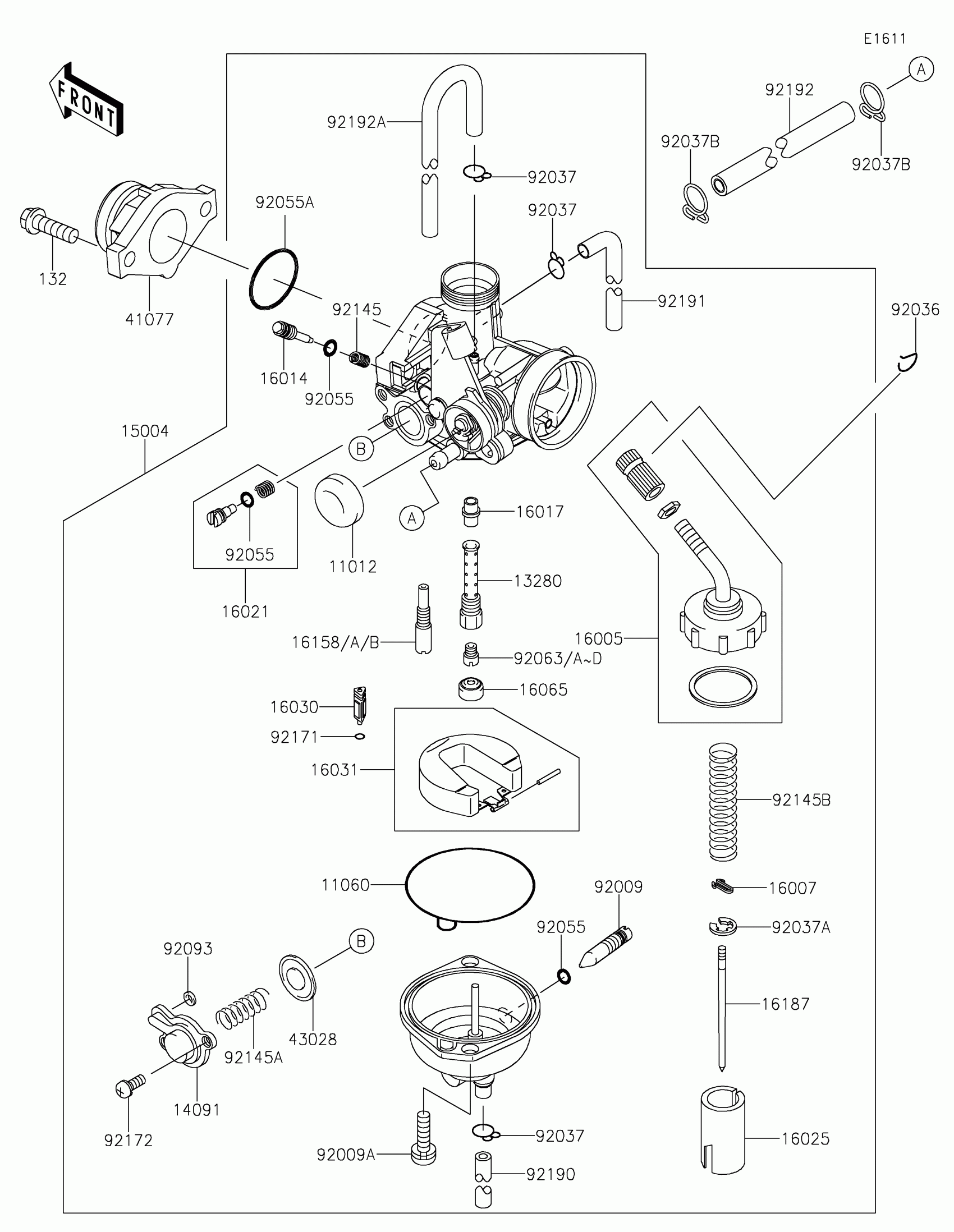

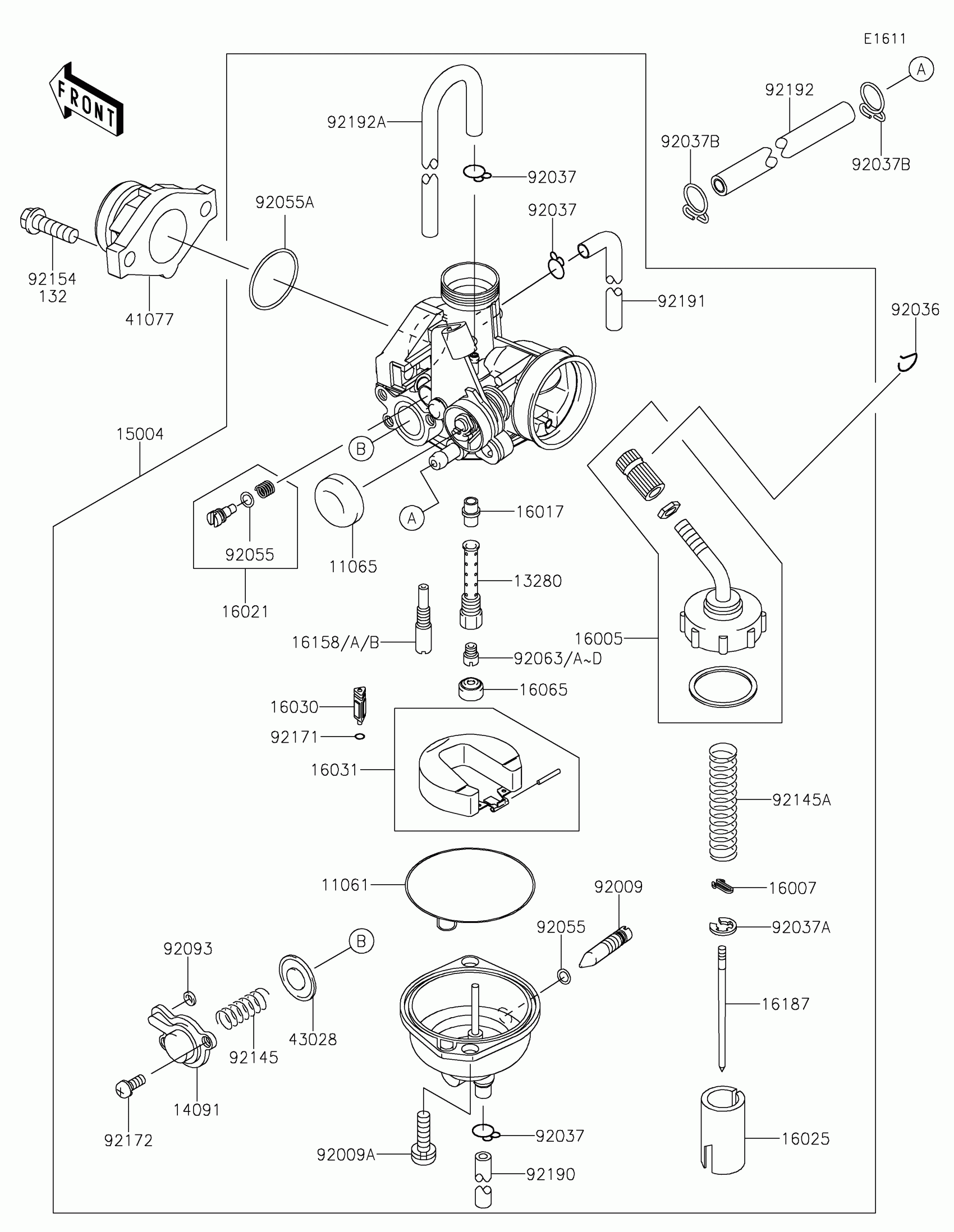

Kawasaki KLX®140R Carburetor Diagram

#

Description
Price

11012

CAP,CHOKE

11012-1940

Unavailable

11060

GASKET,FLOAT CHAMBER

11060-1700

Unavailable

13280

HOLDER,NEEDLE JET

13280-0286

$30.17

14091

COVER

14091-0285

$28.84

15004

CARBURETOR-ASSY,PB20

15004-0024

$388.44

16005

TOP-CHAMBER

16005-1091

$23.76

16007

SEAT-SPRING

16007-1103

$7.27

16014

SCREW-PILOT AIR

16014-0011

$19.06

16017

JET-NEEDLE

16017-0014

$36.91

16021

SCREW-THROTTLE STOP

16021-1203

$15.87

16025

VALVE-THROTTLE

16025-0015

$99.97

16030

VALVE-FLOAT

16030-0003

$57.22

16031

FLOAT

16031-0004

$37.51

16065

HOLDER-CARBURETOR,JET

16065-1106

$13.97

16158

JET-SLOW,#35

16158-0004

Unavailable

16158A

JET-SLOW,#40

16158-0005

Unavailable

16158B

JET-SLOW,#38

16158-1063

$14.90

16187

NEEDLE-JET,NNAA

16187-0283

$36.91

41077

ADAPTER

41077-0038

$31.86

43028

DIAPHRAGM

43028-0003

$30.76

92009

SCREW,DRAIN

92009-1057

$7.84

92009A

SCREW

92009-1750

$4.39

92036

RING-SNAP

92036-018

$3.89

92037

CLAMP,TUBE

92037-1142

$4.31

92037A

CLAMP,JET NEEDLE

92037-1401

$4.31

92037B

CLAMP

92037-1712

$5.00

92055

RING-O

92055-1053

$4.69

92055A

RING-O

92055-1541

$2.78

92063

JET-MAIN,#90

92063-0013

Unavailable

92063A

JET-MAIN,#92

92063-0014

Unavailable

92063B

JET-MAIN,#95

92063-0015

$15.06

92063C

JET-MAIN,#98

92063-0016

Unavailable

92063D

JET-MAIN,#100

92063-0017

Unavailable

92093

SEAL-"U"RING

92093-1046

$6.51

132

BOLT-FLANGED-SMALL,6X20

132BC0620

$1.34

92145

SPRING

92145-0004

$6.02

92145A

SPRING

92145-0217

$7.69

92145B

SPRING

92145-0610

$10.21

92171

CLAMP

92171-1837

$3.90

92172

SCREW

92172-0165

$3.90

92190

TUBE,3.5X6.5X240

92190-1218

$7.60

92191

TUBE,3.5X6.5X298

92191-1142

$11.66

92192

TUBE,5X10X150

92192-0477

$26.91

92192A

TUBE,3.5X6.5X18/320

92192-0690

$13.48
