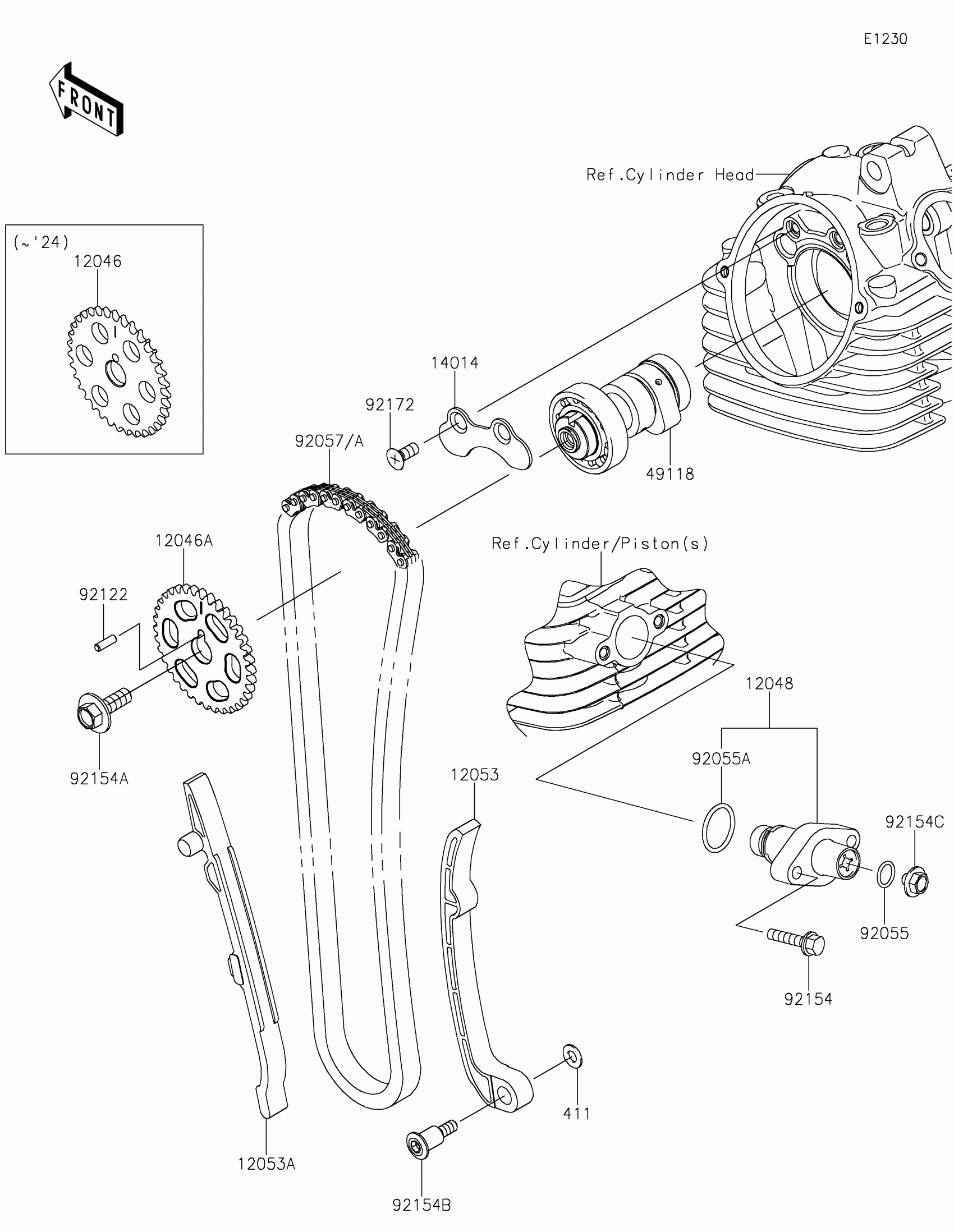

Kawasaki KLX®140R Camshaft(s)/Tensioner Diagram

Description

Price

12046

SPROCKET,36T

12046-0084

$50.75

12046A

SPROCKET,36T

12046-0661

$48.87

12048

TENSIONER-ASSY

12048-0124

$29.67

12053

GUIDE-CHAIN,RR

12053-0198

$43.39

12053A

GUIDE-CHAIN,FR

12053-0215

$43.39

14014

PLATE-POSITION

14014-0577

$5.61

49118

CAMSHAFT-COMP

49118-1284

$211.69

92055

RING-O,9.8X2.4

92055-0060

$2.61

92055A

RING-O,23.2X2.4

92055-1721

$6.31

92057A

CHAIN,CAM

92057-0844

$36.38

92122

ROLLER

92122-0011

$1.28

92154

BOLT,FLANGED,6X25

92154-1144

$0.95

92154A

BOLT,FLANGED,8X23

92154-1162

$1.83

92154B

BOLT,SOCKET

92154-1163

$2.26

92154C

BOLT,FLANGED,6X6

92154-1229

$2.61

92172

SCREW,6X14

92172-0832

$0.74

411

WASHER-PLAIN,6MM

411AA0600

$2.92
