Description

Price

12053

GUIDE-CHAIN

12053-0116

$23.43

12053A

GUIDE-CHAIN

12053-0118

$23.43

132

BOLT-FLANGED-SMALL,6X8

132BA0608

$2.49

13270

PLATE

13270-1899

$7.27

13272

PLATE,CHAIN GUIDE

13272-0406

$18.57

132A

BOLT-FLANGED-SMALL,6X45

132BA0645

$4.45

132B

BOLT-FLANGED-SMALL,6X50

132BA0650

$3.69

32085

STOPPER

32085-0138

$7.75

33001

ARM-COMP-SWING

33001-0123

$546.33

33032

SHAFT-SWING ARM,14X227

33032-0030

$30.76

33040

ADJUSTER-CHAIN

33040-0032

$6.83

42036

SLEEVE,PIVOT,L=197.8

42036-0045

$46.79

55020

GUARD,CHAIN

55020-0336

$26.91

92001

BOLT,8X46

92001-1179

$18.83

92009

SCREW,5X10

92009-1828

$2.46

92015

NUT,FLANGED,8MM

92015-1014

$0.65

92015A

NUT,14MM

92015-1407

$9.91

92046

BEARING-NEEDLE,BM202726

92046-1110

$23.45

92049

SEAL-OIL,ARM

92049-1109

$9.28

92151

BOLT,SOCKET,6X18

92151-1149

$7.68

92210

NUT,POP,6MM,L=15

92210-1397

$5.48

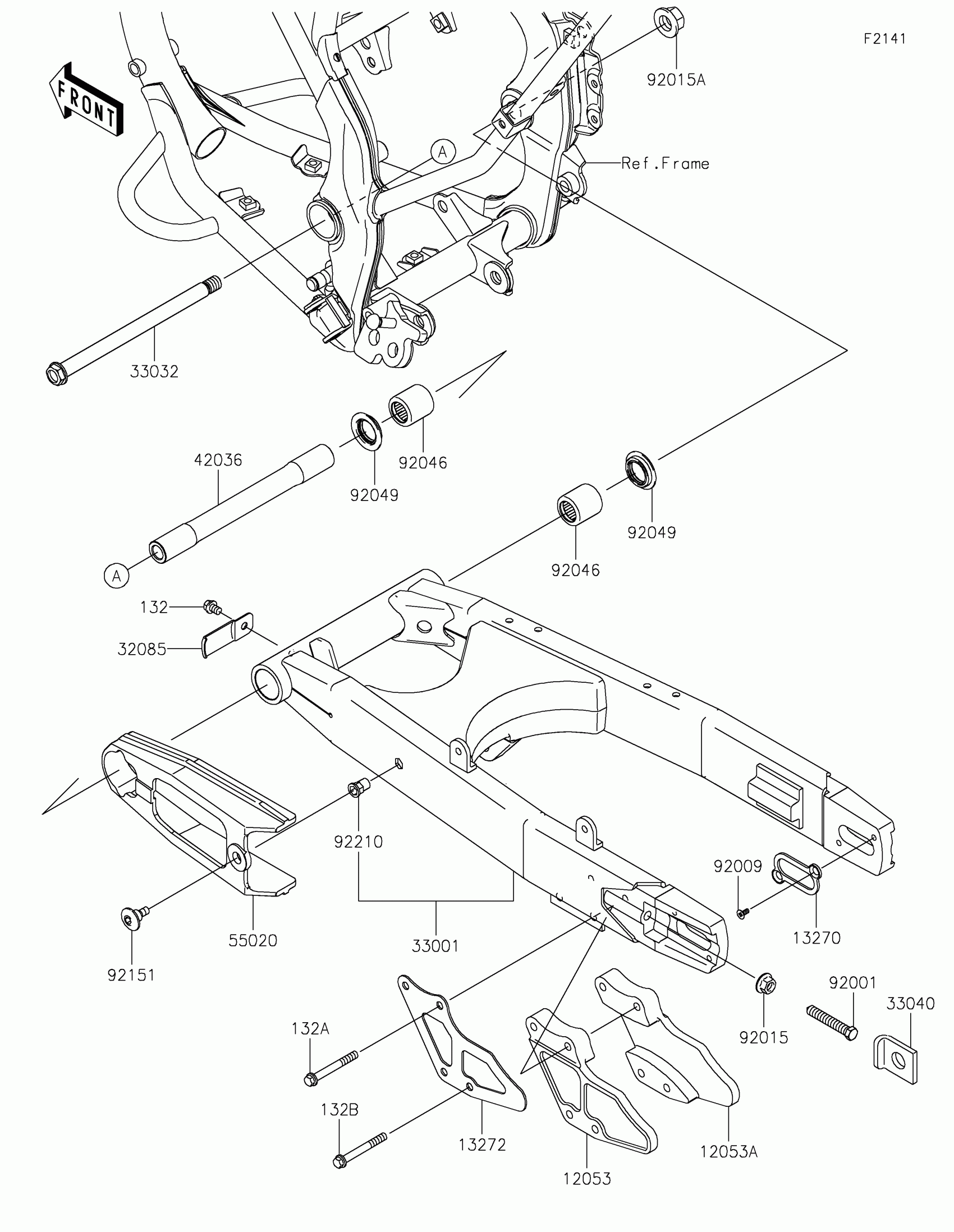

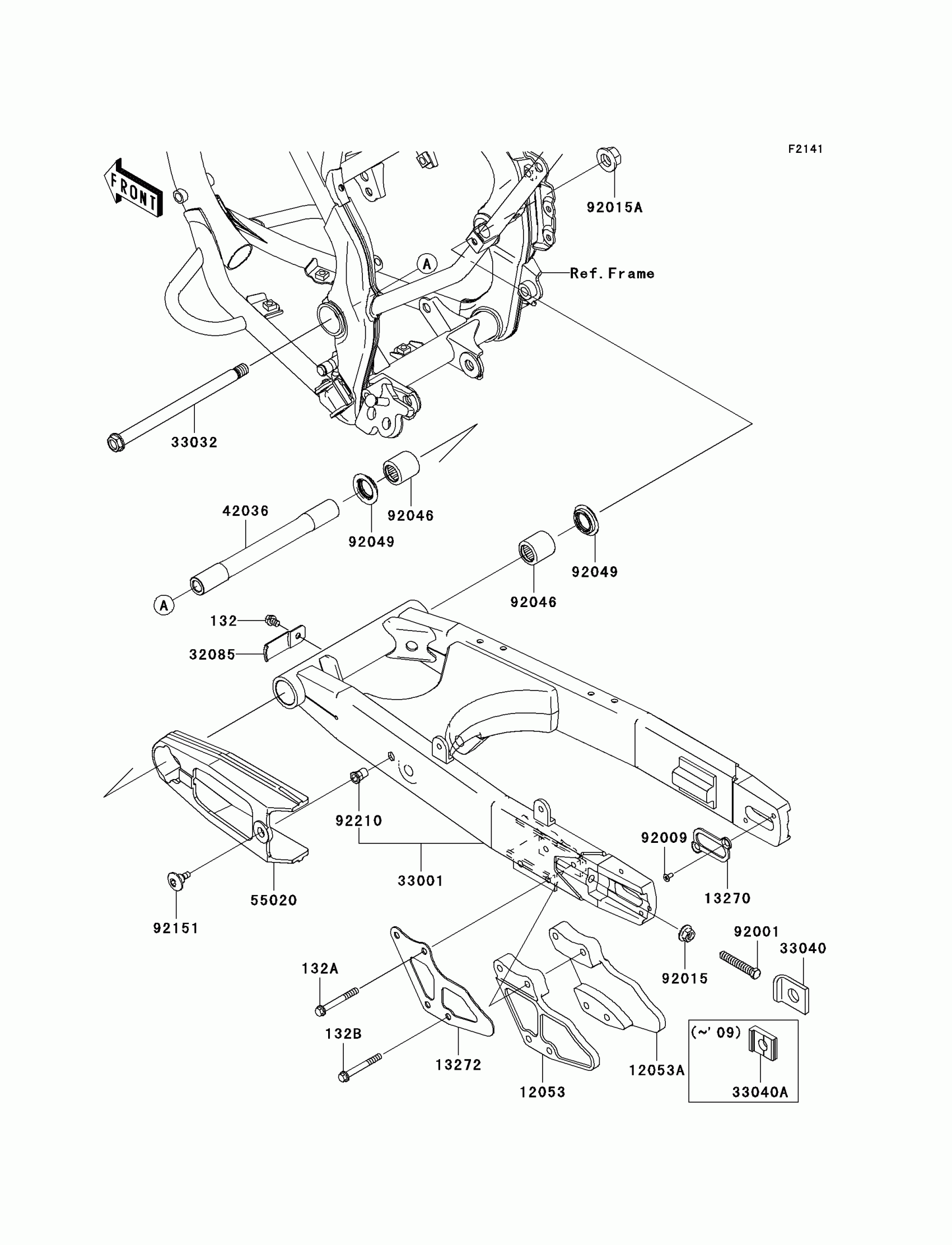

Kawasaki KLX®140L Swingarm Diagram

GUIDE-CHAIN

GUIDE-CHAIN

BOLT-FLANGED-SMALL,6X8

PLATE

PLATE,CHAIN GUIDE

BOLT-FLANGED-SMALL,6X45

BOLT-FLANGED-SMALL,6X50

STOPPER

ARM-COMP-SWING

SHAFT-SWING ARM,14X227

ADJUSTER-CHAIN

SLEEVE,PIVOT,L=197.8

GUARD,CHAIN

BOLT,8X46

SCREW,5X10

NUT,FLANGED,8MM

NUT,14MM

BEARING-NEEDLE,BM202726

SEAL-OIL,ARM

BOLT,SOCKET,6X18

NUT,POP,6MM,L=15
