Description

Price

132

BOLT-FLANGED-SMALL,6X30

132BD0630

$3.67

223

SCREW-PAN-WS-CROS,5X10

223AA0510

$0.43

13091

HOLDER

13091-1992

$7.60

13194

CLUTCH-ONEWAY

13194-0005

Unavailable

13216

GEAR-COMP,FREE WHEEL

13216-0035

Unavailable

21039

BRUSH

21039-0007

$60.56

21039A

BRUSH

21039-0008

$25.00

21040

SPRING-BRUSH

21040-0004

$16.56

21163

STARTER-ELECTRIC

21163-0043

Unavailable

26006

FUSE,BLADE,10A,RED

26006-1007

$4.96

26011

WIRE-LEAD

26011-0164

Unavailable

27010

SWITCH,MAGNETIC

27010-0086

Unavailable

39076

LIMITER,STARTER IDLE GEAR

39076-0020

$183.19

39184

BRACKET-ASSY

39184-0010

$37.85

59051

GEAR-SPUR,IDLE

59051-1304

$89.00

92002

BOLT,SOCKET,6X16

92002-1778

$5.00

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92022

WASHER,10.2X20X0.5

92022-1649

$4.31

92022A

WASHER,22.3X35X1.6

92022-212

$9.91

92055

RING-O

92055-1276

$9.91

92055A

RING-O,4.5X2.0

92055-1370

$4.69

92055B

RING-O

92055-1550

$9.91

92071

GROMMET

92071-0037

Unavailable

92153

BOLT

92153-1914

$9.35

92200

WASHER,SET

92200-0407

$3.90

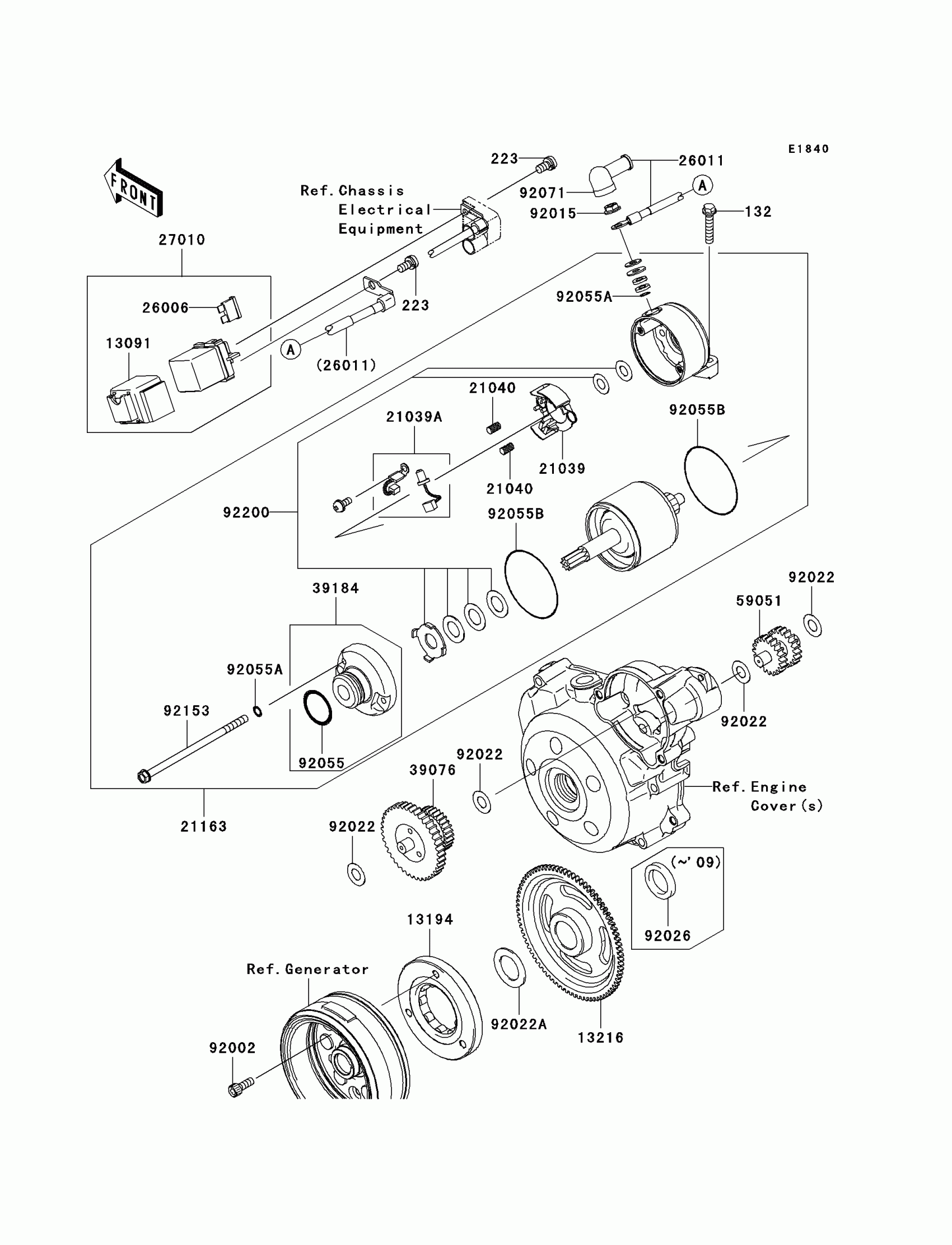

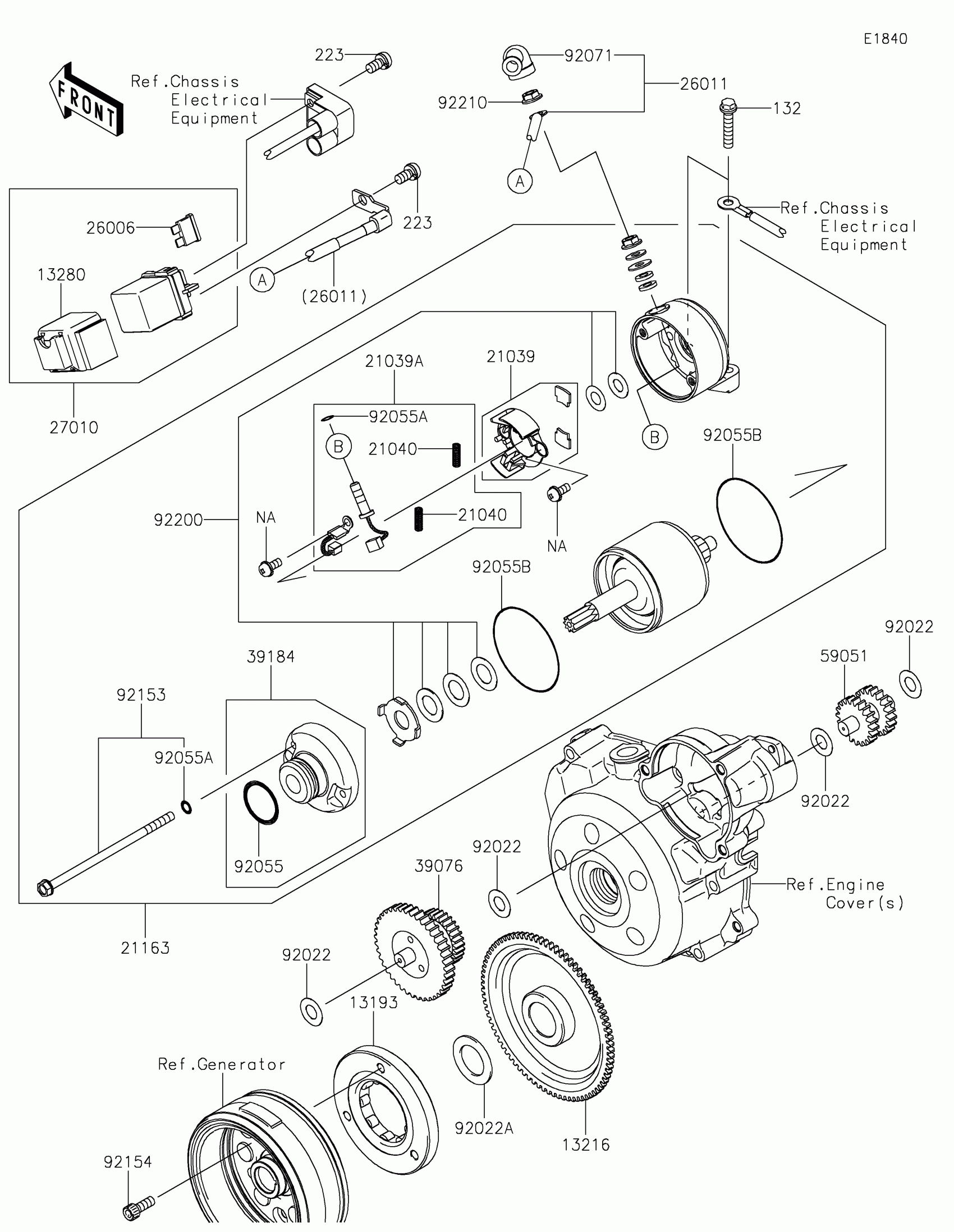

Kawasaki KLX®140L Starter Motor Diagram

BOLT-FLANGED-SMALL,6X30

SCREW-PAN-WS-CROS,5X10

HOLDER

CLUTCH-ONEWAY

GEAR-COMP,FREE WHEEL

BRUSH

BRUSH

SPRING-BRUSH

STARTER-ELECTRIC

FUSE,BLADE,10A,RED

WIRE-LEAD

SWITCH,MAGNETIC

LIMITER,STARTER IDLE GEAR

BRACKET-ASSY

GEAR-SPUR,IDLE

BOLT,SOCKET,6X16

NUT,FLANGED,6MM

WASHER,10.2X20X0.5

WASHER,22.3X35X1.6

RING-O

RING-O,4.5X2.0

RING-O

GROMMET

BOLT

WASHER,SET
