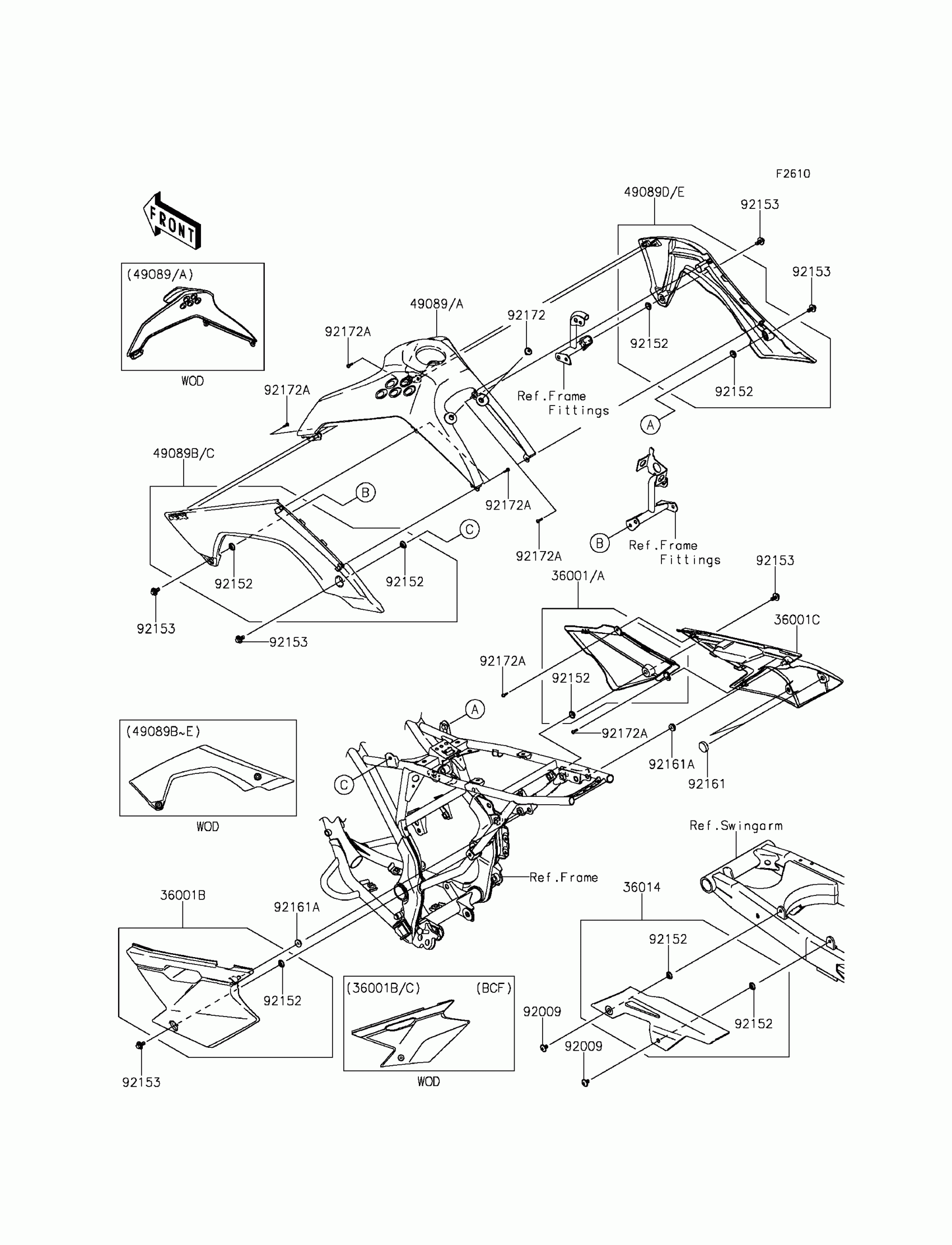

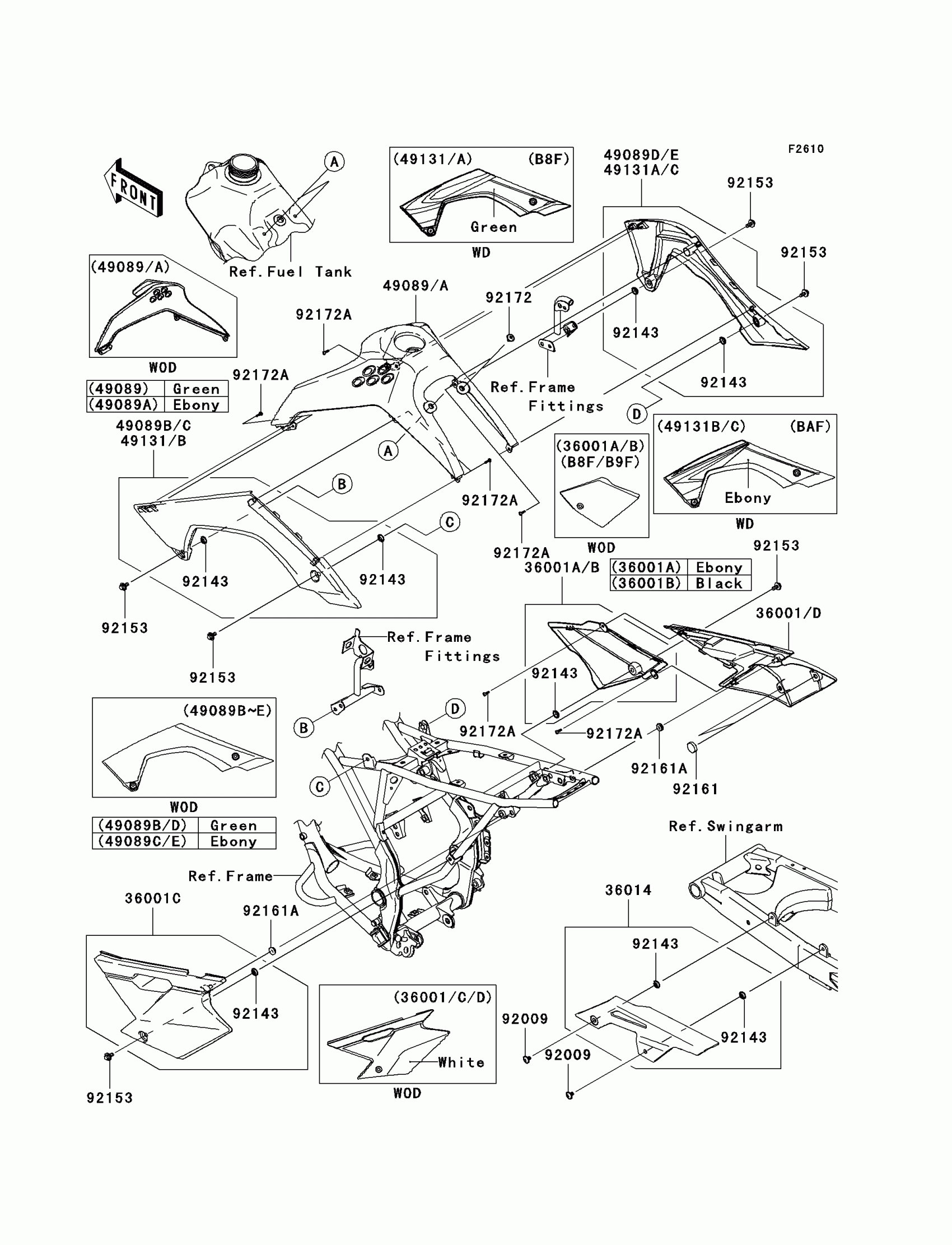

Kawasaki KLX®140L Side Covers/Chain Cover Diagram

Description

Price

36001A

COVER-SIDE,FR,RH,EBONY

36001-0125-6C

$26.75

36001C

COVER-SIDE,RR,LH,B.WHITE

36001-0154-266

$48.23

36001D

COVER-SIDE,RR,RH,B.WHITE

36001-0156-266

$48.23

36014

CASE-CHAIN

36014-0044

$17.48

49089A

SHROUD-ENGINE,UPP,EBONY

49089-0052-6C

$73.99

49089B

SHROUD-ENGINE,LH,L.GREEN

49089-0053-290

$36.62

49089D

SHROUD-ENGINE,RH,L.GREEN

49089-0054-290

$36.79

92009

SCREW,6X10

92009-1729

$0.22

92143

COLLAR

92143-1196

$4.69

92153

BOLT,FLANGED,6X14

92153-0936

$2.97

92161

DAMPER

92161-0336

$5.65

92161A

DAMPER

92161-0631

$7.37

92172

SCREW,6X10

92172-0098

$2.80

92172A

SCREW,TAPPING,4X12

92172-0233

$1.34
