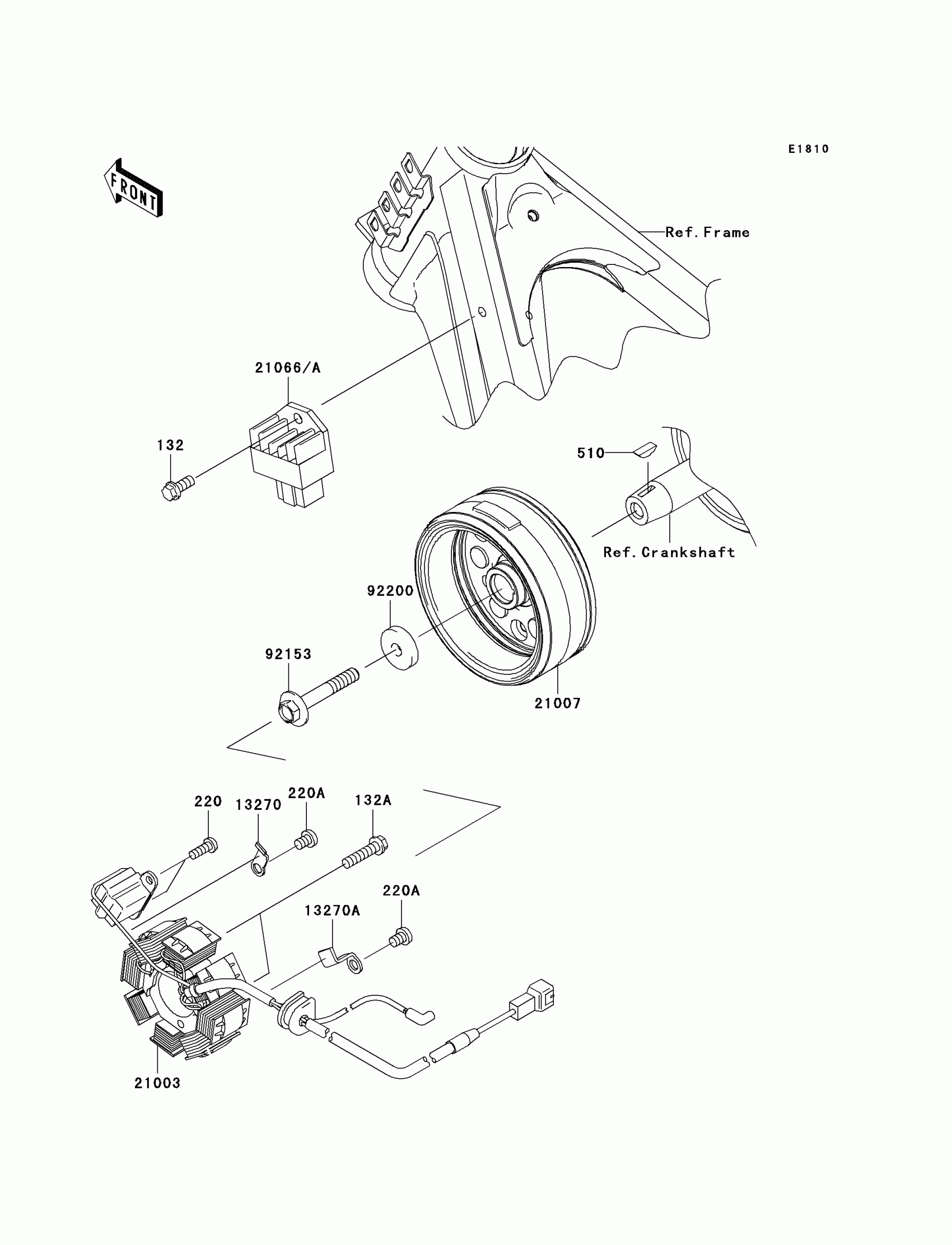

Kawasaki KLX®140L Generator Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.46

13270

PLATE

13270-1754

$0.85

13270A

PLATE

13270-1961

$0.85

21003

STATOR

21003-0116

$217.87

21007

ROTOR

21007-0105

$215.24

21066

REGULATOR-VOLTAGE

21066-0046

$113.25

220

SCREW-PAN-CROS,5X14

220AA0514

$4.43

220A

SCREW-PAN-CROS,6X8

220AA0608

$0.59

510

KEY-WOODRUFF

510A3200

$2.70

92153

BOLT,8X50

92153-1135

$2.06

92154

BOLT,FLANGED,6X25

92154-2154

$3.02

92200

WASHER,8.2X26X5

92200-1626

$1.86
