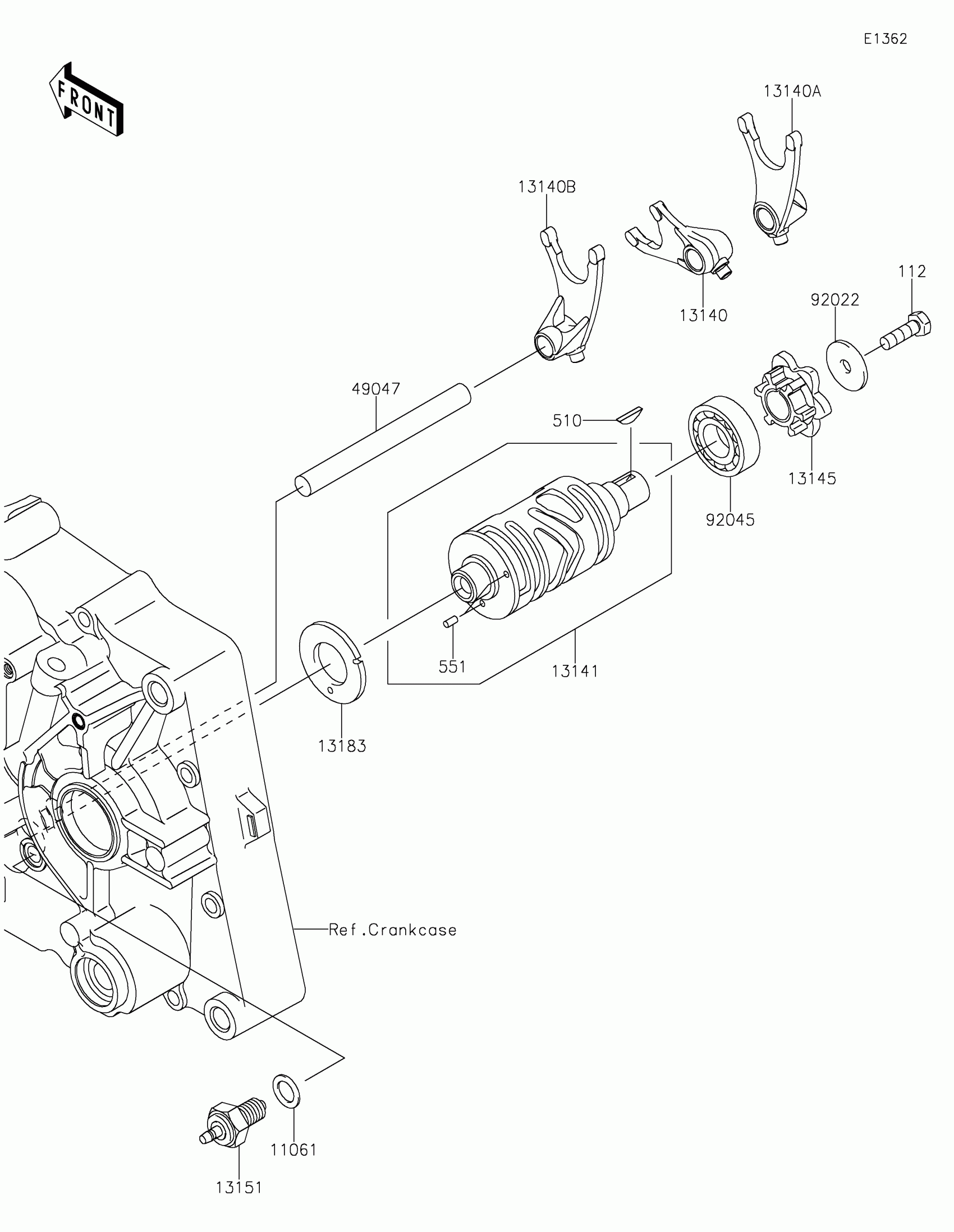

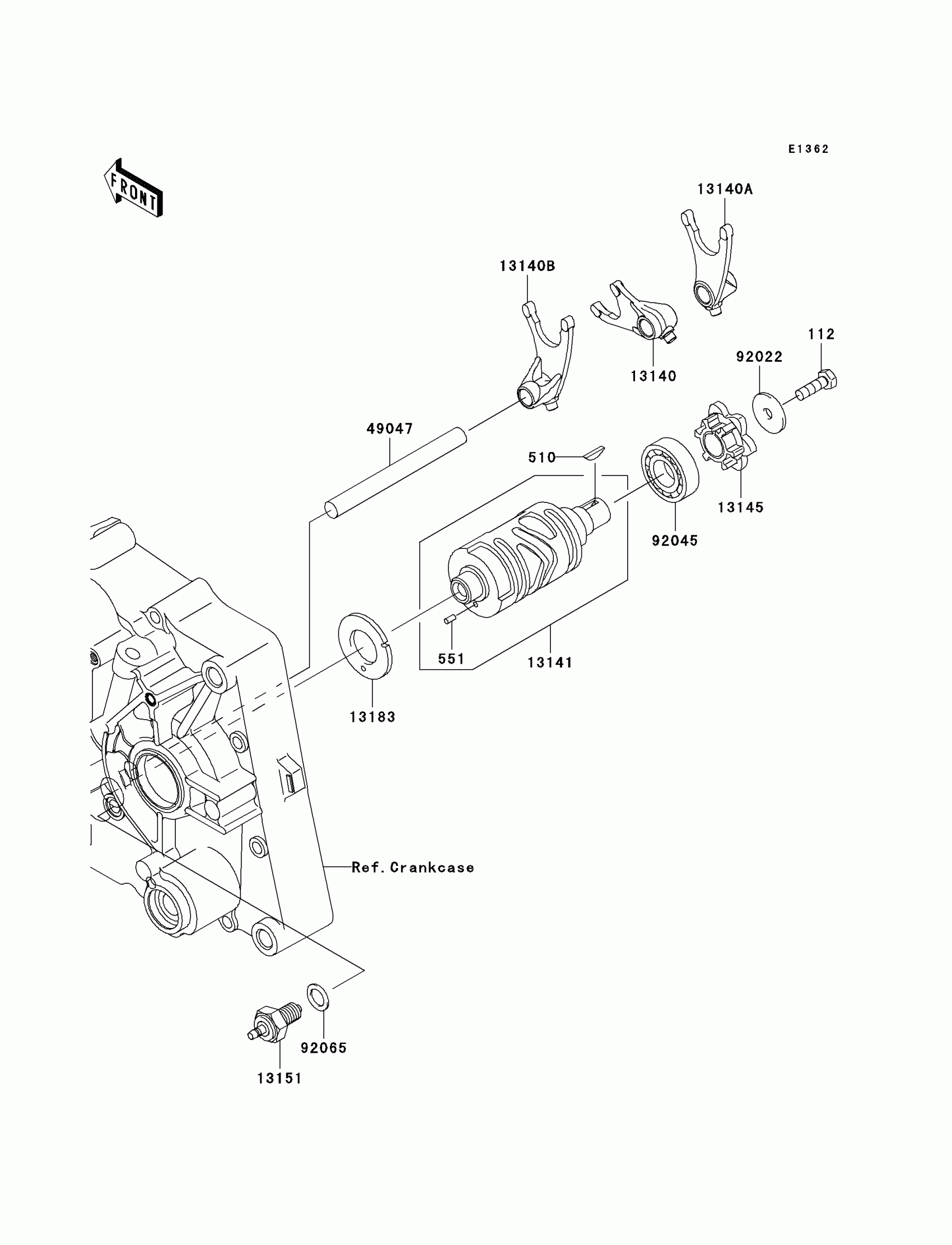

2011 Kawasaki KLX®140L Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2011 Kawasaki KLX®140L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Kawasaki KLX®140L Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

112

BOLT-UPSET,6X20

112CA0620

1

$4.25

In stock

510

KEY-WOODRUFF

510A3200

1

$2.17

In stock

551

PIN-DOWEL,3X6

551A0306

1

$1.19

In stock

13140

FORK-SHIFT,INPUT

13140-0051

1

$49.52

In stock

13140A

1

$49.52

In stock

13140B

1

$49.52

In stock

13141

DRUM-CHANGE

13141-0047

1

$81.07

In stock

13145

CAM-CHANGE DRUM

13145-1084

1

$44.93

In stock

13151

SWITCH-COMP,NEUTRAL

13151-1099

1

$3.58

In stock

13183

PLATE,CHANGE

13183-1066

1

$15.14

In stock

49047

ROD-SHIFT

49047-1094

1

$4.86

In stock

92022

WASHER,6.5X24X2

92022-1690

1

$3.12

In stock

92045

1

$21.00

In stock

92065

GASKET,10.5X16X1

92065-058

1

$3.16

In stock
