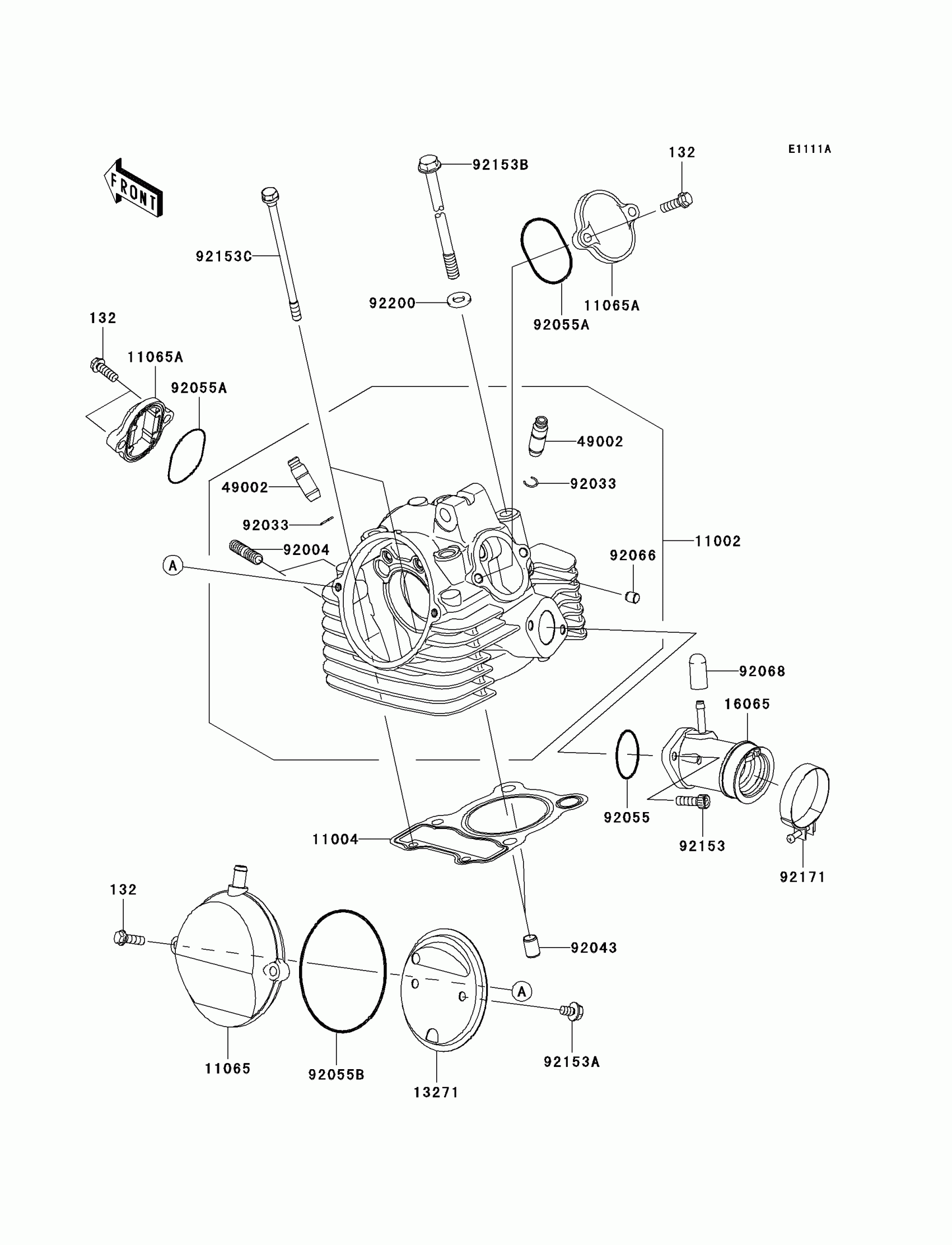

Kawasaki KLX®140L Cylinder Head(BAF/BBF) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$2.49

11002

HEAD-ASSY-CYLINDER

11002-0061

$615.17

11004

GASKET-HEAD

11004-0065

$14.64

11065

CAP

11065-0212

$55.25

11065A

CAP,VALVE ADJUSTING

11065-0252

$15.06

13271

PLATE,BREATHER

13271-1844

$1.45

16065

HOLDER-CARBURETOR

16065-0054

$53.22

49002

GUIDE-VALVE

49002-0019

Unavailable

92004

STUD,8X22

92004-1217

$5.65

92033

RING-SNAP

92033-1247

$3.91

92043

PIN,8.2X10X14

92043-1264

$0.64

92055

RING-O,32MM

92055-1256

$13.08

92055A

RING-O,ADJUST CAP

92055-1655

$8.68

92055B

RING-O,86X1.9

92055-1687

$7.24

92066

PLUG,OIL LINE,7.2X8

92066-1012

$6.51

92068

PLUG,12X25

92068-006

$4.26

92153

BOLT,6X20

92153-0481

$0.79

92153A

BOLT,6X10

92153-1140

$0.67

92153B

BOLT,8X201

92153-1141

$4.13

92153C

BOLT,FLANGED,6X110

92153-1970

$10.30

92171

CLAMP

92171-0691

$12.98

92200

WASHER,8.2X17X2.3

92200-1631

$0.49
