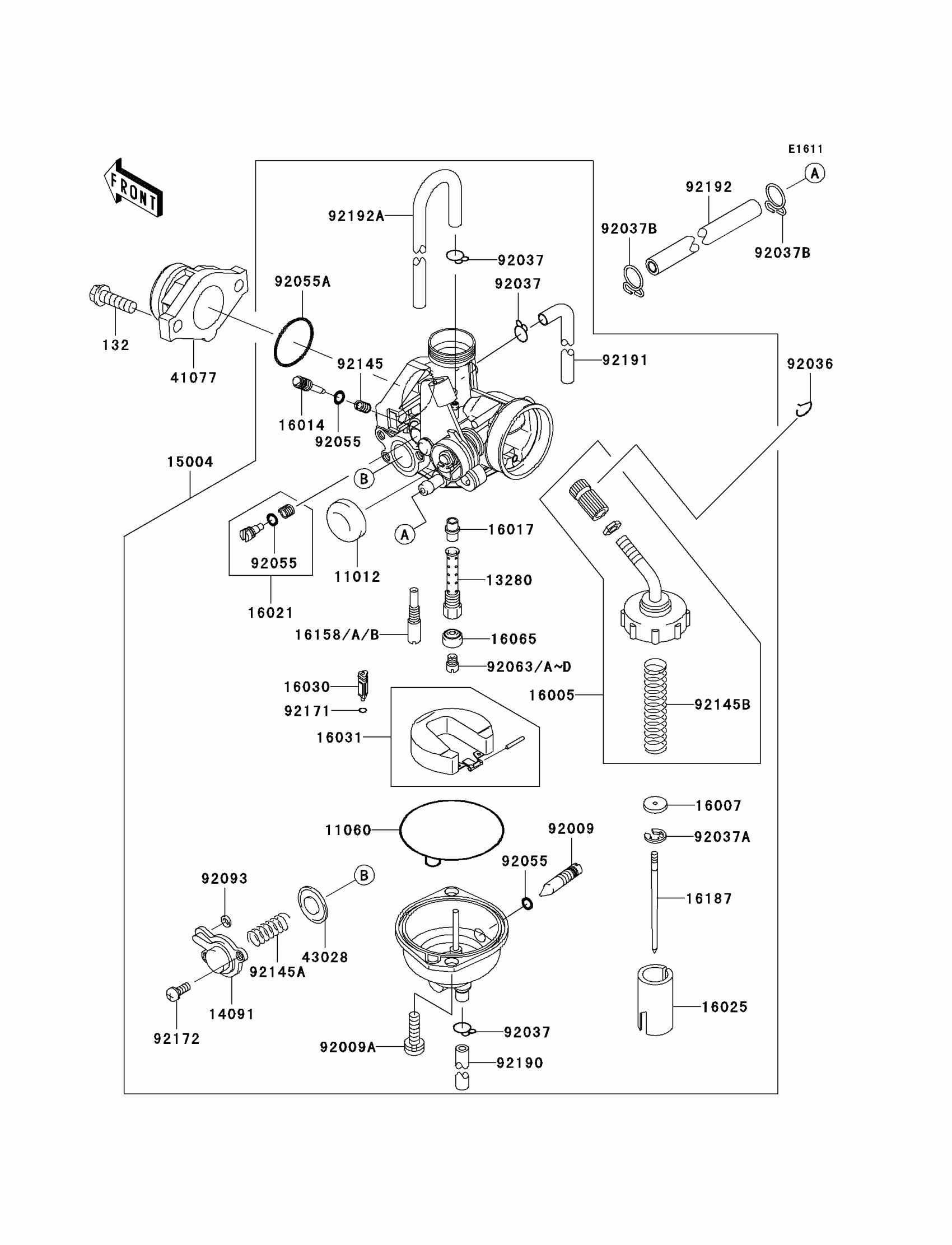

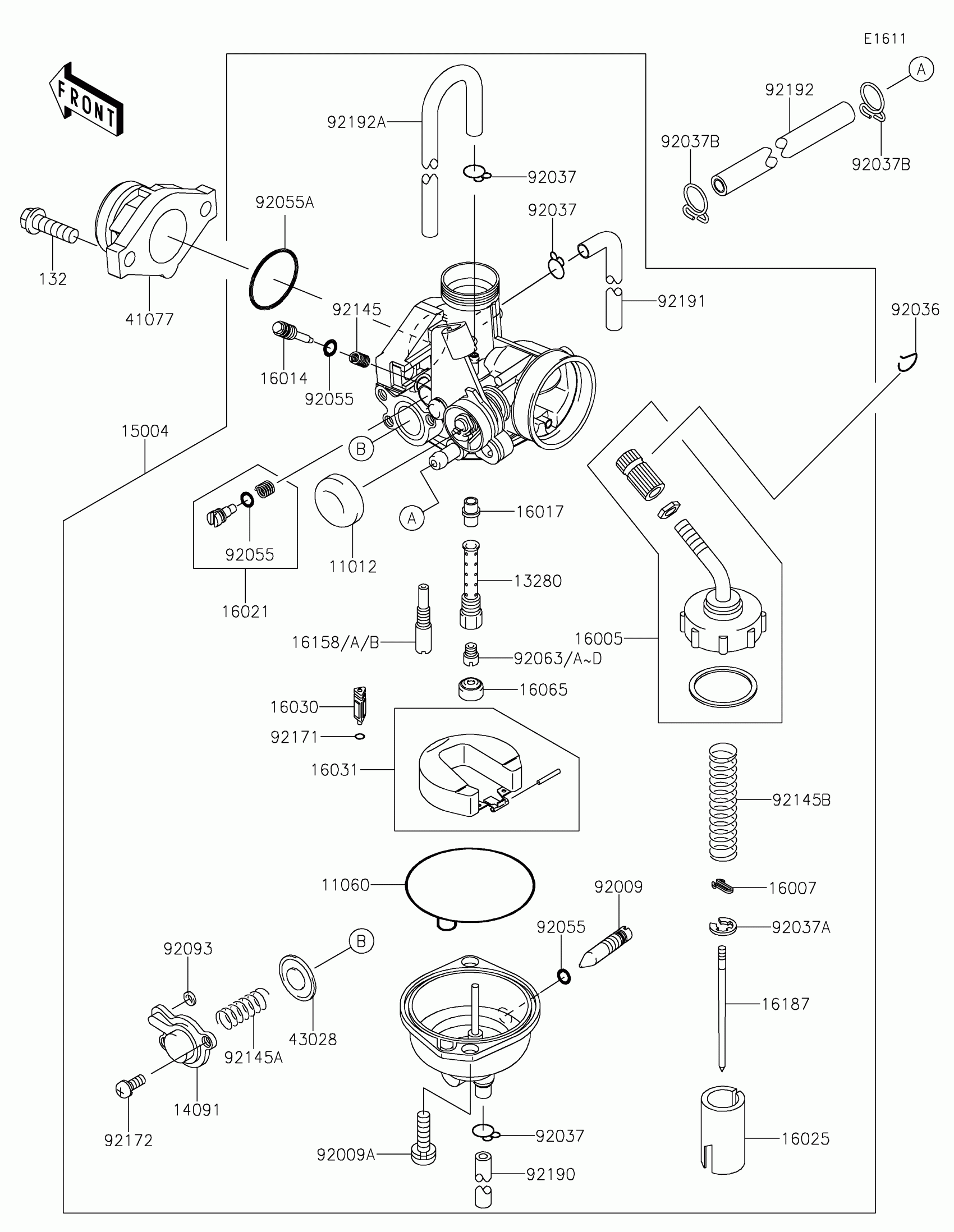

Kawasaki KLX®140L Carburetor Diagram
#
11012
CAP,CHOKE
11012-1940
Unavailable
11060
GASKET,FLOAT CHAMBER
11060-1700
Unavailable
13280
HOLDER,NEEDLE JET
13280-0286
$30.17
14091
COVER
14091-0285
$28.84
15004
CARBURETOR-ASSY,PB20
15004-0024
$388.44
16005
TOP-CHAMBER
16005-1091
$23.76
16007
SEAT-SPRING
16007-1103
$7.27
16014
SCREW-PILOT AIR
16014-0011
$19.06
16017
JET-NEEDLE
16017-0014
$36.91
16021
SCREW-THROTTLE STOP
16021-1203
$15.87
16025
VALVE-THROTTLE
16025-0015
$99.97
16030
VALVE-FLOAT
16030-0003
$57.22
16031
FLOAT
16031-0004
$37.51
16065
HOLDER-CARBURETOR,JET
16065-1106
$13.97
16158
JET-SLOW,#35
16158-0004
Unavailable
16158A
JET-SLOW,#40
16158-0005
Unavailable
16158B
JET-SLOW,#38
16158-1063
$14.90
16187
NEEDLE-JET,NNAA
16187-0283
$36.91
41077
ADAPTER
41077-0038
$31.86
43028
DIAPHRAGM
43028-0003
$30.76
92009
SCREW,DRAIN
92009-1057
$7.84
92009A
SCREW
92009-1750
$4.39
92036
RING-SNAP
92036-018
$3.89
92037
CLAMP,TUBE
92037-1142
$4.31
92037A
CLAMP,JET NEEDLE
92037-1401
$4.31
92037B
CLAMP
92037-1712
$5.00
92055
RING-O
92055-1053
$4.69
92055A
RING-O
92055-1541
$2.78
92063
JET-MAIN,#90
92063-0013
Unavailable
92063A
JET-MAIN,#92
92063-0014
Unavailable
92063B
JET-MAIN,#95
92063-0015
$15.06
92063C
JET-MAIN,#98
92063-0016
Unavailable
92063D
JET-MAIN,#100
92063-0017
Unavailable
92093
SEAL-"U"RING
92093-1046
$6.51
132
BOLT-FLANGED-SMALL,6X20
132BC0620
$1.34
92145
SPRING
92145-0004
$6.02
92145A
SPRING
92145-0217
$7.69
92145B
SPRING
92145-0610
$10.21
92171
CLAMP
92171-1837
$3.90
92172
SCREW
92172-0165
$3.90
92190
TUBE,3.5X6.5X240
92190-1218
$7.60
92191
TUBE,3.5X6.5X298
92191-1142
$11.66
92192
TUBE,5X10X150
92192-0477
$26.91
92192A
TUBE,3.5X6.5X18/320
92192-0690
$13.48
