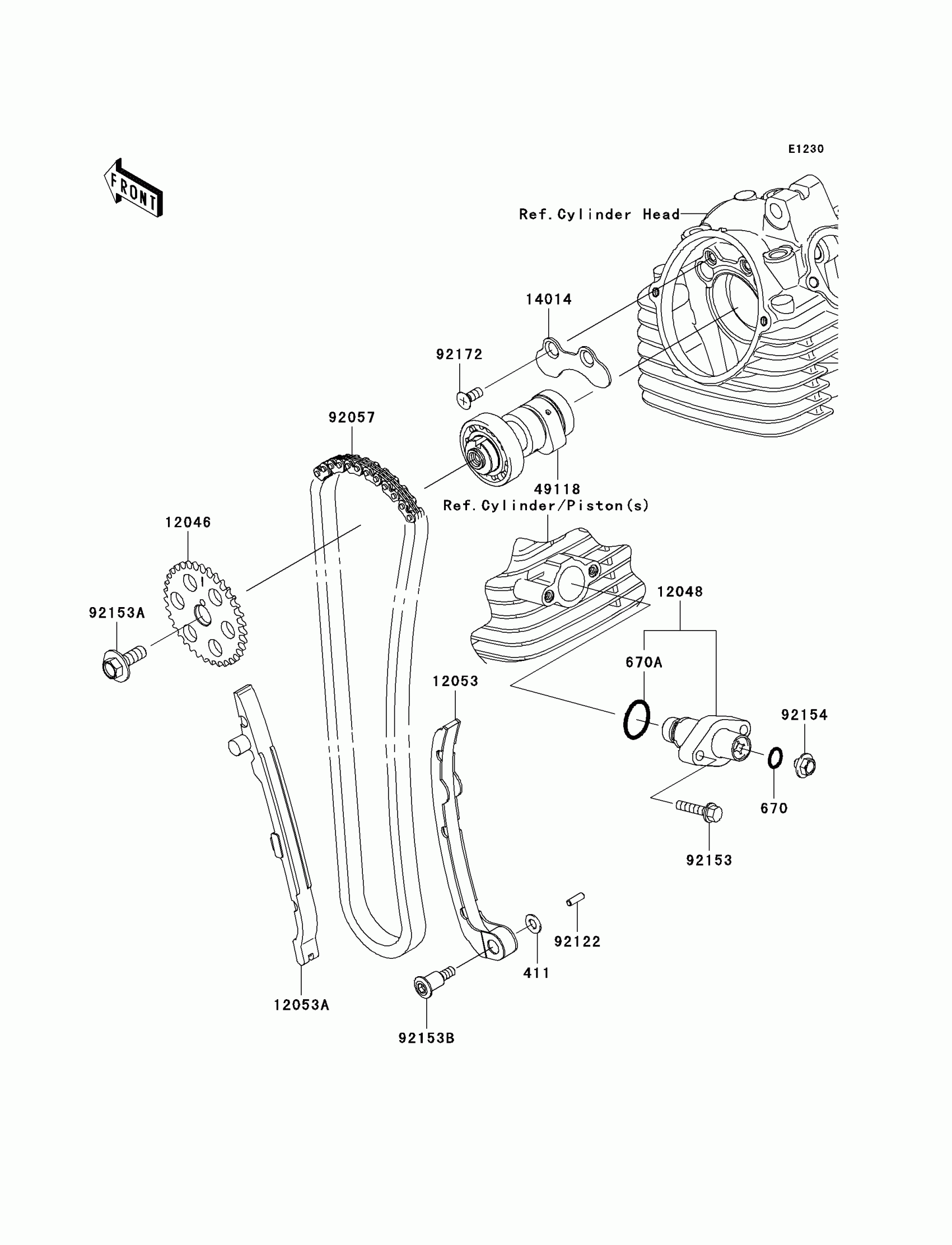

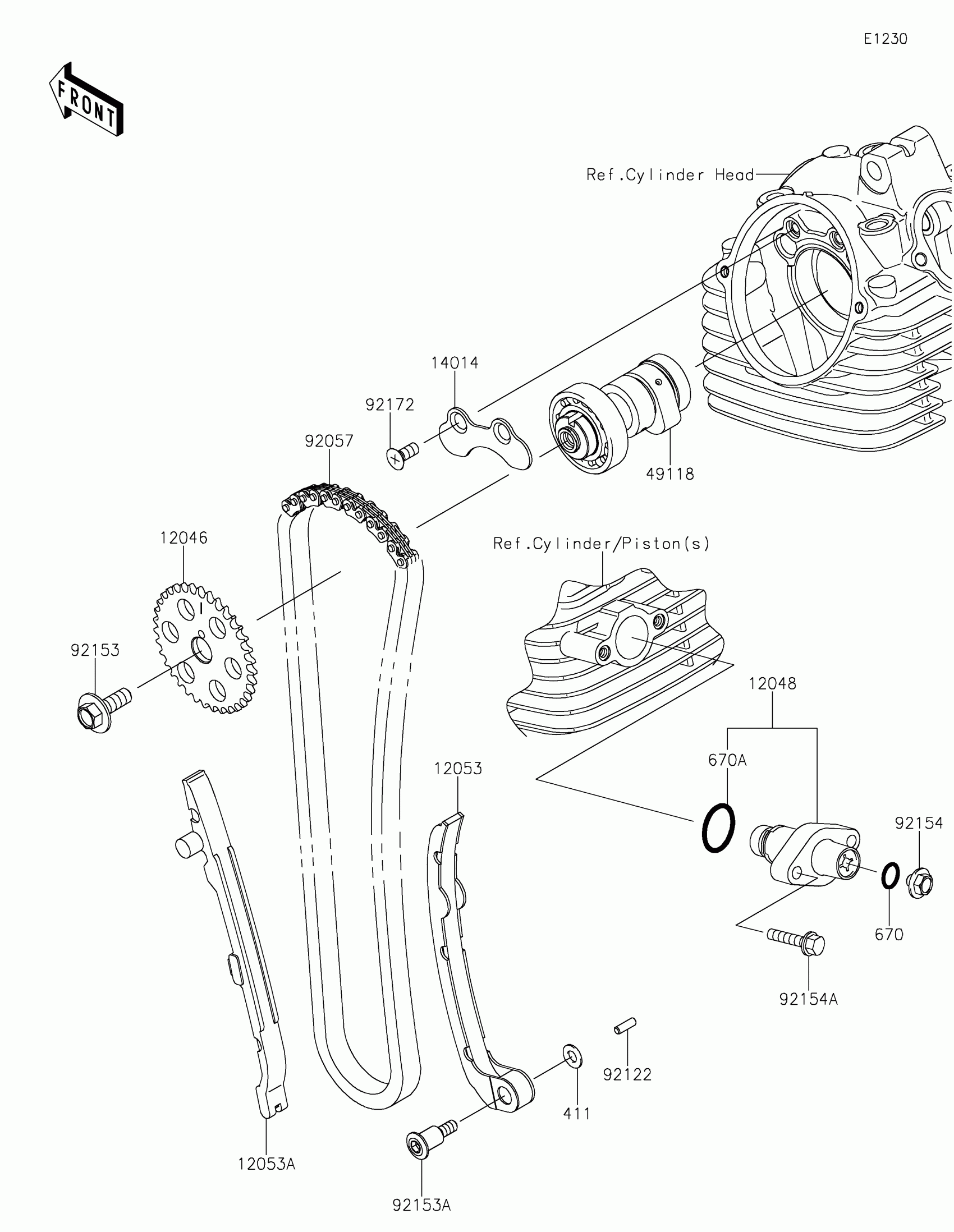

Kawasaki KLX®140L Camshaft(s)/Tensioner Diagram

Description

Price

411

WASHER-PLAIN,6MM

411AA0600

$2.06

670

O RING,10MM

670D2010

$1.41

670A

O RING,21MM

670D2021

$5.13

12046

SPROCKET,36T

12046-0063

Unavailable

12048

TENSIONER-ASSY

12048-0052

$62.32

12053

GUIDE-CHAIN,RR

12053-0126

$44.23

12053A

GUIDE-CHAIN,FR

12053-0127

$44.23

14014

PLATE-POSITION

14014-1154

$1.10

49118

CAMSHAFT-COMP

49118-0126

$216.16

92057

CHAIN,CAM

92057-0032

$22.11

92122

ROLLER

92122-0011

$1.00

92153

BOLT,6X25

92153-1151

$0.46

92153A

BOLT,8X23

92153-1156

$1.24

92153B

BOLT,6X26.5

92153-1157

$1.53

92154

BOLT

92154-0281

$3.12

92172

SCREW,6X14

92172-1055

$0.48
