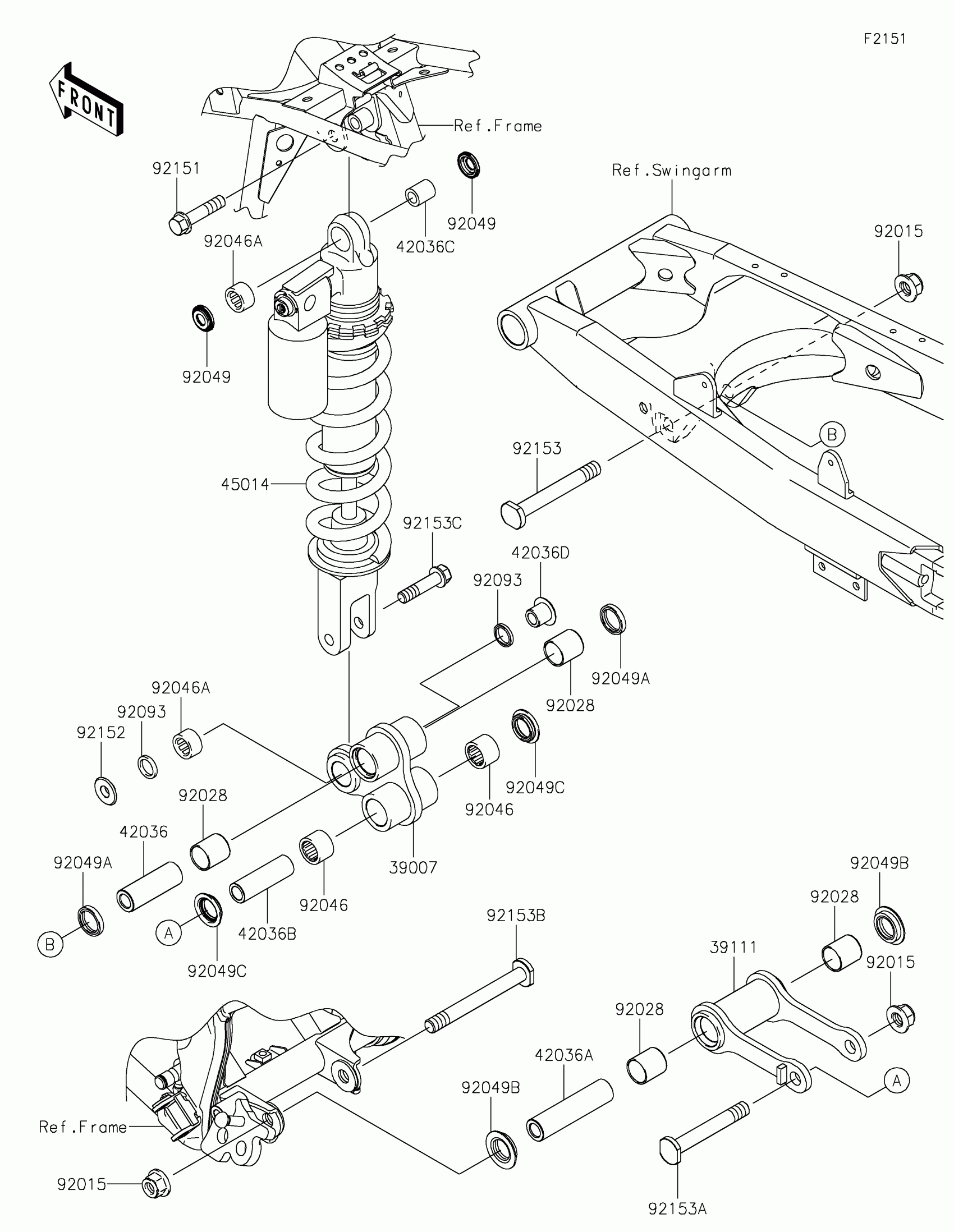

Kawasaki KLX®140G Suspension/Shock Absorber Diagram

Description

Price

39007

ARM-SUSP,UNI TRAK,P.SILVER

39007-0141-458

$134.86

39111

ROD-TIE,SUSPENSION,P.SILVER

39111-0062-458

$105.86

42036

SLEEVE,12.1X20X58

42036-0046

$20.63

42036A

SLEEVE,12.1X20X82.6

42036-0047

$31.35

42036B

SLEEVE,12.1X18X58

42036-0058

$20.63

42036C

SLEEVE,10X16X19

42036-1248

$7.54

42036D

SLEEVE

42036-1351

$8.58

45014

SHOCKABSORBER,BLACK

45014-0545-10

$582.77

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92028

BUSHING

92028-1598

$3.50

92046

BEARING-NEEDLE,18BM2416

92046-1144

$29.83

92046A

BEARING-NEEDLE,16BM2212

92046-1192

$13.73

92049

SEAL-OIL

92049-0069

$9.35

92049A

SEAL-OIL

92049-0112

$12.37

92049B

SEAL-OIL,ARM

92049-1109

$7.08

92049C

SEAL-OIL

92049-1328

$22.08

92093

SEAL

92093-0139

$8.10

92151

BOLT,FLANGED,10X45

92151-1413

$3.56

92152

COLLAR

92152-1139

$6.75

92153

BOLT,12X95

92153-1827

$19.14

92153A

BOLT,12X85

92153-1828

$19.14

92153B

BOLT,12X108

92153-1829

$22.46

92153C

BOLT,FLANGED,10X42

92153-1957

$2.98
