2020 Kawasaki KLX®140G Rear HUB Diagram

← All diagrams

Find the part on the Rear HUB diagram for your 2020 Kawasaki KLX®140G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

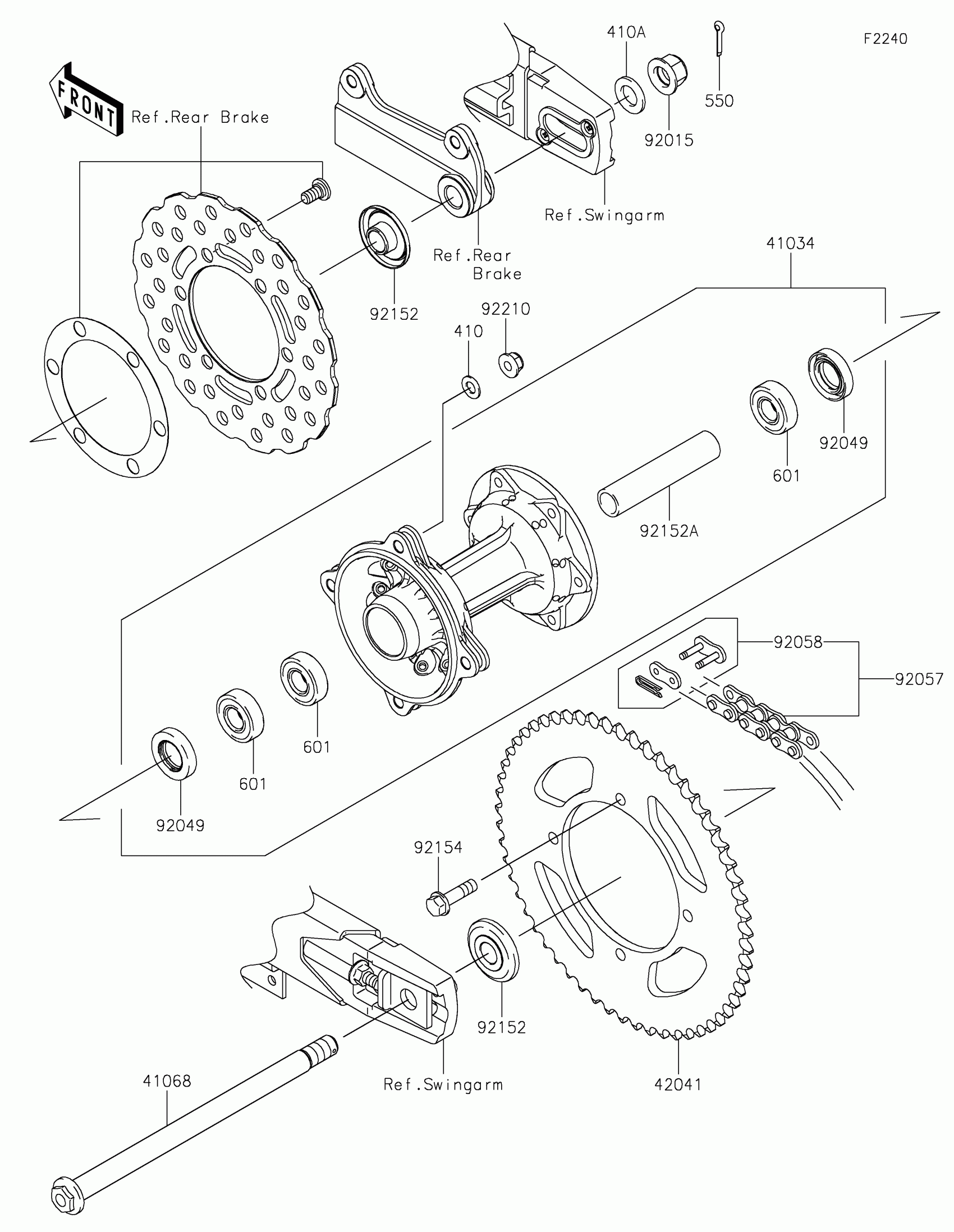

2020 Kawasaki KLX®140G Rear HUB Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

410

WASHER-PLAIN-SMALL,8MM

410AA0800

1
Out of stock

41034

DRUM-ASSY,RR

41034-0574

1

$334.19

In stock

41068

AXLE,RR,238MM

41068-0085

1
Out of stock

410A

WASHER-PLAIN-SMALL,14MM

410AA1400

1
Out of stock

42041

SPROCKET-HUB,57T

42041-0156

1
Out of stock

550

PIN-COTTER,2.5X20

550AA2520

1
Out of stock

601

BEARING-BALL

601B6202UU

1
Out of stock

92015

NUT,FLANGED,14MM

92015-1401

1
Out of stock

92049

SEAL-OIL

92049-0114

1
Out of stock

92057

CHAIN,DRIVE,DID428HDS3X134L

92057-0684

1
Out of stock

92058

JOINT-CHAIN,DRIVE

92058-0016

1
Out of stock

92152

COLLAR,RR AXLE,L=12.5

92152-0651

1
Out of stock

92152A

COLLAR,RR BRAKE DRUM,L=95

92152-1090

1
Out of stock

92154

BOLT,FLANGED,8X30

92154-0424

1
Out of stock

92210

NUT,FLANGED,LOCK,8MM

92210-0159

1
Out of stock
