Description

Price

11061

GASKET,MUFFLER JOINT

11061-0207

$27.58

11061A

GASKET

11061-0301

$15.06

11061B

GASKET,EXHAUST PIPE

11061-0322

$7.69

11061C

GASKET,DRAIN

11061-0875

$5.60

11061D

GASKET,5.8X12X1.5

11061-1148

Unavailable

132

BOLT-FLANGED-SMALL,6X10

132BB0610

$2.49

156

BOLT-WP,6X10

156R0610

$2.80

18020

BAFFLE

18020-0058

$63.70

18088

PIPE-EXHAUST

18088-0429

$176.27

18100

BODY-ASSY-MUFFLER

18100-0585

$517.82

185

BOLT-UPSET-WSP-SMALL,8X16

185BA0816

$2.61

39156

PAD,MUFFLER COVER,INNER,LWR

39156-0552

$8.01

39156A

PAD,MUFFLER COVER,INNER,UPP

39156-0553

$6.89

49106

COVER-MUFFLER,EX. PIPE

49106-0066

$66.69

49106A

COVER-MUFFLER,TAIL CAP

49106-0081

$25.46

92015

NUT,8MM

92015-1143

$0.65

92152

COLLAR,6.5X8.5X5.5

92152-0612

$3.90

92154

BOLT,SOCKET,6X12

92154-0042

$3.90

92161

DAMPER

92161-0545

$5.65

92161A

DAMPER

92161-1475

$5.33

92171

CLAMP

92171-0593

$16.97

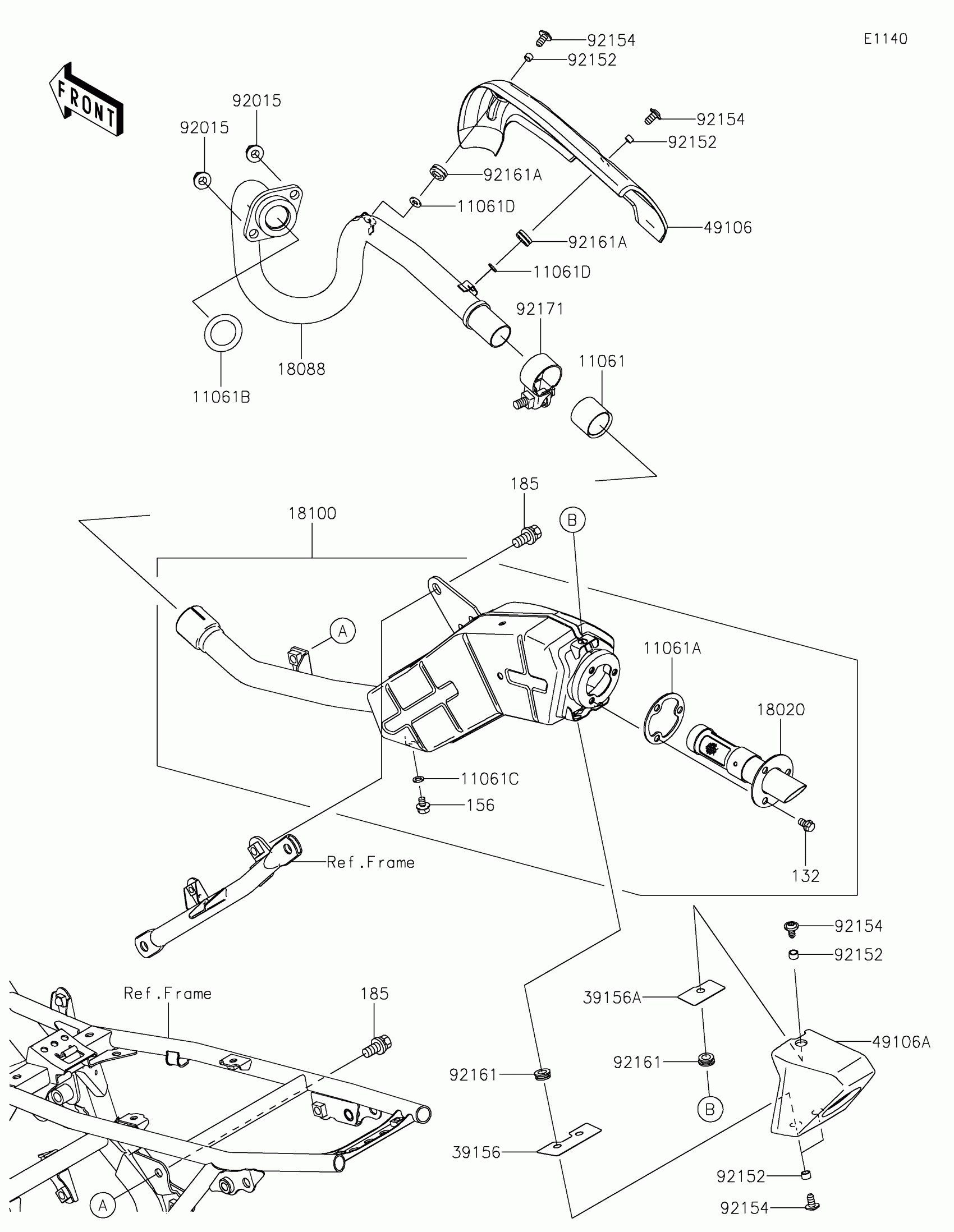

Kawasaki KLX®140G Muffler(s) Diagram

GASKET,MUFFLER JOINT

GASKET

GASKET,EXHAUST PIPE

GASKET,DRAIN

GASKET,5.8X12X1.5

BOLT-FLANGED-SMALL,6X10

BOLT-WP,6X10

BAFFLE

PIPE-EXHAUST

BODY-ASSY-MUFFLER

BOLT-UPSET-WSP-SMALL,8X16

PAD,MUFFLER COVER,INNER,LWR

PAD,MUFFLER COVER,INNER,UPP

COVER-MUFFLER,EX. PIPE

COVER-MUFFLER,TAIL CAP

NUT,8MM

COLLAR,6.5X8.5X5.5

BOLT,SOCKET,6X12

DAMPER

DAMPER

CLAMP
