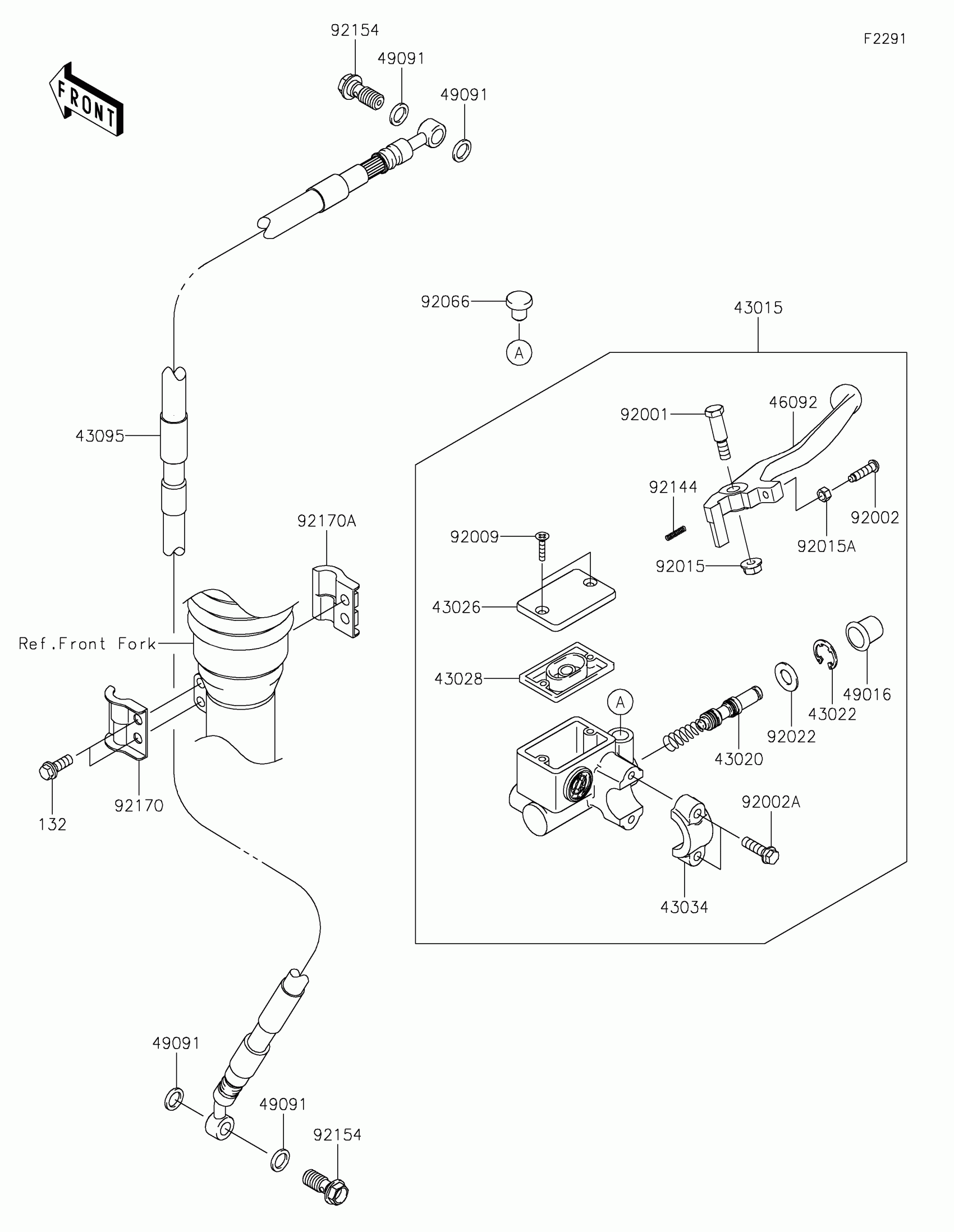

Kawasaki KLX®140G Front Master Cylinder Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

43015

CYLINDER-ASSY-MASTER,FR

43015-0106

$266.23

43020

PISTON-COMP-BRAKE

43020-1065

$51.24

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-1074

$25.59

43028

DIAPHRAGM

43028-1061

$16.18

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$19.45

43095

HOSE-BRAKE,FR,1161MM

43095-0953

$97.24

46092

LEVER-GRIP,FRONT BRAKE

46092-1175

$21.91

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92001

BOLT,FRONT BRAKE LEVER

92001-1728

$14.23

92002

BOLT,ADJUST

92002-1893

$7.45

92002A

BOLT

92002-1894

$5.52

92009

SCREW,4MM

92009-1458

$3.21

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,ADJUST

92015-1642

$3.92

92022

WASHER

92022-1814

$4.69

92066

PLUG

92066-1348

$0.84

92144

SPRING,RETURN

92144-1103

$9.43

92154

BOLT,OIL,L=23

92154-0226

$5.91

92170

CLAMP,BRAKE HOSE,OUTSIDE

92170-1231

$7.34

92170A

CLAMP,BRAKE HOSE,INSIDE

92170-1232

$7.34
