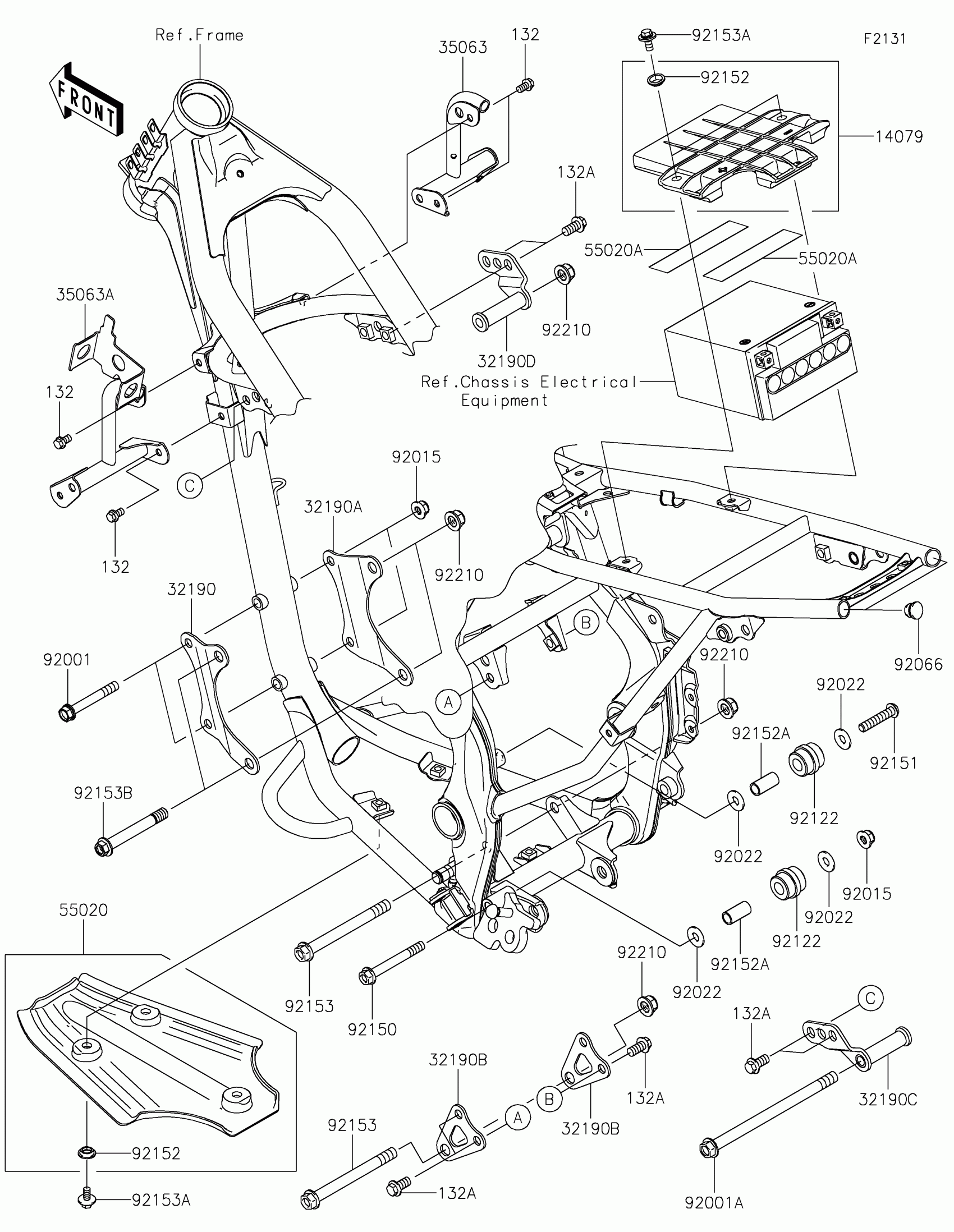

Kawasaki KLX®140G Frame Fittings Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.27

132A

BOLT-FLANGED-SMALL,8X16

132BA0816

$3.85

14079

HOLDER-ASSY,BATTERY

14079-0031

$35.00

32190

BRACKET-ENGINE,FR,LH

32190-0308

$14.39

32190A

BRACKET-ENGINE,FR,RH

32190-0309

$14.39

32190B

BRACKET-ENGINE,RR

32190-0310

$4.95

32190C

BRACKET-ENGINE,HEAD,LH

32190-0311

$22.46

32190D

BRACKET-ENGINE,HEAD,RH

32190-0312

$22.46

35063

STAY,SHROUD,RH,P.SILVER

35063-1340-458

$46.38

35063A

STAY,SHROUD,LH,P.SILVER

35063-1341-458

$61.15

55020

GUARD

55020-0409

$20.45

55020A

GUARD

55020-0429

$7.56

92001

BOLT,FLANGED,8X60

92001-1581

$3.90

92001A

BOLT,FLANGED,10X160

92001-1653

$16.31

92015

NUT,8MM

92015-1432

$4.93

92022

WASHER,8.5X20X1.6

92022-1561

$3.29

92066

PLUG,FRAME END,12X13

92066-1034

$3.21

92122

ROLLER,GUIDE CHAIN

92122-0041

$10.76

92150

BOLT,FLANGED,8X65

92150-1036

$4.66

92151

BOLT,SOCKET,8X40

92151-1205

$3.27

92152

COLLAR,8.8X11.2X4

92152-0909

$4.27

92152A

COLLAR,9.5X12.5X25

92152-0943

$7.69

92153

BOLT,FLANGED,10X105

92153-0614

$8.37

92153A

BOLT,FLANGED,6X14

92153-0936

$2.09

92153B

BOLT,FLANGED,10X77

92153-1613

$11.42

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$7.83
