2020 Kawasaki KLX®140G Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2020 Kawasaki KLX®140G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

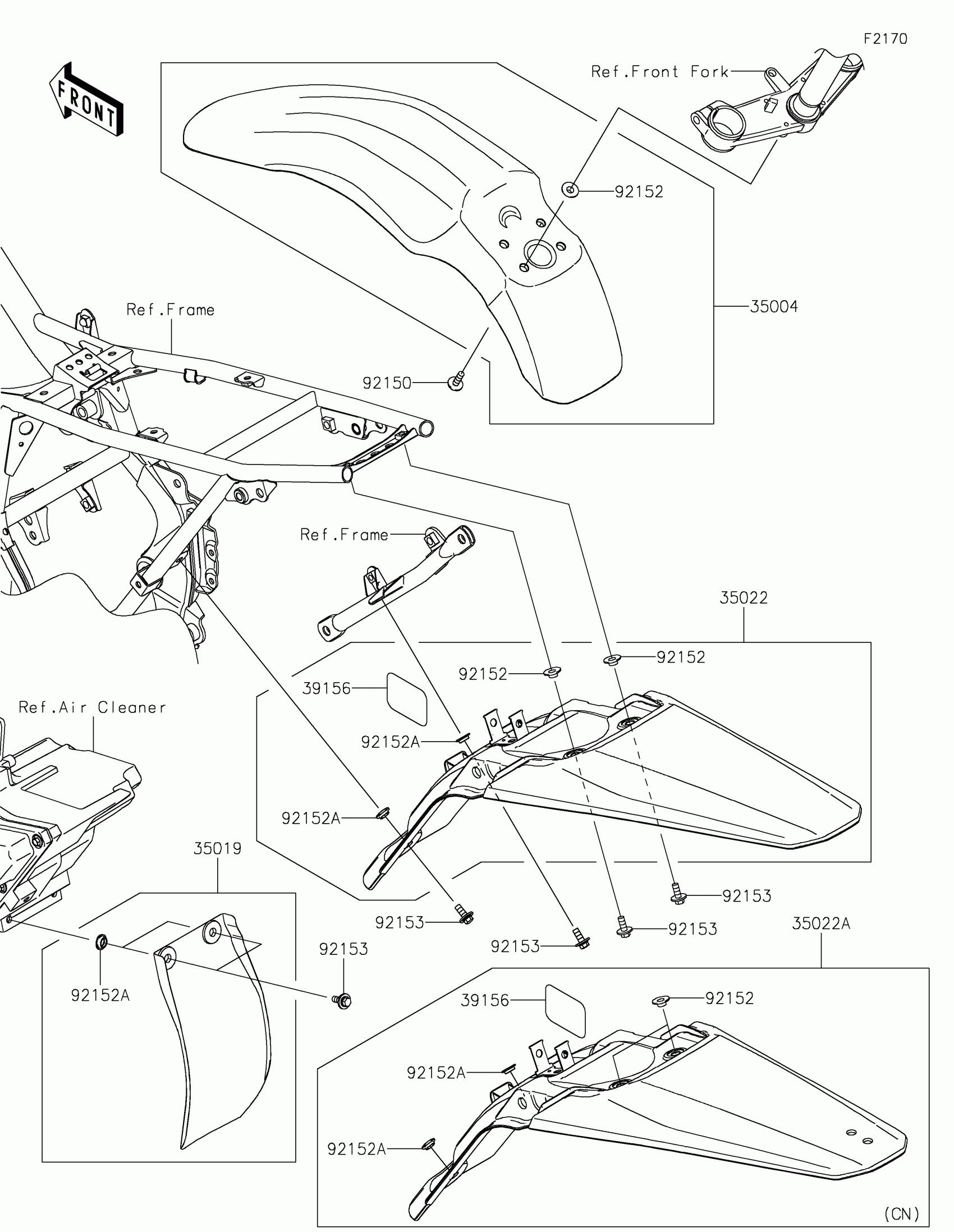

2020 Kawasaki KLX®140G Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FRONT,L.GREEN

35004-0088-290

1

$61.98

In stock

35019

FLAP,RR FENDER,FR

35019-0630

1

$49.49

In stock

35022

FENDER-COMP-REAR,L.GREEN

35022-0103-290

1

$84.73

In stock

35022A

FENDER-COMP-REAR,L.GREEN

35022-0105-290

1
Out of stock

39156

PAD

39156-0453

1

$7.56

In stock

92150

BOLT,6X20

92150-1339

1

$3.49

In stock

92152

COLLAR

92152-0427

1

$6.16

In stock

92152A

COLLAR,8.8X11.2X4

92152-0909

1

$4.47

In stock

92153

BOLT,6X16

92153-0863

1
Out of stock
