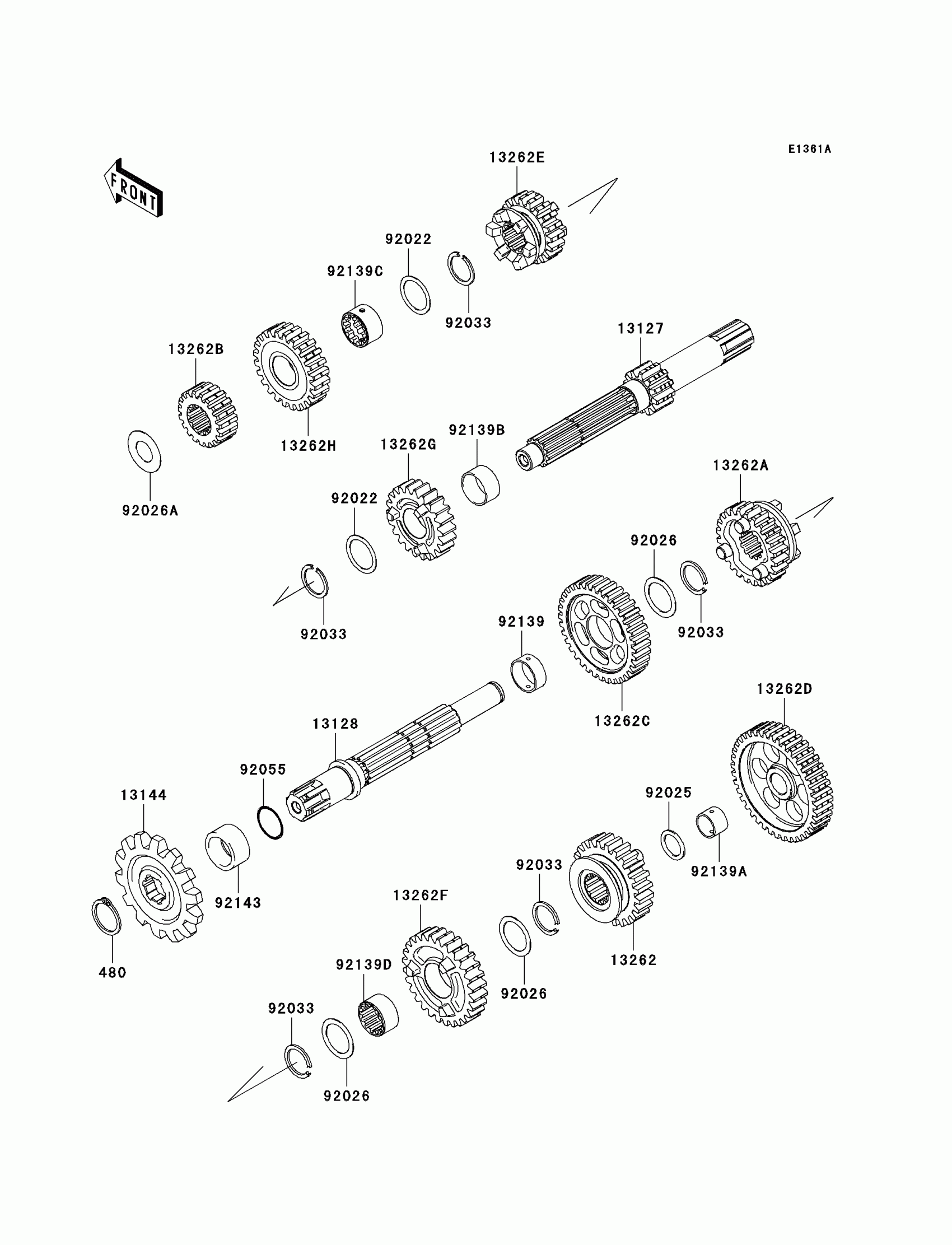

Kawasaki KLX®140 Transmission(AAF/ABF) Diagram

#

Description
Price

480

CIRCLIP-TYPE-C,17MM

480J1700

$0.55

13127

SHAFT-TRANSMISSION INPUT,15T

13127-0074

$120.31

13128

SHAFT-TRANSMISSION OUTPUT

13128-0051

$151.80

13144

SPROCKET-OUTPUT,14T

13144-0049

$31.24

13262

GEAR,OUTPUT 4TH,26T

13262-0459

$42.42

13262A

GEAR,OUTPUT 5TH,24T

13262-0502

$61.39

13262B

GEAR,INPUT 2ND,19T

13262-0577

$49.20

13262C

GEAR,OUTPUT 2ND,36T

13262-0578

$50.77

13262D

GEAR,OUTPUT LOW,40T

13262-0579

$53.81

13262E

GEAR,INPUT 3RD,19T

13262-0662

$66.42

13262F

GEAR,OUTPUT 3RD,28T

13262-0738

$79.28

13262G

GEAR,INPUT 4TH,22T

13262-0769

Unavailable

13262H

GEAR,INPUT 5TH,24T

13262-0770

$41.68

92022

WASHER,17.3X22X0.5

92022-1799

$2.99

92025

SHIM

92025-1280

$2.28

92026

SPACER,17.2X23X0.5

92026-1037

$3.85

92026A

SPACER

92026-1610

$0.85

92033

RING-SNAP,17MM

92033-1060

$3.25

92055

RING-O,16.8X1.9

92055-0151

$2.98

92139

BUSHING

92139-0001

$3.58

92139A

BUSHING,12X14X9.4

92139-0002

$2.76

92139B

BUSHING,17X19X9.5

92139-0282

$10.59

92139C

BUSHING,14.5X17.25X11.0

92139-0283

$16.03

92139D

BUSHING

92139-0286

$16.03

92143

COLLAR,SPROCKET

92143-1680

$9.82
