2016 Kawasaki KLX®140 Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2016 Kawasaki KLX®140, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

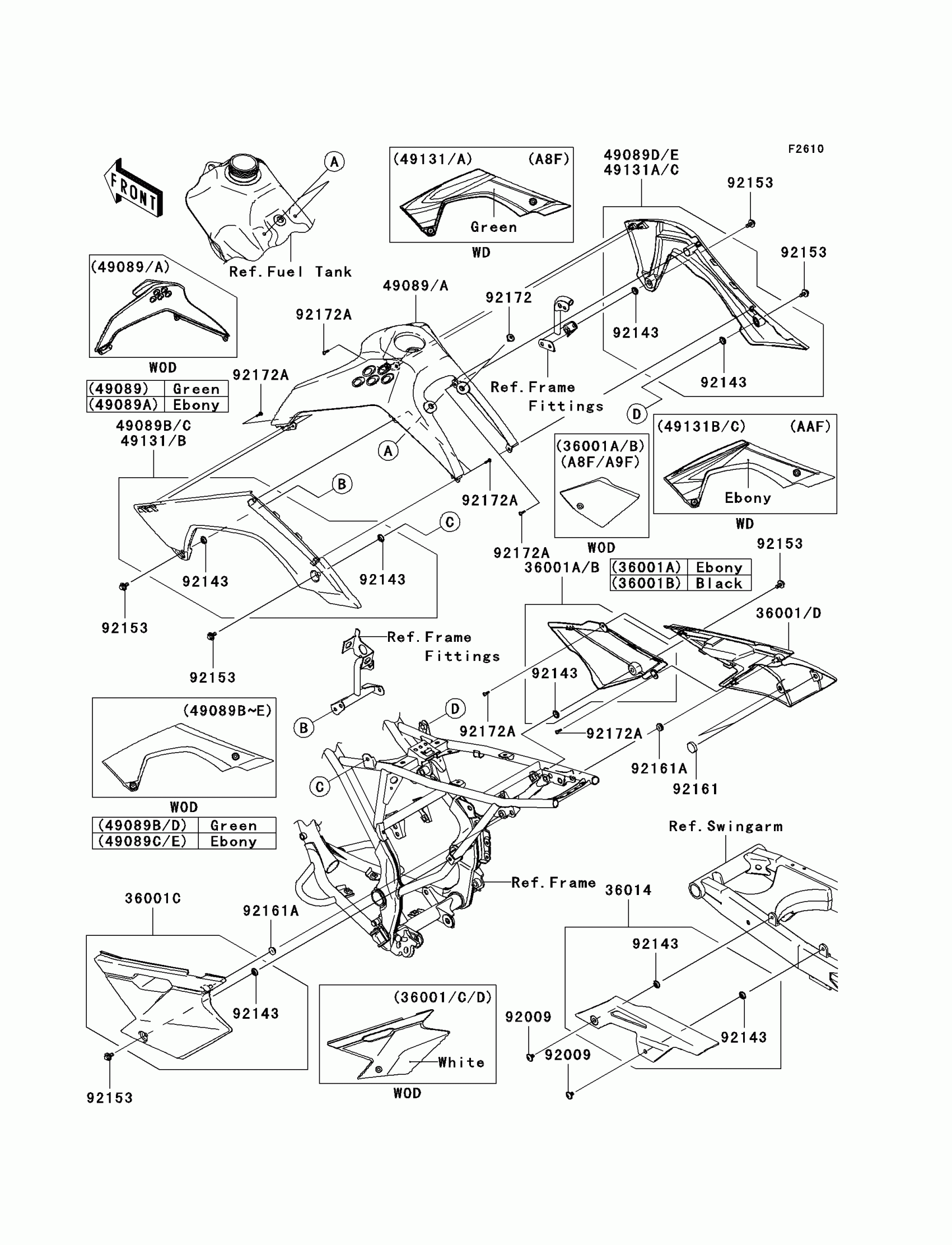

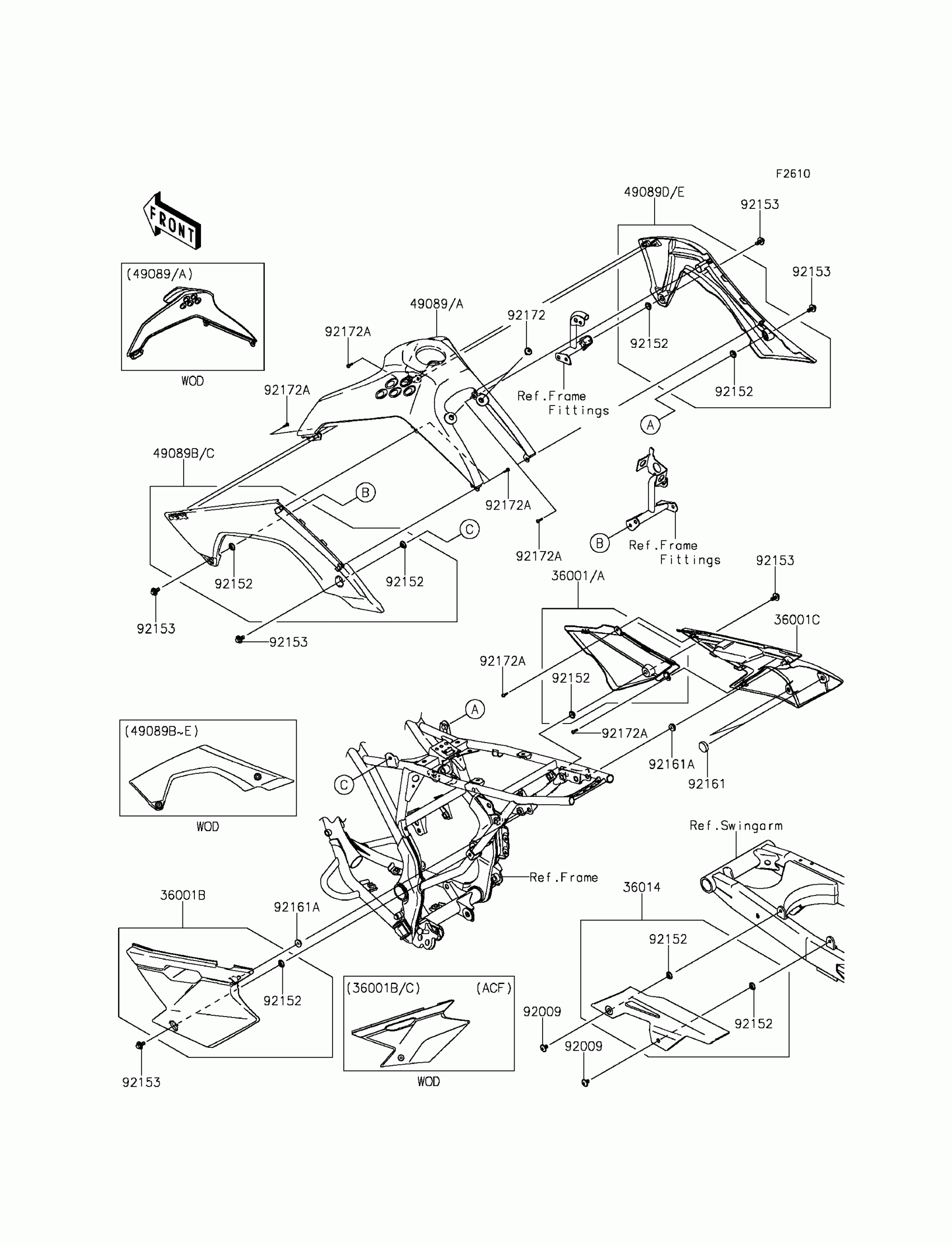

2016 Kawasaki KLX®140 Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,FR,RH,B.WHITE

36001-0125-266

1
Out of stock

36001B

COVER-SIDE,RR,LH,B.WHITE

36001-0154-266

1

$44.78

In stock

36001C

COVER-SIDE,RR,RH,B.WHITE

36001-0156-266

1

$44.78

In stock

36014

CASE-CHAIN

36014-0044

1

$13.74

In stock

49089

SHROUD-ENGINE,UPP,L.GREEN

49089-0052-290

1
Out of stock

49089C

SHROUD-ENGINE,LH,EBONY

49089-0053-6C

1
Out of stock

49089E

SHROUD-ENGINE,RH,EBONY

49089-0054-6C

1
Out of stock

92009

SCREW,6X10

92009-1729

1
Out of stock

92152

COLLAR,8.8X11.2X4

92152-0909

1
Out of stock

92153

BOLT,FLANGED,6X14

92153-0936

1
Out of stock

92161

DAMPER

92161-0336

1
Out of stock

92161A

DAMPER

92161-0631

1
Out of stock

92172

SCREW,6X10

92172-0098

1
Out of stock

92172A

SCREW,TAPPING,4X12

92172-0233

1
Out of stock
