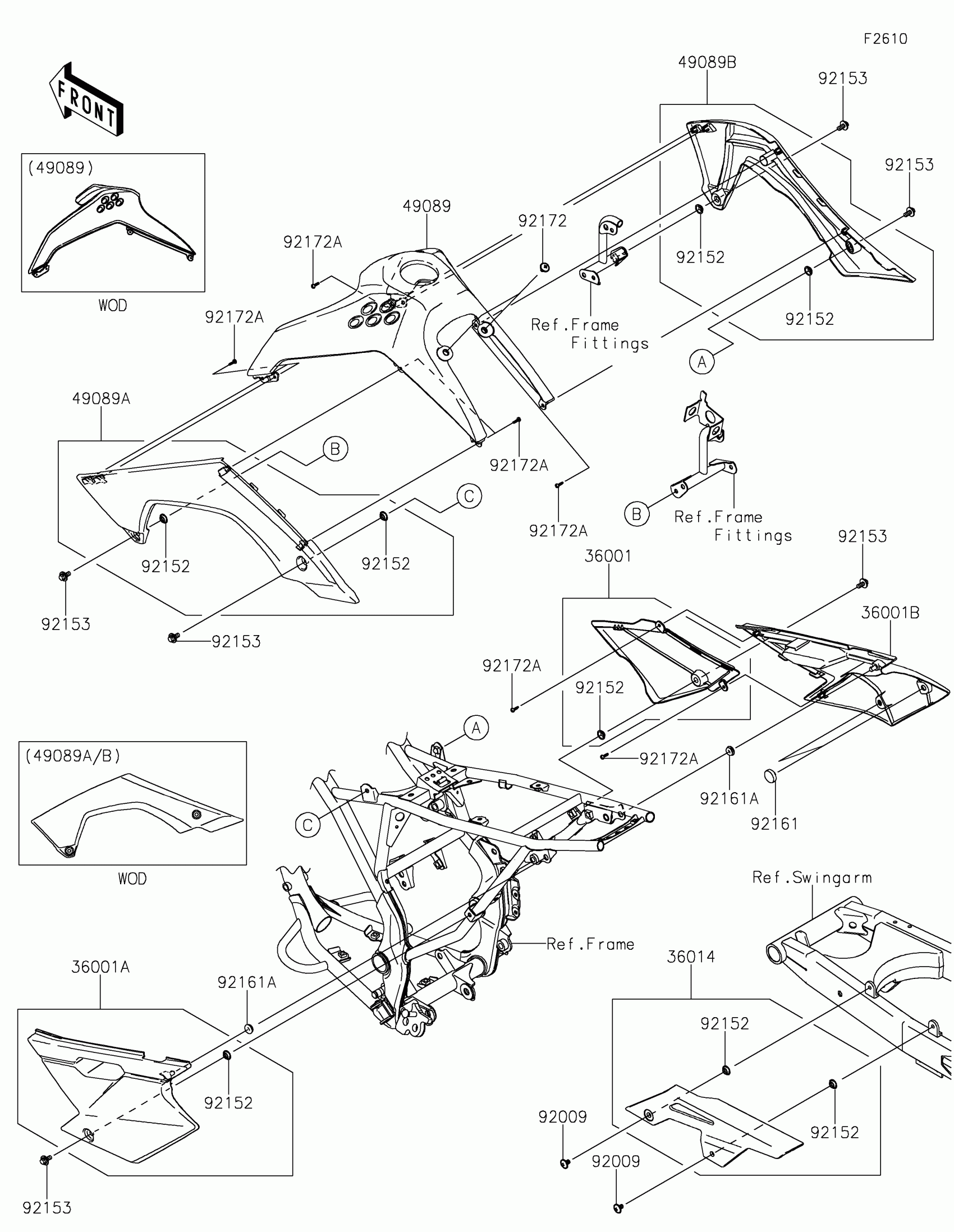

Kawasaki KLX®140 Side Covers/Chain Cover(AHF/AJF) Diagram

Description

Price

36001

COVER-SIDE,FR,RH,B.WHITE

36001-0125-266

$24.91

36001A

COVER-SIDE,RR,LH,B.WHITE

36001-0154-266

$44.78

36001B

COVER-SIDE,RR,RH,B.WHITE

36001-0156-266

$44.78

36014

CASE-CHAIN

36014-0044

$13.74

49089

SHROUD-ENGINE,UPP,L.GREEN

49089-0052-290

$69.25

49089A

SHROUD-ENGINE,LH,EBONY

49089-0053-6C

$36.12

49089B

SHROUD-ENGINE,RH,EBONY

49089-0054-6C

$36.28

92009

SCREW,6X10

92009-1729

$0.27

92152

COLLAR,8.8X11.2X4

92152-0909

$4.47

92153

BOLT,FLANGED,6X14

92153-0936

$2.42

92161

DAMPER

92161-0336

$4.47

92161A

DAMPER

92161-0631

$5.87

92172

SCREW,6X10

92172-0098

$2.29

92172A

SCREW,TAPPING,4X12

92172-0233

$1.20
