2011 Kawasaki KLX®140 Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2011 Kawasaki KLX®140, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

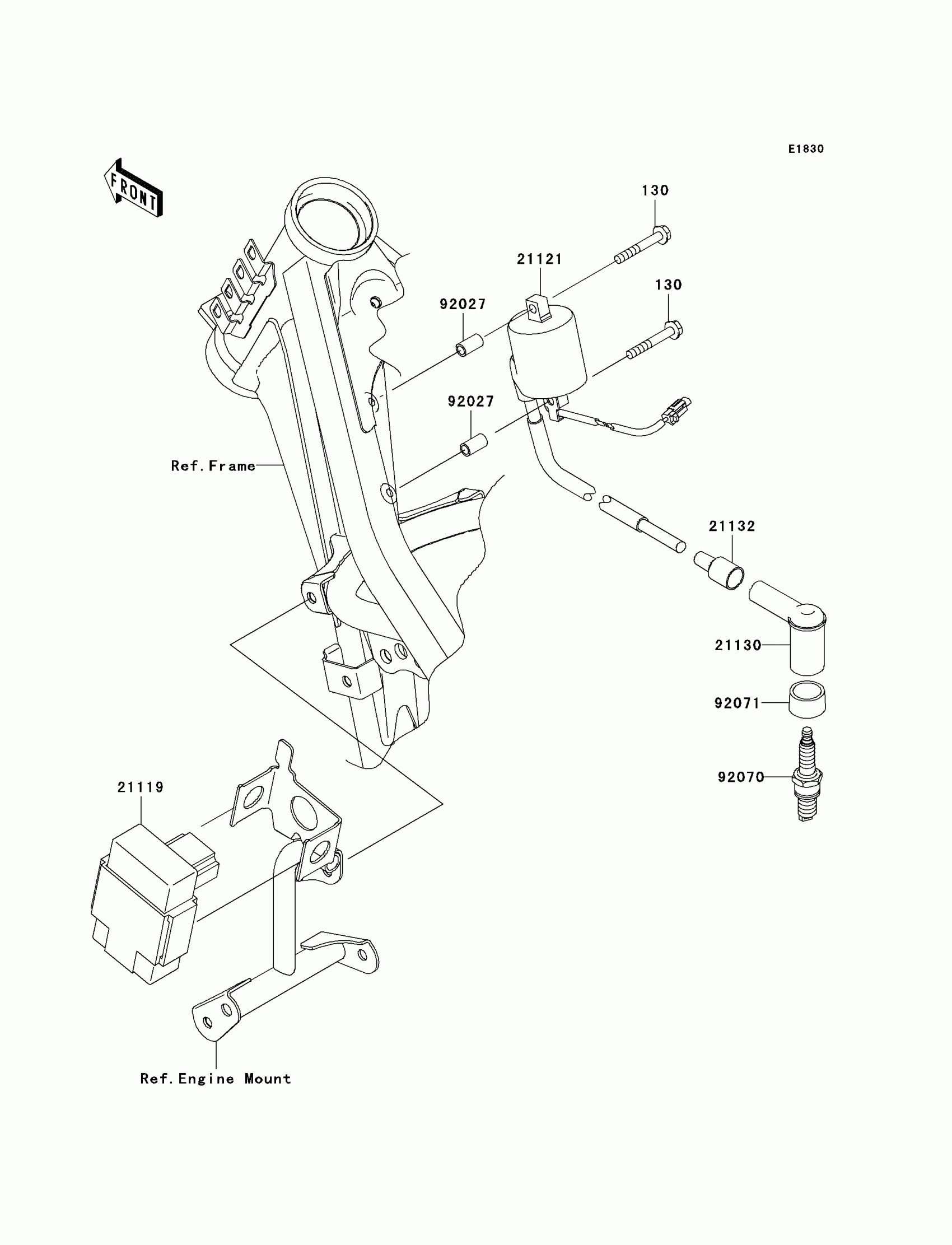

2011 Kawasaki KLX®140 Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X35

130BA0535

1

$3.69

In stock

21119

IGNITER

21119-0087

1

$283.85

In stock

21121

COIL-IGNITION

21121-0036

1

$85.54

In stock

21130

CAP-SPARK PLUG

21130-1003

1

$26.75

In stock

21132

1

$3.39

In stock

92027

COLLAR,5.6X8X14.5

92027-1789

1

$4.42

In stock

92070

PLUG-SPARK,CR7HSA

92070-1154

1
Out of stock

92071

1

$3.81

In stock
