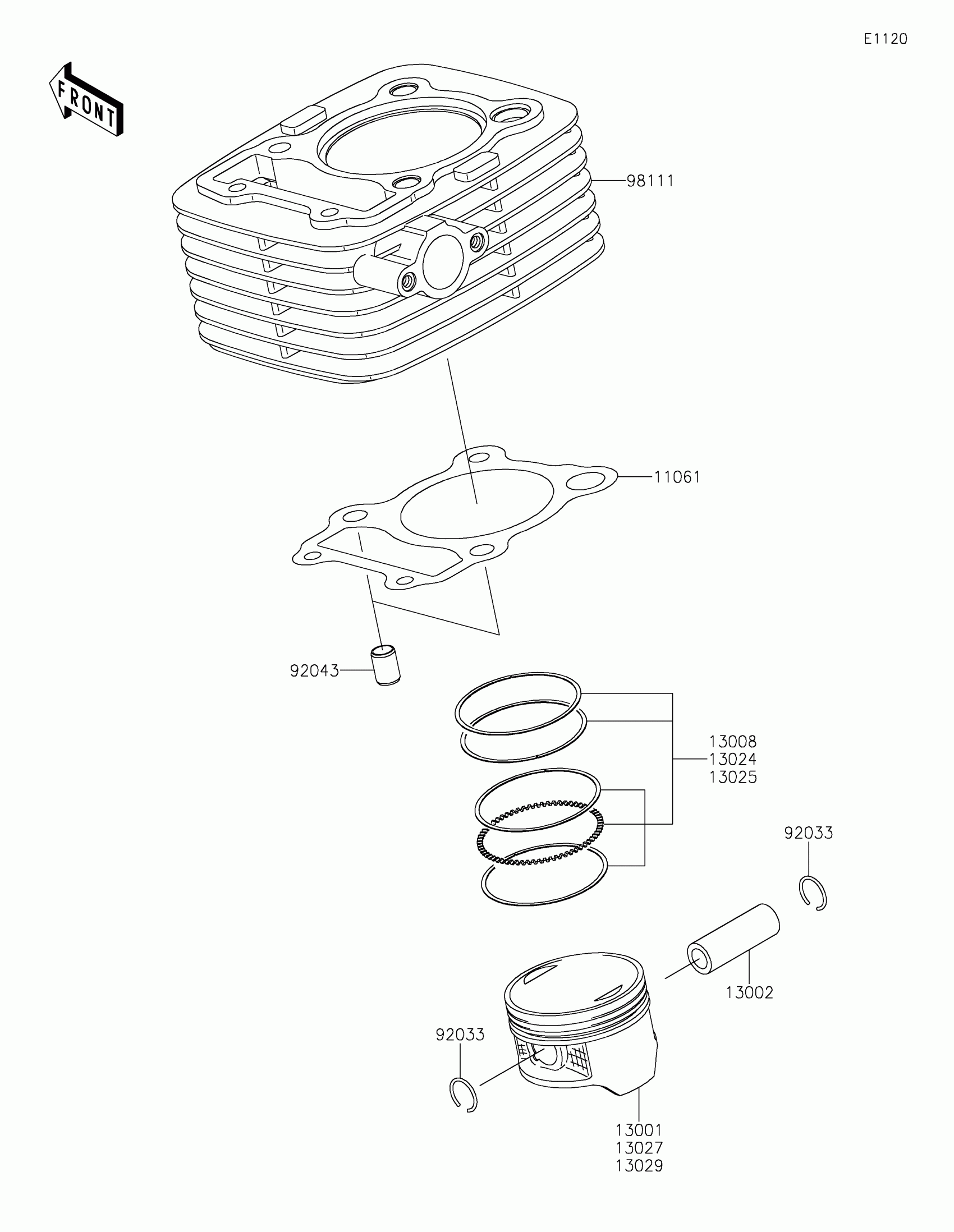

Kawasaki KLX®140 Cylinder/Piston(s) Diagram

#

Description
Price

11061

GASKET,CYLINDER BASE

11061-0319

$7.69

13001

PISTON-ENGINE

13001-0093

$95.06

13002

PIN-PISTON

13002-1126

$5.61

13008

RING-SET-PISTON

13008-0038

$47.94

13024

RING-SET-PISTON LL,O/S 1.00

13024-0009

$47.78

13025

RING-SET-PISTON L,O/S 0.50

13025-0011

$47.78

13027

PISTON-ENGINE LL,O/S 1.00

13027-0013

$95.06

13029

PISTON-ENGINE L,O/S 0.50

13029-0018

$95.06

92033

RING-SNAP

92033-1287

$3.32

92043

PIN,8.2X10X14

92043-1264

$0.64

98111

CYLINDER-COMP-ENGINE

98111-0024

$387.25
