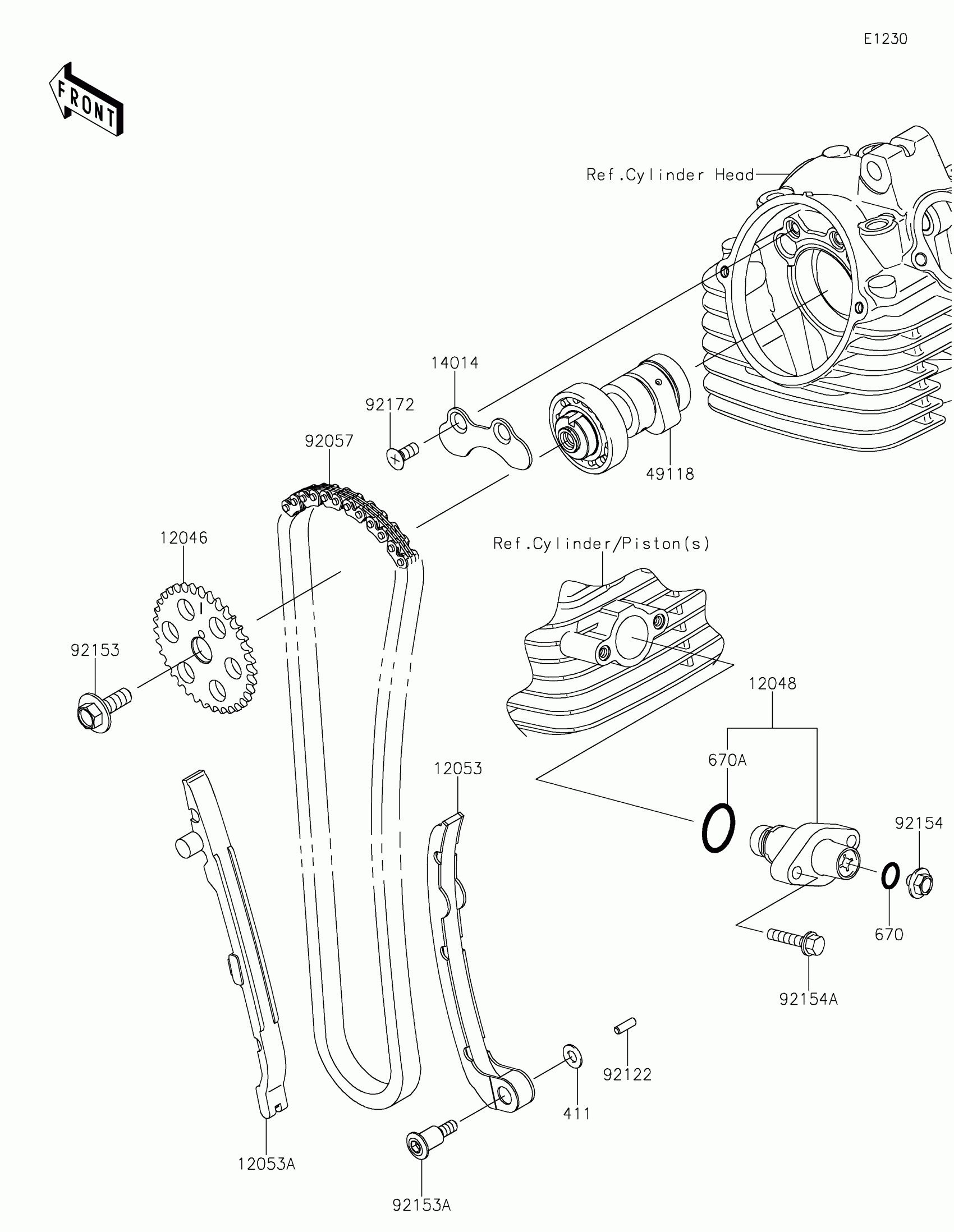

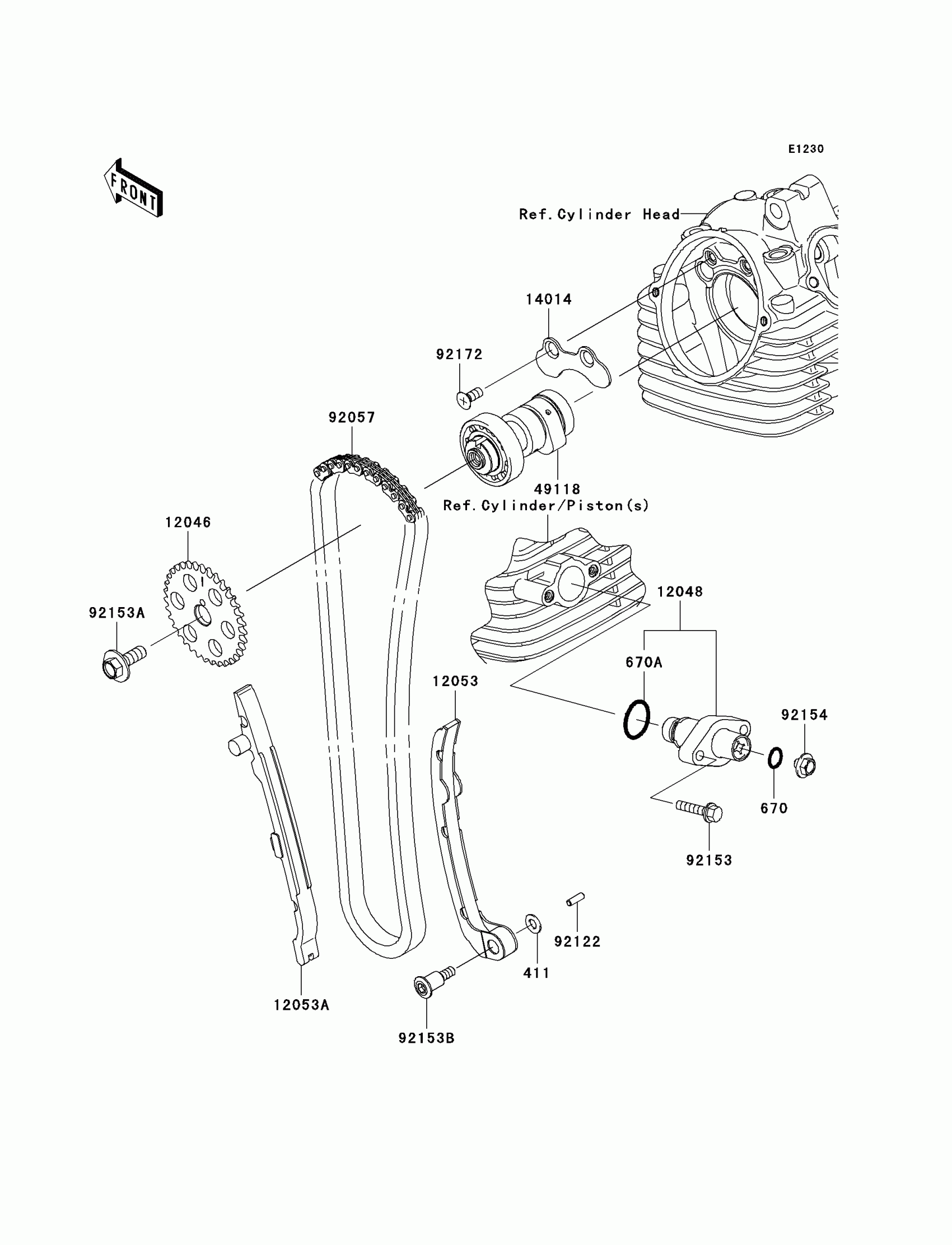

Kawasaki KLX®140 Camshaft(s)/Tensioner Diagram

Description

Price

12046

SPROCKET,36T

12046-0084

$50.75

12048

TENSIONER-ASSY

12048-0052

$61.13

12053

GUIDE-CHAIN,RR

12053-0126

$43.39

12053A

GUIDE-CHAIN,FR

12053-0127

$43.39

14014

PLATE-POSITION

14014-1154

$1.19

411

WASHER-PLAIN,6MM

411AA0600

$2.92

49118

CAMSHAFT-COMP

49118-0893

$211.69

670

O RING,10MM

670D2010

$1.94

670A

O RING,21MM

670D2021

$6.85

92057

CHAIN,CAM

92057-0691

$27.41

92122

ROLLER

92122-0011

$1.28

92153

BOLT,8X23

92153-1156

$1.63

92153A

BOLT,6X26.5

92153-1157

$1.78

92154

BOLT

92154-0281

$3.52

92154A

BOLT,FLANGED,6X25

92154-1196

$0.85

92172

SCREW,6X14

92172-1055

$0.49
