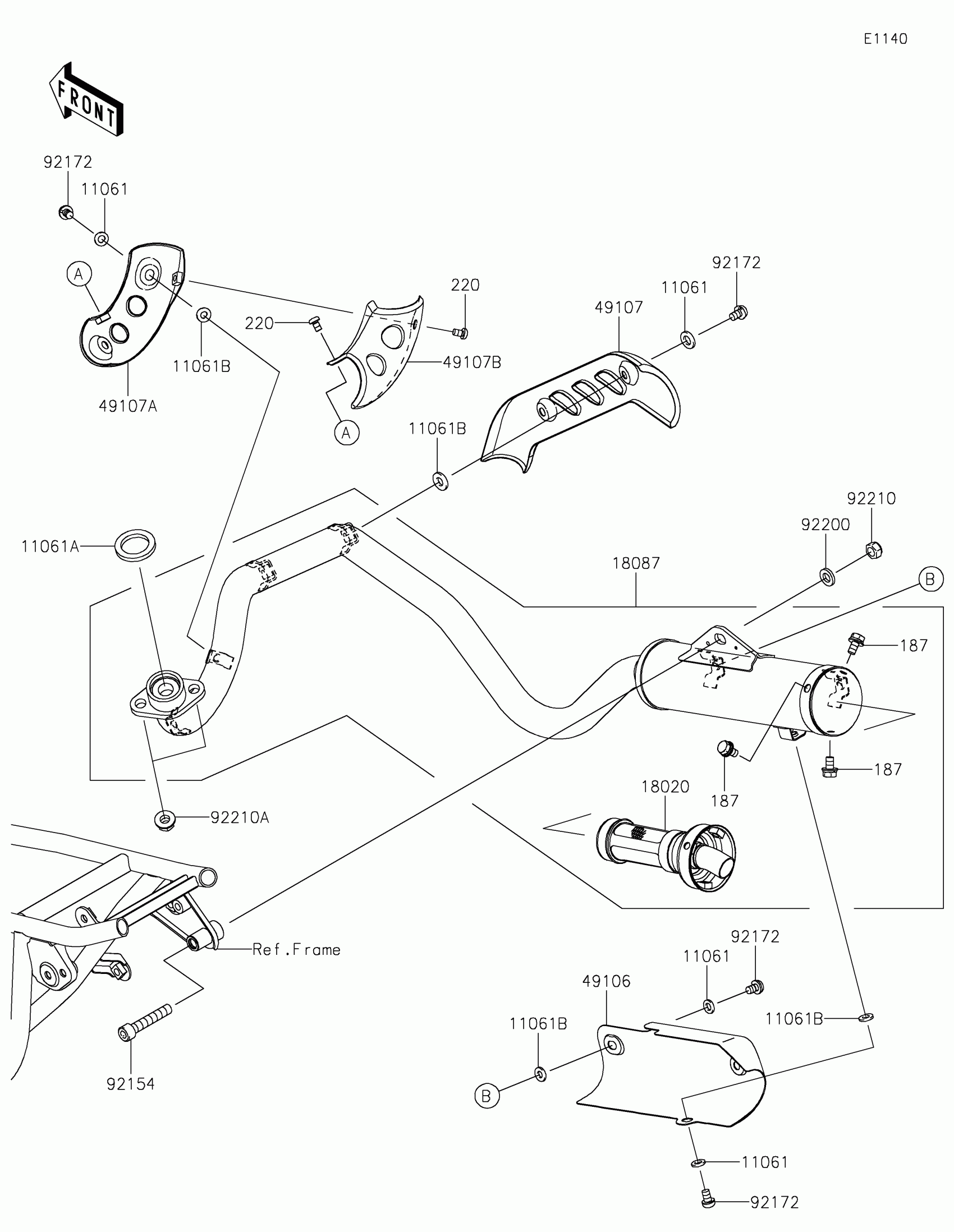

Kawasaki KLX®110R Muffler(s) Diagram

Description

Price

11061

GASKET,6.2X11.5X1.5

11061-0372

Unavailable

11061A

GASKET,EXHAUST PIPE

11061-1112

$4.35

11061B

GASKET

11061-1385

$4.27

18020

BAFFLE

18020-0084

$150.95

18087

MUFFLER

18087-0266

$307.32

49106

COVER-MUFFLER

49106-0094

$35.14

49107

COVER-EXHAUST PIPE

49107-1213

$29.40

49107A

COVER-EXHAUST PIPE

49107-1217

$18.20

49107B

COVER-EXHAUST PIPE

49107-1221

$12.80

92154

BOLT,SOCKET,8X45

92154-2878

$3.52

92172

SCREW,6X10

92172-1502

$4.12

92200

WASHER,8.1X15X2.3

92200-0449

$3.71

92210

NUT,LOCK,8MM

92210-0606

$3.52

92210A

NUT,8MM

92210-1973

$4.69

187

BOLT-UPSET-WSP,6X12

187AA0612

$1.17

220

SCREW-PAN-CROS,5X8

220AB0508

$0.56
