2026 Kawasaki KLX®110R L Transmission Diagram

← All diagrams

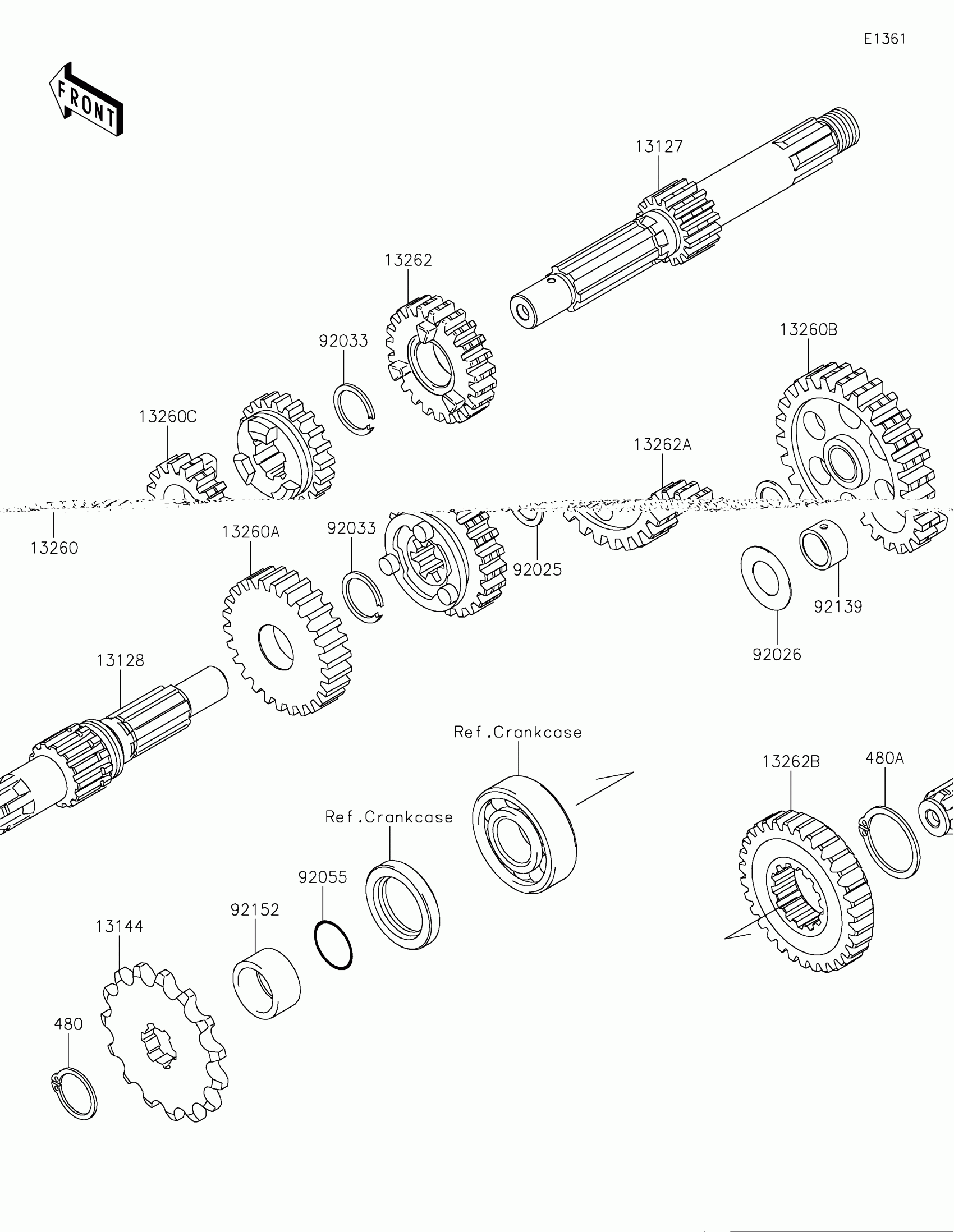

Find the part on the Transmission diagram for your 2026 Kawasaki KLX®110R L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki KLX®110R L Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13127

SHAFT-TRANSMISSION INPUT,12T

13127-0661

1
Out of stock

13128

SHAFT-TRANSMISSION OUTPUT

13128-0672

1
Out of stock

13144

SPROCKET-OUTPUT,13T

13144-1043

1
Out of stock

13260

GEAR,INPUT 3RD,20T

13260-1839

1
Out of stock

13260A

GEAR,OUTPUT 3RD,27T

13260-1842

1
Out of stock

13260B

GEAR,OUTPUT LOW,36T

13260-1862

1
Out of stock

13260C

GEAR,INPUT 2ND,16T

13260-1986

1
Out of stock

13262

GEAR,INPUT 4TH,23T

13262-0666

1
Out of stock

13262A

GEAR,OUTPUT 4TH,25T

13262-0667

1
Out of stock

13262B

GEAR,OUTPUT 2ND,31T

13262-0913

1
Out of stock

92025

SHIM

92025-1280

1
Out of stock

92026

SPACER

92026-1091

1
Out of stock

92033

RING-SNAP,17MM

92033-1060

1
Out of stock

92055

RING-O,16.8MM

92055-1235

1
Out of stock

92139

BUSHING

92139-1102

1
Out of stock

92152

COLLAR,SPROCKET

92152-0998

1
Out of stock

480

CIRCLIP-TYPE-C,17MM

480J1700

1
Out of stock

480A

CIRCLIP-TYPE-C,24MM

480J2400

1
Out of stock
