2026 Kawasaki KLX®110R L Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2026 Kawasaki KLX®110R L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

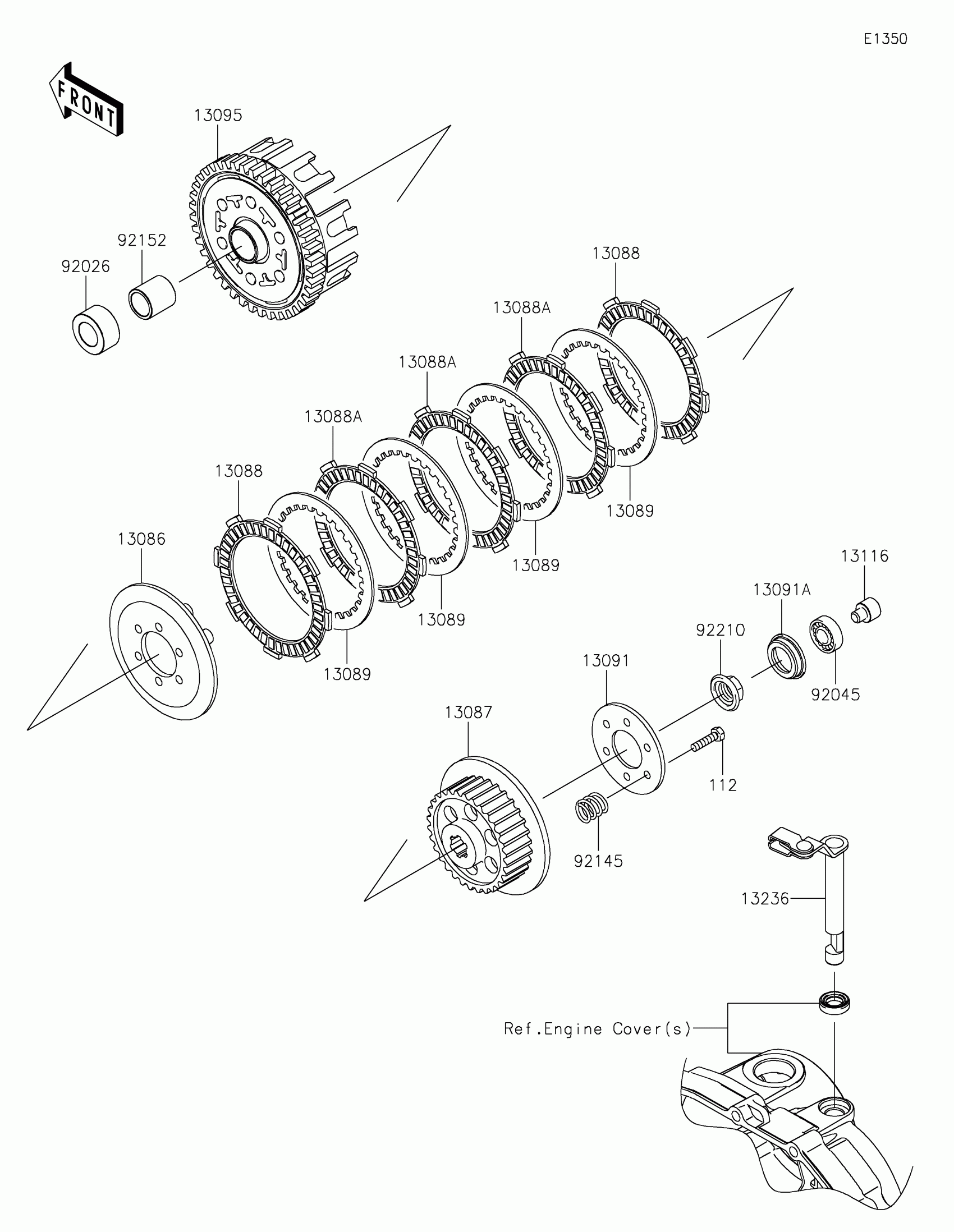

2026 Kawasaki KLX®110R L Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13086

WHEEL-CLUTCH

13086-1065

1
Out of stock

13087

HUB-CLUTCH

13087-1151

1
Out of stock

13088

PLATE-FRICTION

13088-0047

1
Out of stock

13088A

PLATE-FRICTION

13088-0048

1
Out of stock

13089

PLATE-CLUTCH

13089-1087

1
Out of stock

13091

HOLDER,CLUTCH

13091-1782

1
Out of stock

13091A

HOLDER

13091-1787

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-1403

1
Out of stock

13116

ROD-PUSH

13116-0038

1
Out of stock

13236

LEVER-COMP

13236-0177

1
Out of stock

92026

SPACER

92026-1605

1
Out of stock

92045

BEARING-BALL,#628

92045-1123

1
Out of stock

92145

SPRING

92145-0713

1
Out of stock

92152

COLLAR,17X22X22.7

92152-0393

1
Out of stock

92210

NUT,14MM

92210-1374

1
Out of stock

112

BOLT-UPSET,5X20

112BA0520

1
Out of stock
