2026 Kawasaki KLX®110R L Starter Motor Diagram

← All diagrams

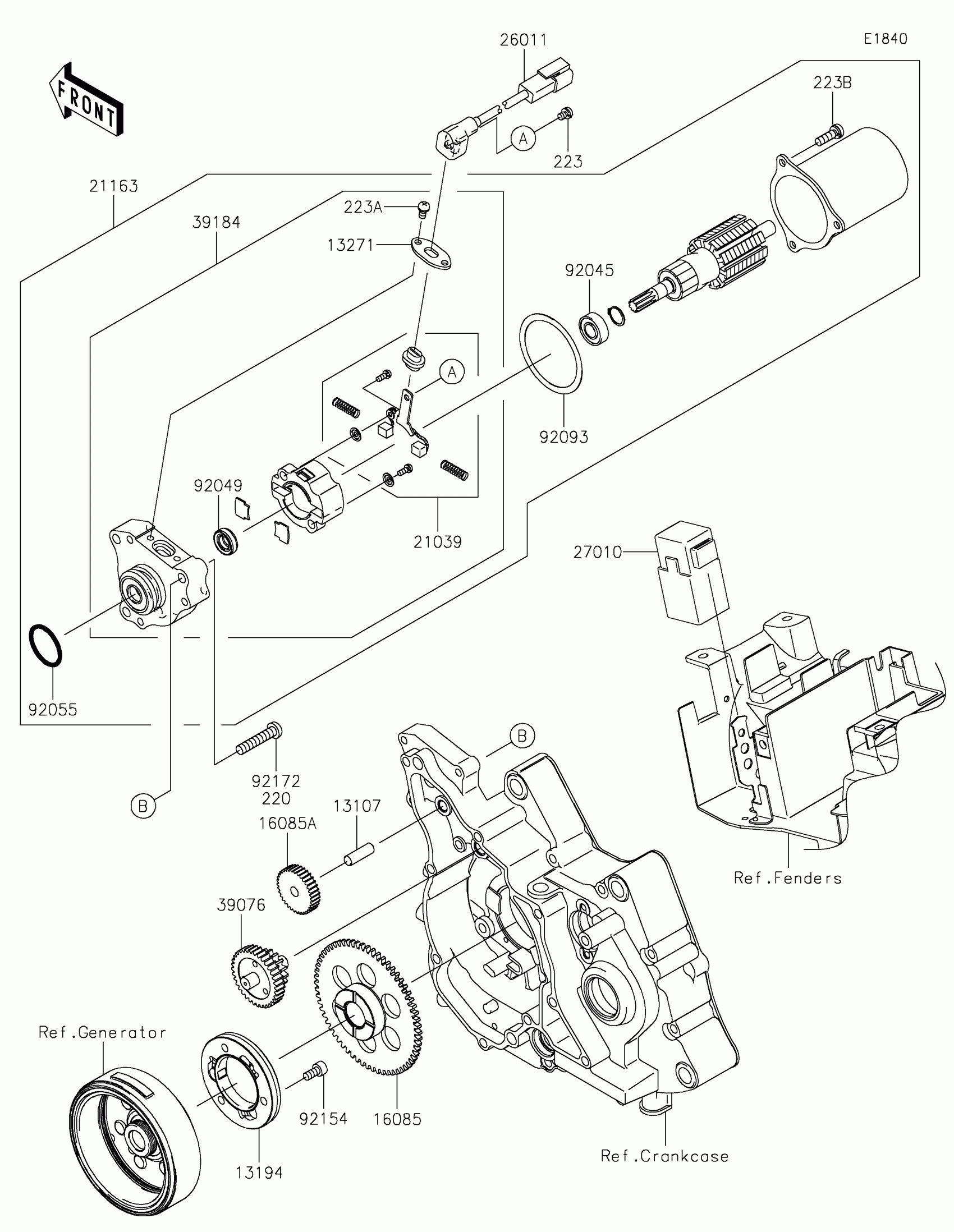

Find the part on the Starter Motor diagram for your 2026 Kawasaki KLX®110R L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki KLX®110R L Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,8X25

13107-1142

1
Out of stock

13194

CLUTCH-ONEWAY

13194-0013

1
Out of stock

13271

PLATE

13271-0674

1
Out of stock

16085

GEAR

16085-0136

1
Out of stock

16085A

GEAR,IDLE,45T

16085-0593

1
Out of stock

21039

BRUSH,STARTER MOTOR(SET)

21039-1067

1
Out of stock

21163

STARTER-ELECTRIC

21163-0777

1
Out of stock

26011

WIRE-LEAD

26011-0249

1
Out of stock

27010

SWITCH

27010-0085

1
Out of stock

39076

LIMITER

39076-0022

1
Out of stock

39184

BRACKET-ASSY

39184-0014

1
Out of stock

92045

BEARING-BALL,STARTER MOTOR

92045-1349

1
Out of stock

92049

SEAL-OIL,STARTER MOTOR

92049-1465

1
Out of stock

92055

RING-O

92055-1276

1
Out of stock

92093

SEAL,STARTER MOTOR

92093-1079

1
Out of stock

92154

BOLT

92154-0325

1
Out of stock

92172

SCREW,6X30

92172-1501

1
Out of stock

223

SCREW-PAN-WS-CROS,4X6

223AA0406

1
Out of stock

223A

SCREW-PAN-WS-CROS,4X8

223AA0408

1
Out of stock

223B

SCREW-PAN-WS-CROS,5X16

223AA0516

1
Out of stock
