Description

Price

41034

DRUM-ASSY,REAR BRAKE

41034-0010

$78.86

41035

PANEL-ASSY-BRAKE,RR

41035-0084

$150.56

41048

SHOE-BRAKE

41048-1141

$21.67

41050

CAM-BRAKE

41050-1082

$8.03

41051

SEAL,BRAKE CAM

41051-001

$4.26

41053

LEVER-BRAKE CAM

41053-0021

$13.98

41068

AXLE,RR

41068-0016

$26.98

41085

INDICATOR

41085-1085

$21.80

42033

COUPLING-ASSY,RR HUB

42033-0598

$67.26

42036

SLEEVE,RR HUB COUPLING,L=29

42036-1292

$8.98

42041

SPROCKET-HUB,38T

42041-0082

$38.94

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,CASTLE,12MM

92015-1870

$6.36

92045

BEARING-BALL,#6004UG

92045-0717

$21.95

92045A

BEARING-BALL,6201ZC3/5C

92045-0975

$13.99

92049

SEAL-OIL,SC26X42X8

92049-1490

$3.29

92057A

CHAIN,DRIVE,DID420D3X90L

92057-0890

$32.62

92058A

JOINT-CHAIN,DRIVE

92058-0086

$12.53

92081

SPRING,BRAKE SHOE

92081-1766

$8.03

92151

BOLT,FLANGED,6X34

92151-1209

$3.71

92152

COLLAR,RR AXLE,LH,L=14.8

92152-1405

$9.43

92152A

COLLAR,RR AXLE,RH,L=32

92152-1406

$11.81

92152B

COLLAR,REAR BRAKE DRUM,L=58

92152-1409

$11.81

92154

BOLT,10X36

92154-2786

$10.49

92161

DAMPER,RR HUB SHOCK

92161-0084

$9.39

92210

NUT,LOCK,10MM

92210-1351

$7.65

550

PIN-COTTER,2.5X30

550S2530

$2.63

601A

BEARING-BALL,#6301UG

601B6301UG

$29.43

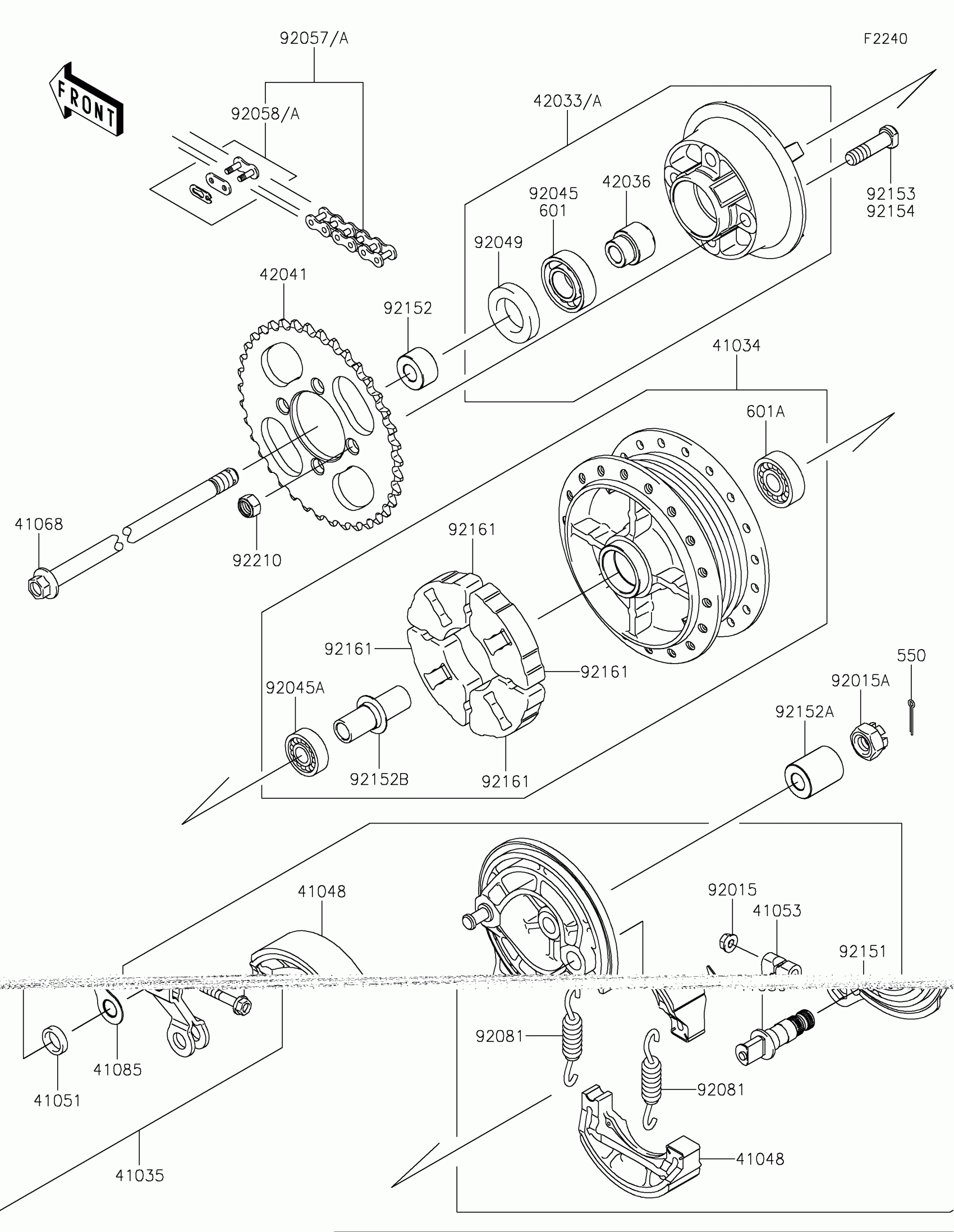

Kawasaki KLX®110R L Rear Hub Diagram
