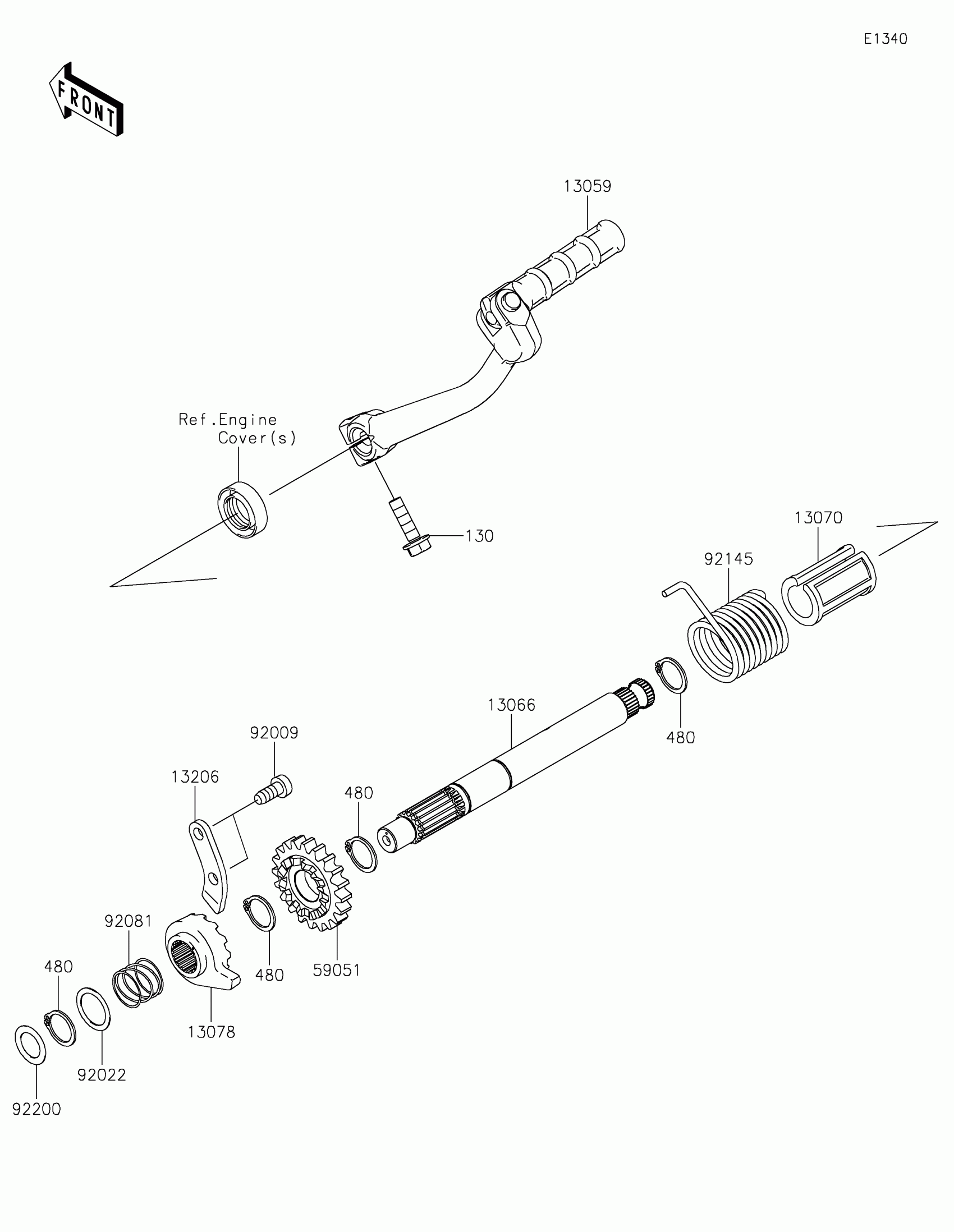

Kawasaki KLX®110R L Kickstarter Mechanism Diagram

Description

Price

13059

LEVER-KICK

13059-0046

$83.05

13066

SHAFT-KICK

13066-0062

$36.70

13070

GUIDE,KICK SHAFT

13070-1035

$7.98

13078

RATCHET

13078-0557

$20.11

13206

GUIDE-KICK

13206-1006

$7.98

59051

GEAR-SPUR

59051-0715

$32.35

92009

SCREW,TAPPING

92009-1104

$3.57

92022

WASHER,16.8X22X0.5

92022-315

$6.22

92081

SPRING,RATCHET

92081-122

$8.79

92145

SPRING,KICK STARTER

92145-0626

$5.25

92200

WASHER,13.2X20X0.5

92200-0571

$1.19

130

BOLT-FLANGED,6X22

130CA0622

$2.70

480

CIRCLIP-TYPE-C,16MM

480J1600

$4.31
