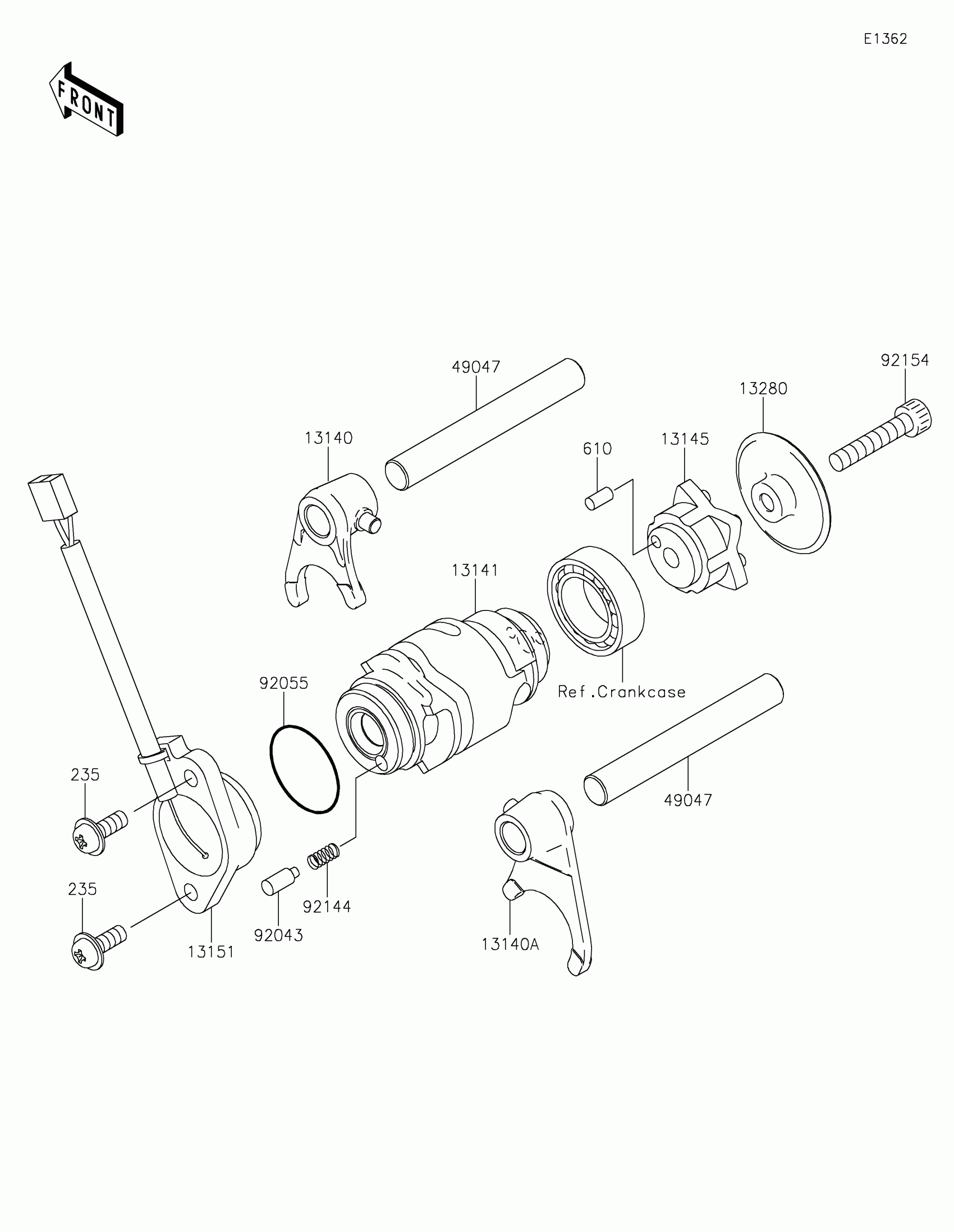

Kawasaki KLX®110R L Gear Change Drum/Shift Fork(s) Diagram

Description

Price

13140

FORK-SHIFT

13140-0701

$35.86

13140A

FORK-SHIFT

13140-0702

$90.35

13141

DRUM-CHANGE

13141-0603

$96.54

13145

CAM-CHANGE DRUM

13145-0049

$56.94

13151

SWITCH-COMP

13151-0051

$65.31

13280

HOLDER

13280-1228

$5.95

49047

ROD-SHIFT

49047-1058

$10.97

92043

92043-1385

$5.69

92055

RING-O,27.7X2.4

92055-091

$6.22

92144

SPRING

92144-1245

$4.26

92154

BOLT,SOCKET,6X30

92154-0388

$3.35

235

SCREW-PAN-WP-CROS,5X14

235AA0514

$3.86

610

ROLLER,4X8

610A0408

$4.31

Kawasaki KLX®110R L Gear Change Drum/Shift Fork(s) Diagram

FORK-SHIFT

FORK-SHIFT

DRUM-CHANGE

CAM-CHANGE DRUM

SWITCH-COMP

HOLDER

ROD-SHIFT

PIN

RING-O,27.7X2.4

SPRING

BOLT,SOCKET,6X30

SCREW-PAN-WP-CROS,5X14

ROLLER,4X8
