2026 Kawasaki KLX®110R L Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2026 Kawasaki KLX®110R L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

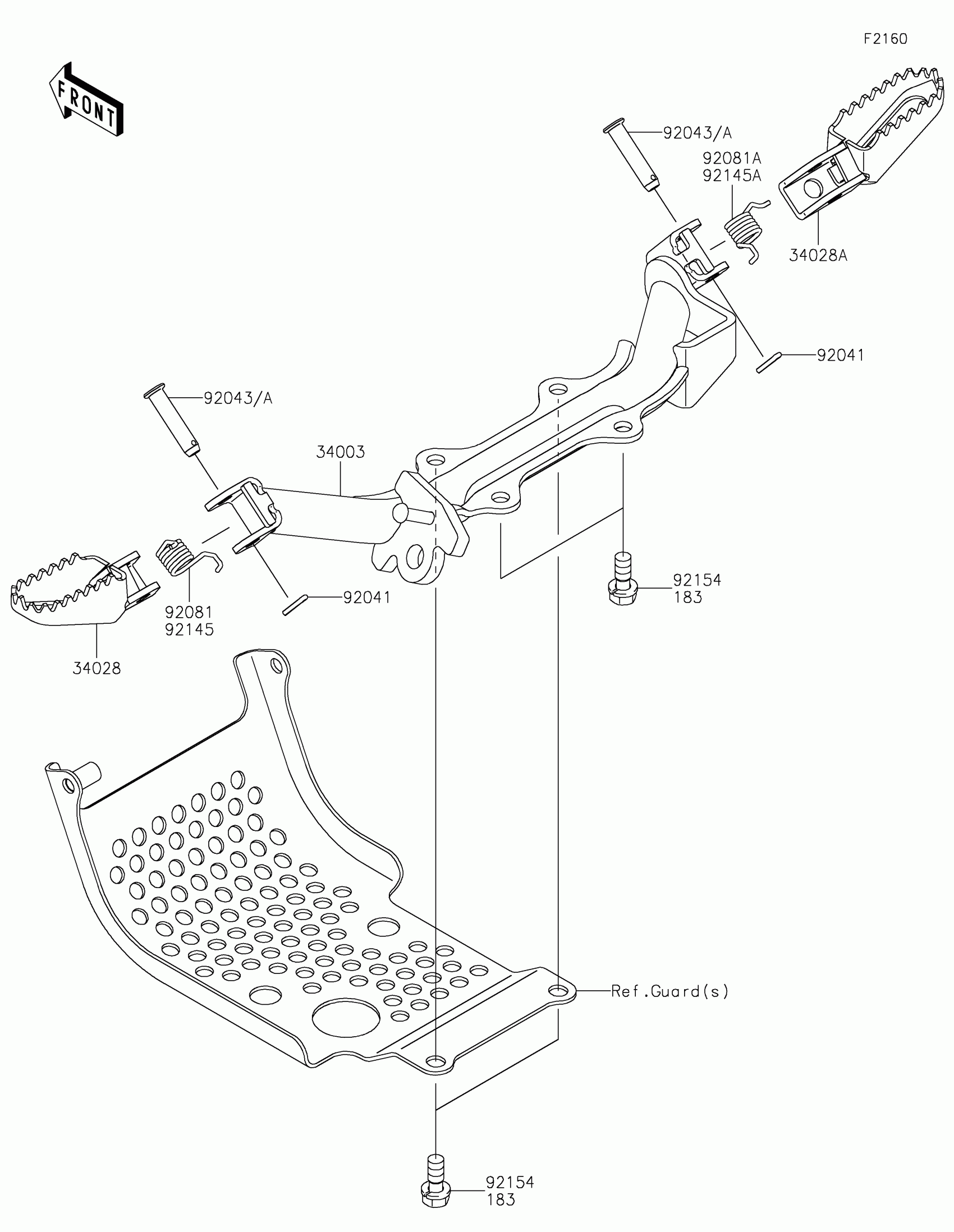

2026 Kawasaki KLX®110R L Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34003

HOLDER-STEP,P.SILVER

34003-0107-458

1
Out of stock

34028

STEP,LH

34028-1237

1
Out of stock

34028A

STEP,RH

34028-1238

1
Out of stock

92041

COTTER,2.5X15

92041-1051

1
Out of stock

92043A

PIN,8X32

92043-1799

1
Out of stock

92145

SPRING,FOOTREST,LH

92145-2309

1
Out of stock

92145A

SPRING,FOOTREST,RH

92145-2310

1
Out of stock

92154

BOLT,8X20

92154-2487

1
Out of stock
