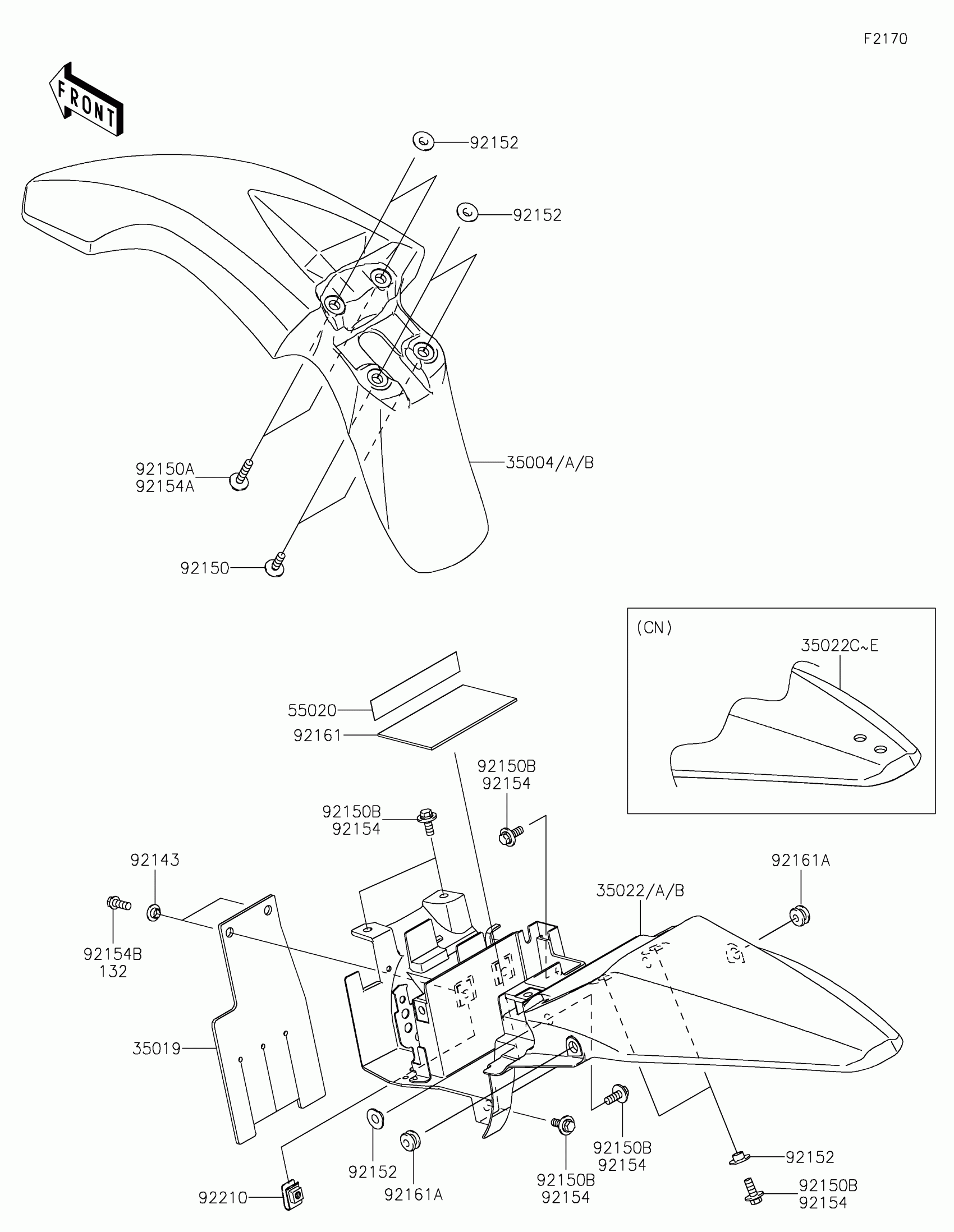

Kawasaki KLX®110R L Fenders Diagram

Description

Price

35004

FENDER-FRONT,B.WHITE

35004-0148-266

$53.64

35004A

FENDER-FRONT,L.GREEN

35004-0148-290

$54.68

35004B

FENDER-FRONT,B.GRAY

35004-0148-67A

$54.68

35019

FLAP

35019-0091

$14.78

35022B

FENDER-COMP-REAR,B.GRAY

35022-0079-67A

Unavailable

35022E

FENDER-COMP-REAR,B.GRAY

35022-0080-67A

Unavailable

55020

GUARD

55020-0552

$4.63

92143

COLLAR

92143-1331

$3.01

92150

BOLT,6X20

92150-1339

$3.35

92152

COLLAR

92152-0427

$5.91

92154

BOLT,FLANGED-SMALL,6X16

92154-1183

$1.32

92154A

BOLT,FLANGED,6X30

92154-2858

$3.85

92154B

BOLT,FLANGED,6X16

92154-7204

$1.37

92161

DAMPER

92161-0845

$7.15

92161A

DAMPER

92161-0864

$2.69

92210

NUT,6MM

92210-0218

$1.81
