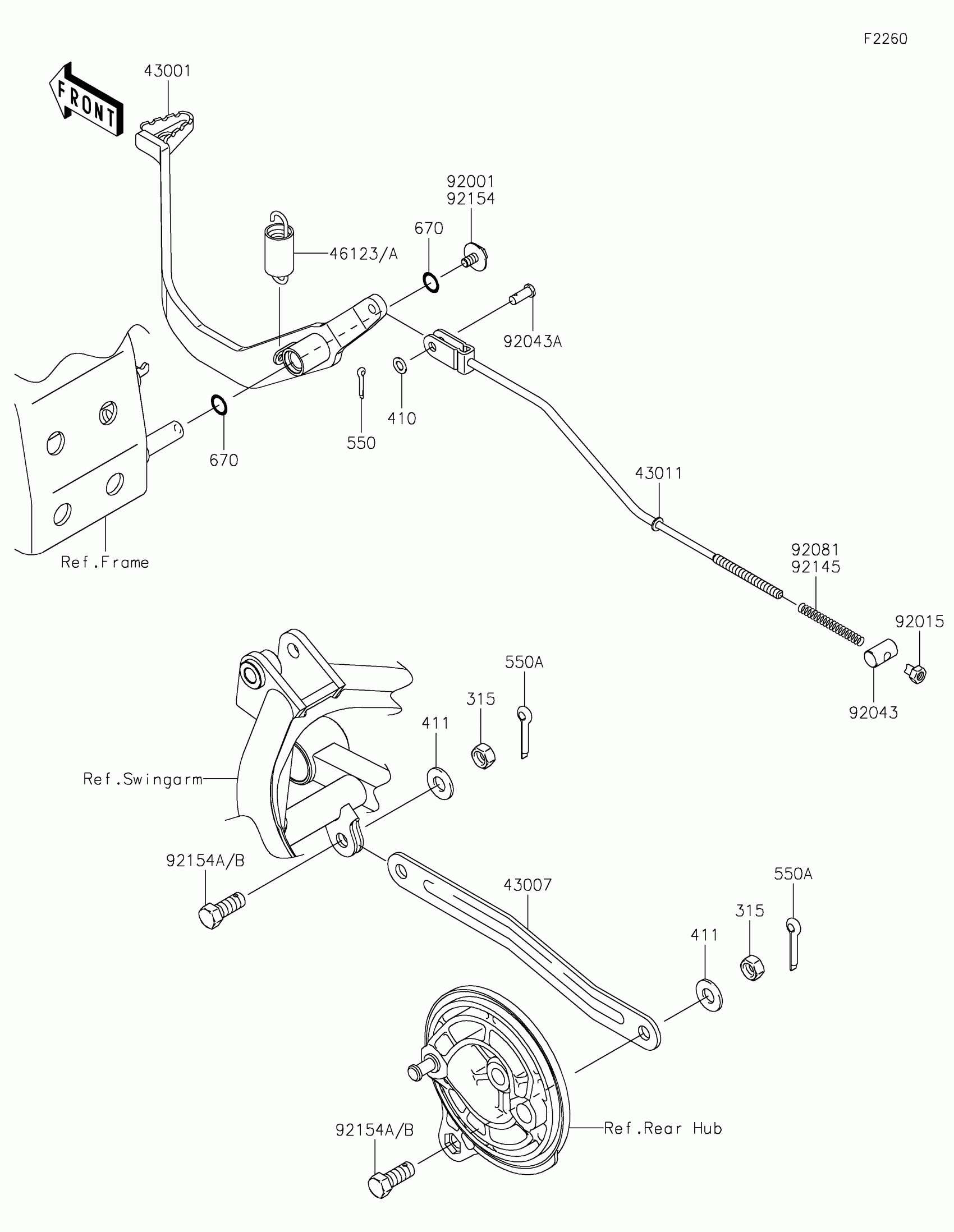

Kawasaki KLX®110R L Brake Pedal Diagram

Description

Price

43001

LEVER-BRAKE,PEDAL

43001-0122

$49.25

43007

ROD-TORQUE

43007-0015

$48.91

43011

ROD-BRAKE

43011-0010

$15.77

46123

SPRING-COMP,BRAKE PEDAL RETURN

46123-0013

$7.58

92015

NUT,BRAKE ROD

92015-042

$6.22

92043

PIN,BRAKE ROD

92043-0147

$6.38

92043A

PIN,6X12.8

92043-1542

$0.72

92145

SPRING,BRAKE ROD

92145-2311

$4.65

92154

BOLT,FLANGED,6X10

92154-2863

$10.28

92154B

BOLT,10X25

92154-7220

$5.28

315

NUT-HEX-FINE,10MM

315BA1000

$1.65

410

WASHER-PLAIN-SMALL

410AA0600

$1.31

411

WASHER-PLAIN,10MM

411AA1000

$0.96

550

PIN-COTTER,2.0X15

550AA2015

$1.12

550A

PIN-COTTER,2.0X20

550AA2020

$1.04

670

O RING,12MM

670B2012

$3.23
