2026 Kawasaki KLX®110R Kickstarter Mechanism Diagram

← All diagrams

Find the part on the Kickstarter Mechanism diagram for your 2026 Kawasaki KLX®110R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

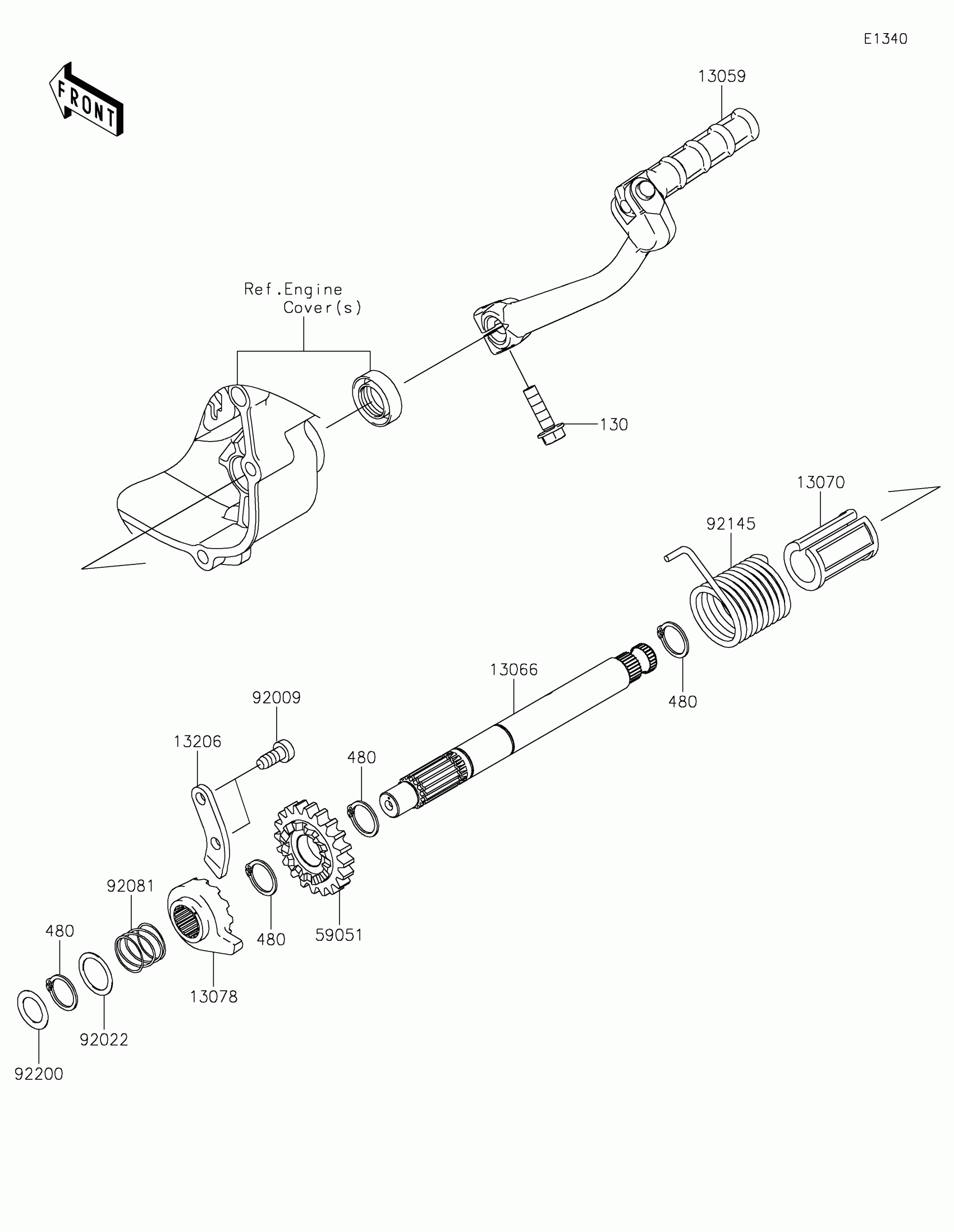

2026 Kawasaki KLX®110R Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13059

LEVER-KICK

13059-0046

1
Out of stock

13066

SHAFT-KICK

13066-0062

1
Out of stock

13070

GUIDE,KICK SHAFT

13070-1035

1
Out of stock

13078

RATCHET

13078-0557

1
Out of stock

13206

GUIDE-KICK

13206-1006

1
Out of stock

59051

GEAR-SPUR

59051-0715

1
Out of stock

92009

SCREW,TAPPING

92009-1104

1
Out of stock

92022

WASHER,16.8X22X0.5

92022-315

1
Out of stock

92081

SPRING,RATCHET

92081-122

1
Out of stock

92145

SPRING,KICK STARTER

92145-0626

1
Out of stock

92200

WASHER,13.2X20X0.5

92200-0571

1
Out of stock

130

BOLT-FLANGED,6X22

130CA0622

1

$2.20

In stock

480

CIRCLIP-TYPE-C,16MM

480J1600

1
Out of stock
