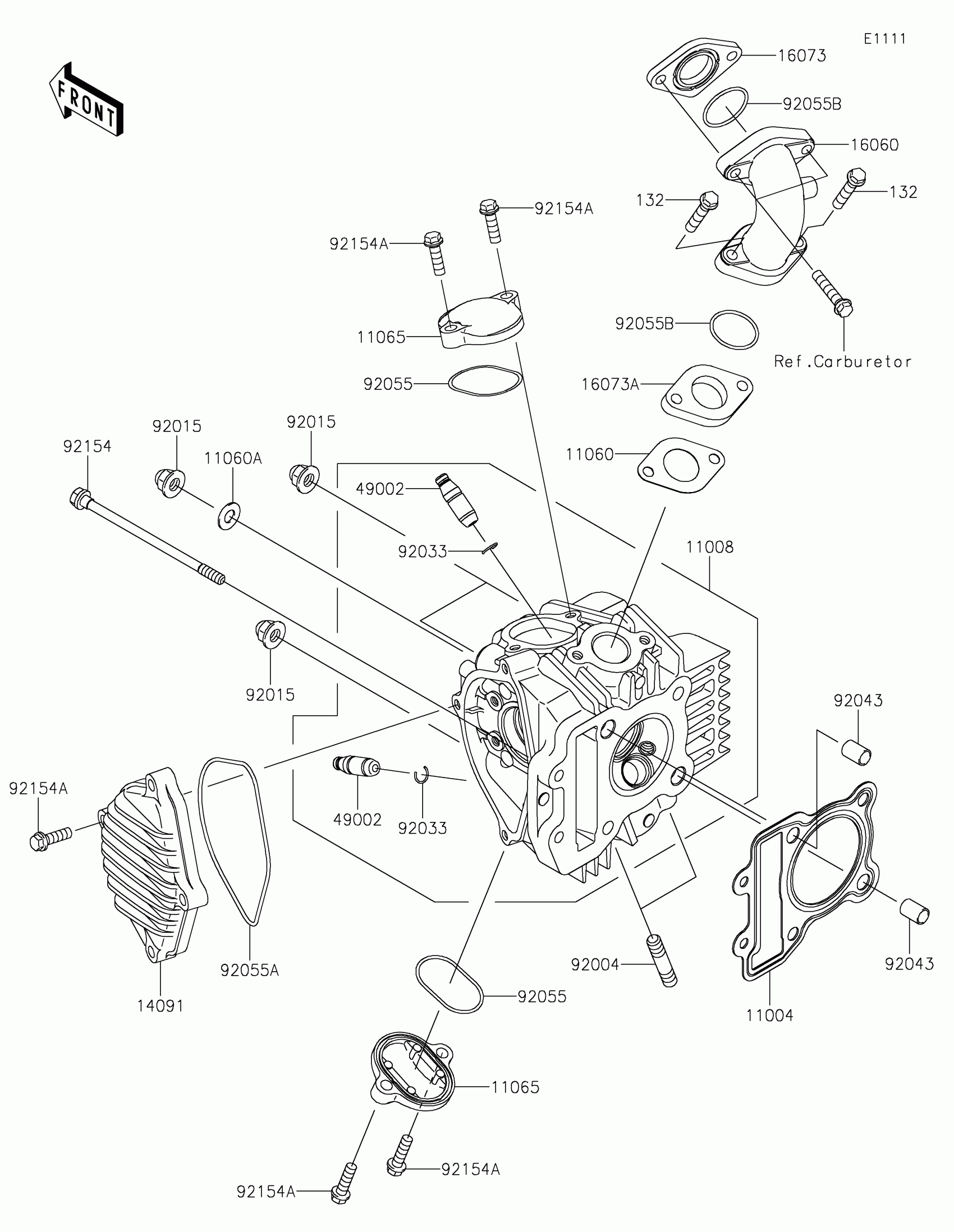

Find the part on the Cylinder Head diagram for your 2026 Kawasaki KLX®110R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki KLX®110R Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-1338

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-0890

1
Out of stock

11060

GASKET,INTAKE PIPE

11060-1753

1
Out of stock

11060A

GASKET

11060-1862

1
Out of stock

11065

CAP,VALVE,ADJUSTING

11065-0800

1
Out of stock

14091

COVER,CAMSHAFT

14091-1447

1
Out of stock

16060

PIPE-INTAKE

16060-0021

1
Out of stock

16073

INSULATOR,CARBURETOR

16073-1102

1
Out of stock

16073A

INSULATOR,HEAD

16073-1108

1
Out of stock

49002

GUIDE-VALVE

49002-0033

1
Out of stock

92004

STUD,8X28.5

92004-1284

1
Out of stock

92015

NUT,CAP,8MM

92015-1151

1
Out of stock

92033

RING-SNAP

92033-0789

1
Out of stock

92043

PIN,8.2X10X14

92043-1742

1
Out of stock

92055

RING-O,ADJUST CAP

92055-1231

1
Out of stock

92055A

RING-O,91X2.5

92055-1527

1
Out of stock

92055B

RING-O,25.5X2.0

92055-1528

1
Out of stock

92154

BOLT,6X106

92154-2693

1
Out of stock

92154A

BOLT,FLANGED,6X20

92154-7209

1
Out of stock

132

1

$2.92

In stock
