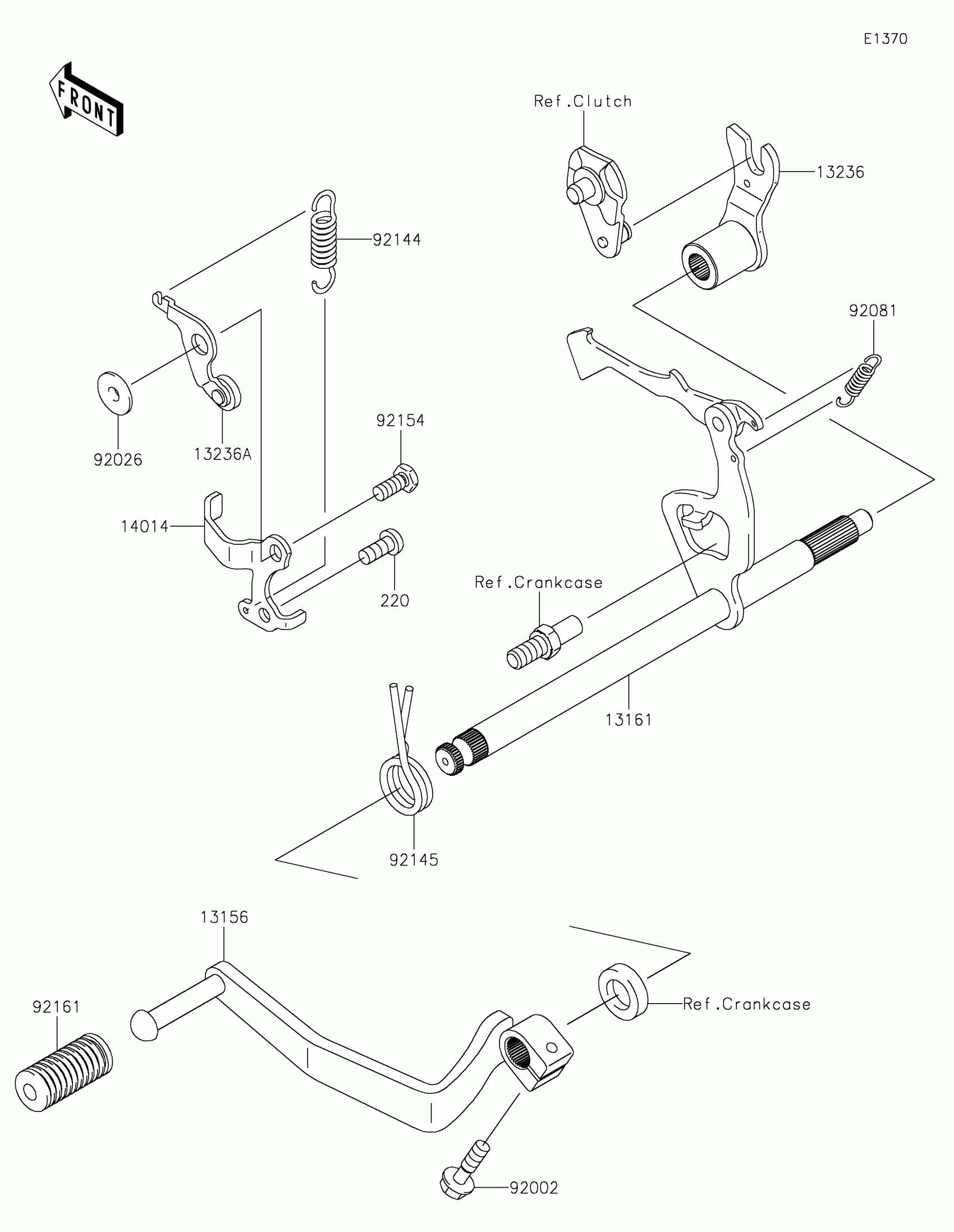

Kawasaki KLX®110R Gear Change Mechanism Diagram

Description

Price

13156

LEVER-CHANGE

13156-0144

$31.77

13161

LEVER-COMP-CHANGE SHAFT

13161-0019

$78.21

13236

LEVER-COMP

13236-0717

$8.55

13236A

LEVER-COMP,POSITION

13236-1256

$9.21

14014

PLATE-POSITION

14014-0037

$8.08

92002

BOLT,6X20

92002-1237

$4.31

92026

SPACER

92026-0750

$5.52

92081

SPRING,CHANGE LEVER

92081-076

$5.46

92144

SPRING

92144-1590

$4.82

92145

SPRING

92145-0757

$6.89

92154

BOLT,6X14

92154-0788

$1.19

92161

DAMPER,CHANGE PEDAL

92161-2409

$5.00

220

SCREW-PAN-CROSS,6X14

220AA0614

$1.48
