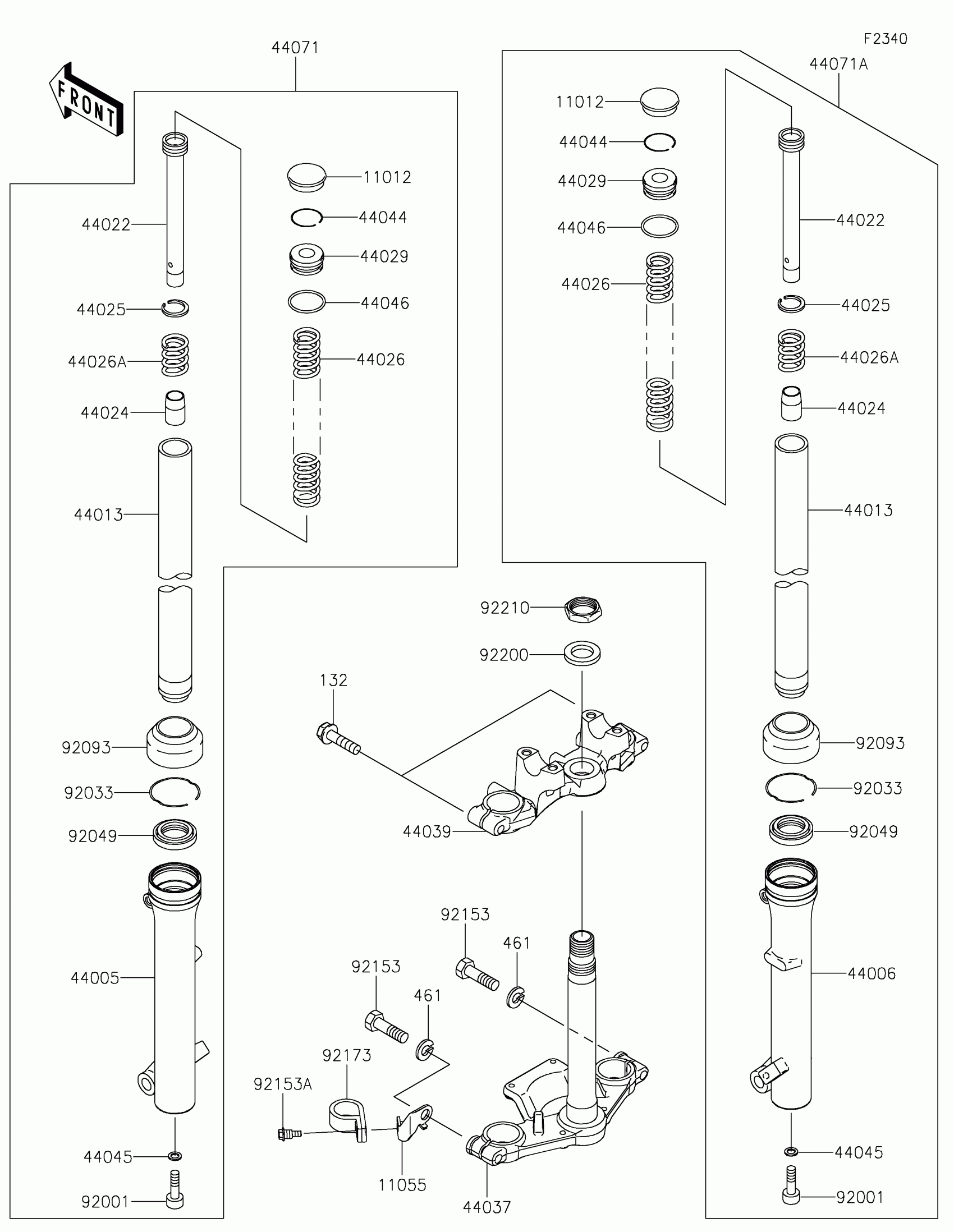

Kawasaki KLX®110R Front Fork Diagram
#
Description
Price
11012
CAP,RUBBER,FORK TOP
11012-1067
$6.51
11055
BRACKET
11055-1631
$18.13
44005
PIPE-LEFT FORK OUTER,P.SILVER
44005-0039-458
$220.08
44006
PIPE-RIGHT FORK OUTER,P.SILVER
44006-0038-458
$220.08
44013
PIPE-FORK INNER
44013-0018
$200.92
44022
CYLINDER-FORK
44022-1346
$66.83
44024
CAP-OIL-LOCK
44024-1071
$21.29
44025
RING-FORK PISTON
44025-1061
$9.34
44026
SPRING-FRONT FORK
44026-0147
$34.50
44026A
SPRING-FRONT FORK,REBOUND
44026-060
$6.23
44029
SEAT-FORK SPRING
44029-022
$11.61
44037
HOLDER-FORK UNDER,P.SILVER
44037-0105-458
$208.20
44039
HOLDER-FORK UPPER
44039-0093
$123.72
44044
RING-SNAP
44044-023
$5.46
44045
GASKET,FORK CYLINDER BOLT
44045-051
$6.16
44046
RING-O
44046-025
$6.57
44071
DAMPER-ASSY,FORK,LH,P.SILVER
44071-1443-458
$399.09
44071A
DAMPER-ASSY,FORK,RH,P.SILVER
44071-1444-458
$399.09
92001
BOLT,FORK CYLINDER
92001-1464
$6.22
92033
RING-SNAP,FORK OUTER TUBE
92033-1028
$4.65
92049
SEAL-OIL,FORK OUTER TUBE
92049-1069
$19.64
92093
DUST SHIELD,FORK
92093-1054
$17.44
92153
BOLT,10X35
92153-1199
$5.23
92153A
BOLT,FLANGED
92153-1397
$3.90
92173
CLAMP
92173-0166
$10.74
92200
WASHER,STEERING STEM
92200-0517
$7.60
92210
NUT,STEERING STEM,22MM
92210-1521
$16.69
132
BOLT-FLANGED-SMALL,8X35
132BA0835
$4.76
461
WASHER-SPRING,10MM
461DA1000
$0.68
