Description

Price

11061

GASKET,GENERATOR COVER

11061-0257

$18.56

11061A

GASKET,CLUTCH COVER

11061-0426

$23.23

12053

GUIDE-CHAIN

12053-0164

$15.47

13270

PLATE

13270-1800

$0.85

14026

COVER-CHAIN

14026-0070

$29.43

14031

COVER-GENERATOR,SILVER

14031-0119-GS

$83.05

14032

COVER-CLUTCH

14032-0129

$98.59

14092

COVER

14092-0029

$18.56

16115

CAP-OIL FILLER

16115-1068

$5.74

52005

GAUGE,OIL LEVEL

52005-0019

$14.76

92049

SEAL-OIL,S 12 28 7 HS

92049-0051

$5.65

92051

SEAL-OIL,TB16267

92051-003

Unavailable

92055

RING-O,14.8X2.4

92055-0194

$5.29

92055A

RING-O,31.5X2.6

92055-049

$4.31

92055B

RING-O,25.7X2.4

92055-0763

$5.65

92066

PLUG,14X10

92066-0724

$1.62

92066A

PLUG,GENERATOR COVER CAP

92066-1565

$7.27

92154

BOLT,SOCKET,5X10

92154-0789

$2.32

92154A

BOLT,FLANGED,6X35

92154-1297

$2.26

92154B

BOLT,FLANGED,6X20

92154-7209

$4.12

92154C

BOLT,FLANGED,6X25

92154-7210

$5.39

92154D

BOLT,FLANGED,6X35

92154-7211

$4.12

92154E

BOLT,FLANGED,6X45

92154-7212

$4.69

92172

SCREW,4X10

92172-1237

$3.29

92173

CLAMP,DRAIN TUBE

92173-1067

$14.27

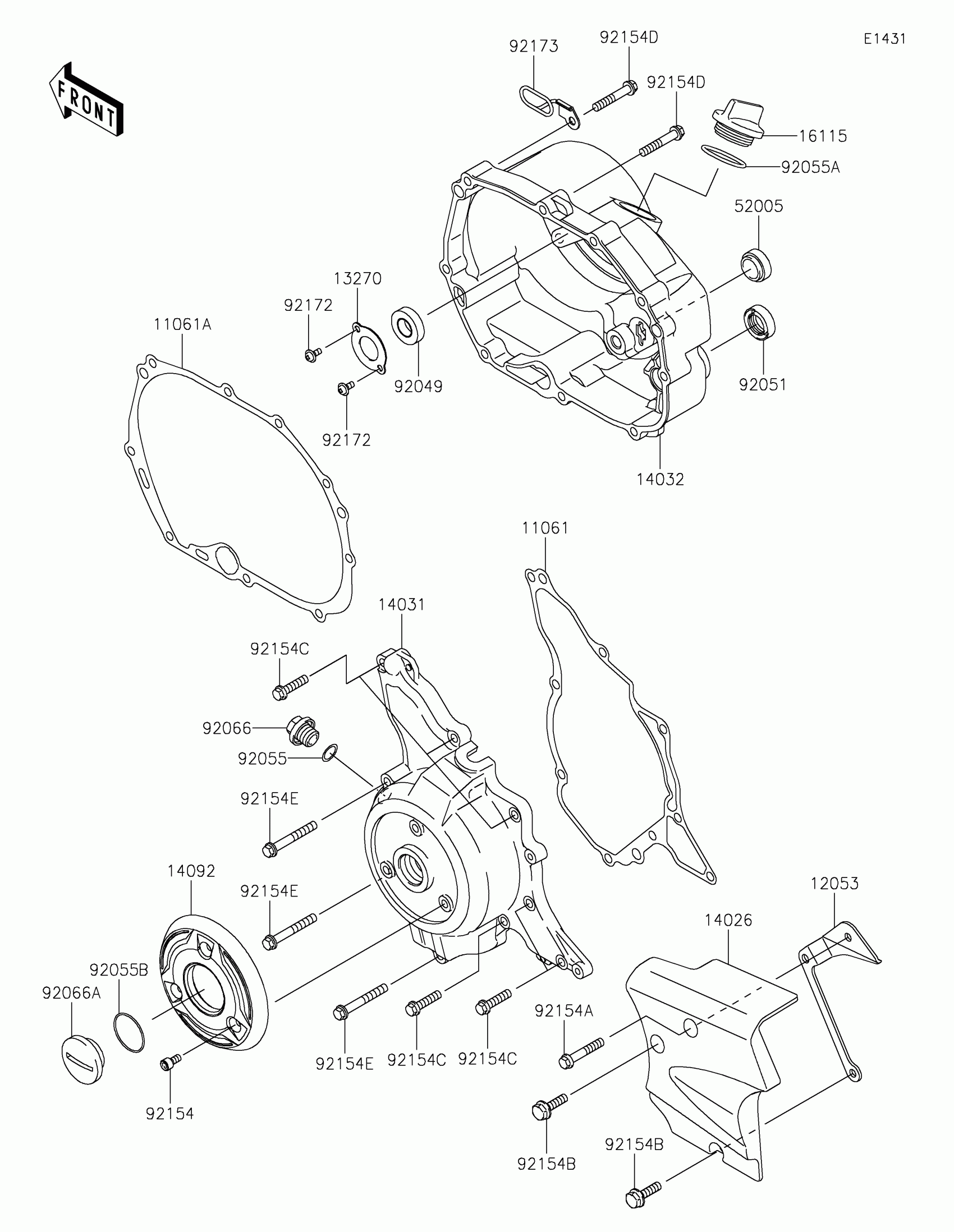

Kawasaki KLX®110R Engine Cover(s) Diagram

GASKET,GENERATOR COVER

GASKET,CLUTCH COVER

GUIDE-CHAIN

PLATE

COVER-CHAIN

COVER-GENERATOR,SILVER

COVER-CLUTCH

COVER

CAP-OIL FILLER

GAUGE,OIL LEVEL

SEAL-OIL,S 12 28 7 HS

SEAL-OIL,TB16267

RING-O,14.8X2.4

RING-O,31.5X2.6

RING-O,25.7X2.4

PLUG,14X10

PLUG,GENERATOR COVER CAP

BOLT,SOCKET,5X10

BOLT,FLANGED,6X35

BOLT,FLANGED,6X20

BOLT,FLANGED,6X25

BOLT,FLANGED,6X35

BOLT,FLANGED,6X45

SCREW,4X10

CLAMP,DRAIN TUBE
