Description

Price

13086

WHEEL-CLUTCH

13086-1065

$29.44

13087

HUB-CLUTCH

13087-1151

$40.67

13088

PLATE-FRICTION

13088-1142

$12.53

13089

PLATE-CLUTCH

13089-1087

$12.80

13091

HOLDER,CLUTCH

13091-1782

$7.90

13091A

HOLDER

13091-1787

$12.92

13095

HOUSING-COMP-CLUTCH

13095-0128

$99.35

13095A

HOUSING-COMP-CLUTCH

13095-1403

$95.50

13102

RELEASE-COMP-CLUTCH

13102-1135

$55.00

13102A

RELEASE-COMP-CLUTCH

13102-1136

$55.00

13193

CLUTCH-ASSY-ONEWAY

13193-0008

$103.61

14020

RETAINER

14020-0576

$17.63

41036

HUB-ASSY,CLUTCH

41036-0261

$117.33

92026

SPACER

92026-1605

$4.20

92045

BEARING-BALL,#628

92045-1123

$23.34

92145

SPRING

92145-0744

$4.22

92152

COLLAR,17X22X22.7

92152-0393

$16.97

92152A

COLLAR

92152-0833

$11.44

92153

BOLT,CLUTCH RELEASE

92153-0525

$10.30

92210

NUT,14MM

92210-1374

$9.71

92210A

NUT,8MM

92210-1613

$1.47

112

BOLT-UPSET,5X20

112BA0520

$5.52

670

O RING,8MM

670B1508

$1.29

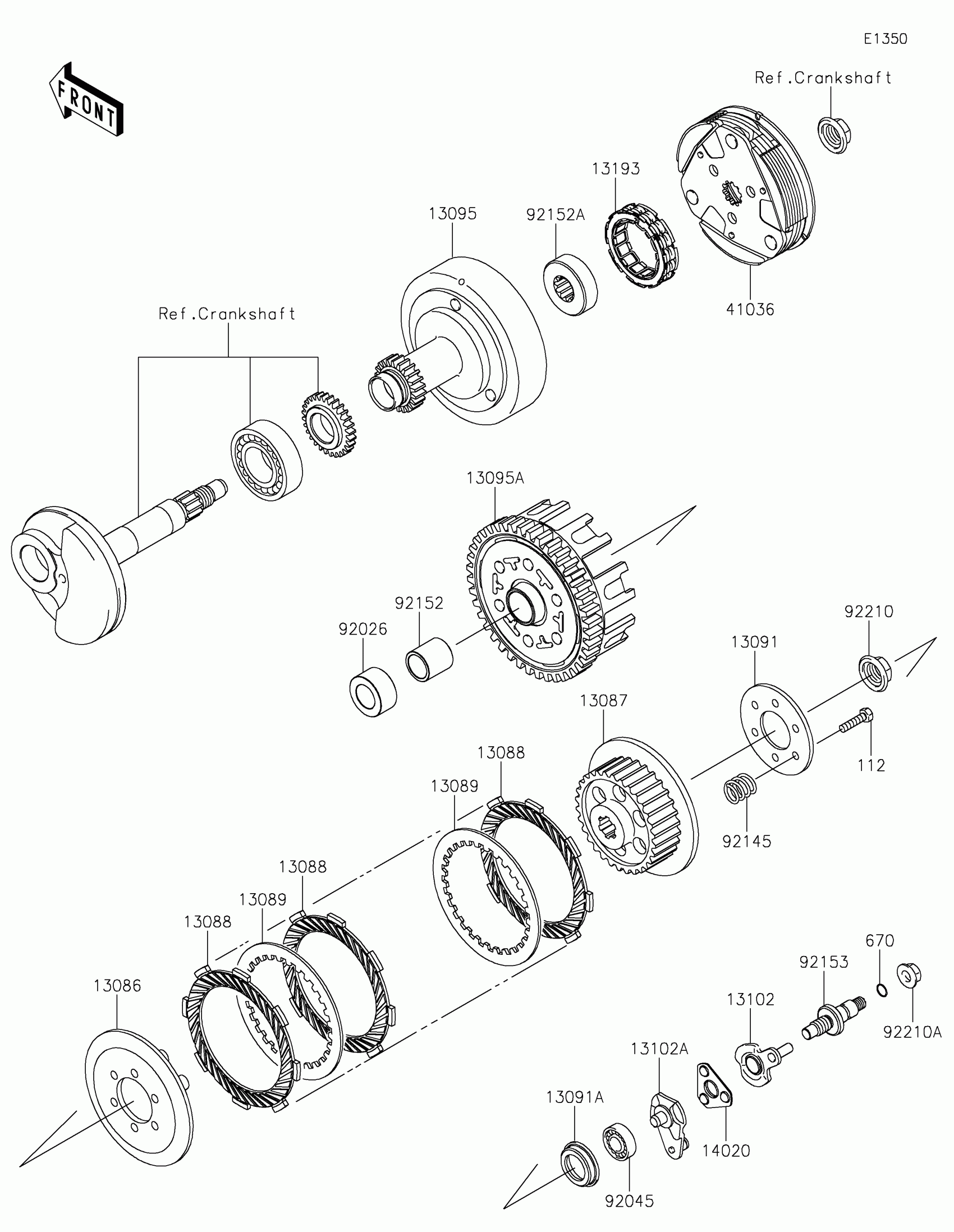

Kawasaki KLX®110R Clutch Diagram

WHEEL-CLUTCH

HUB-CLUTCH

PLATE-FRICTION

PLATE-CLUTCH

HOLDER,CLUTCH

HOLDER

HOUSING-COMP-CLUTCH

HOUSING-COMP-CLUTCH

RELEASE-COMP-CLUTCH

RELEASE-COMP-CLUTCH

CLUTCH-ASSY-ONEWAY

RETAINER

HUB-ASSY,CLUTCH

SPACER

BEARING-BALL,#628

SPRING

COLLAR,17X22X22.7

COLLAR

BOLT,CLUTCH RELEASE

NUT,14MM

NUT,8MM

BOLT-UPSET,5X20

O RING,8MM
