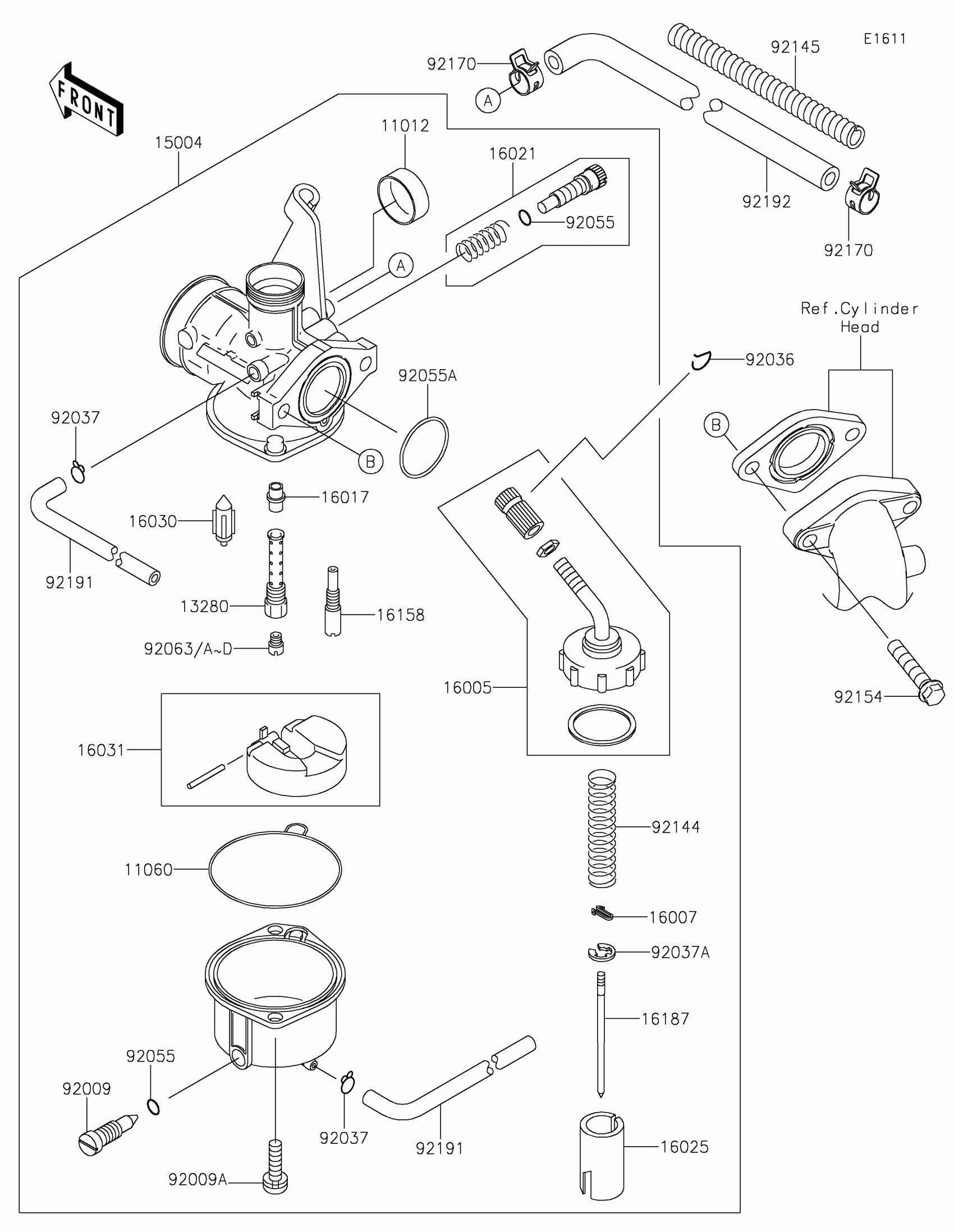

Kawasaki KLX®110R Carburetor Diagram

#

Description
Price

11012

CAP,CHOKE

11012-1940

Unavailable

11060

GASKET,FLOAT CHAMBER

11060-1700

Unavailable

13280

HOLDER,NEEDLE JET

13280-0359

$28.52

15004

CARBURETOR-ASSY

15004-1105

$180.15

16005

TOP-CHAMBER

16005-1091

$23.76

16007

SEAT-SPRING

16007-1103

$7.27

16017

JET-NEEDLE

16017-1434

$47.13

16021

SCREW-THROTTLE STOP

16021-1241

$17.50

16025

VALVE-THROTTLE,CA3.0

16025-1209

$98.91

16030

VALVE-FLOAT,FLOAT

16030-0002

Unavailable

16031

FLOAT

16031-1088

$52.55

16158

JET-SLOW,#40

16158-0005

$17.12

16187

NEEDLE-JET,NCFA

16187-1228

$35.93

92009

SCREW,DRAIN

92009-1057

$7.84

92009A

SCREW

92009-1750

$4.39

92036

RING-SNAP

92036-018

$3.89

92037

CLAMP,TUBE

92037-1142

$4.31

92037A

CLAMP,JET NEEDLE

92037-1401

$4.31

92055

RING-O

92055-1053

$4.69

92055A

RING-O

92055-1541

$2.78

92063

JET-MAIN,#78

92063-1393

$13.31

92063A

JET-MAIN,#72

92063-1394

Unavailable

92063B

JET-MAIN,#75

92063-1395

Unavailable

92063C

JET-MAIN,#80

92063-1396

Unavailable

92063D

JET-MAIN,#82

92063-1397

Unavailable

92144

SPRING,THROTTLE

92144-1875

$16.26

92145

SPRING,HOSE PROTECTER

92145-2312

$6.12

92154

BOLT,FLANGED,6X28

92154-2883

$2.97

92170

CLAMP

92170-1872

$3.98

92191

TUBE,3.5X6.5X418

92191-1735

$18.20

92192

TUBE,5.8X10.8X277

92192-0583

$74.54
