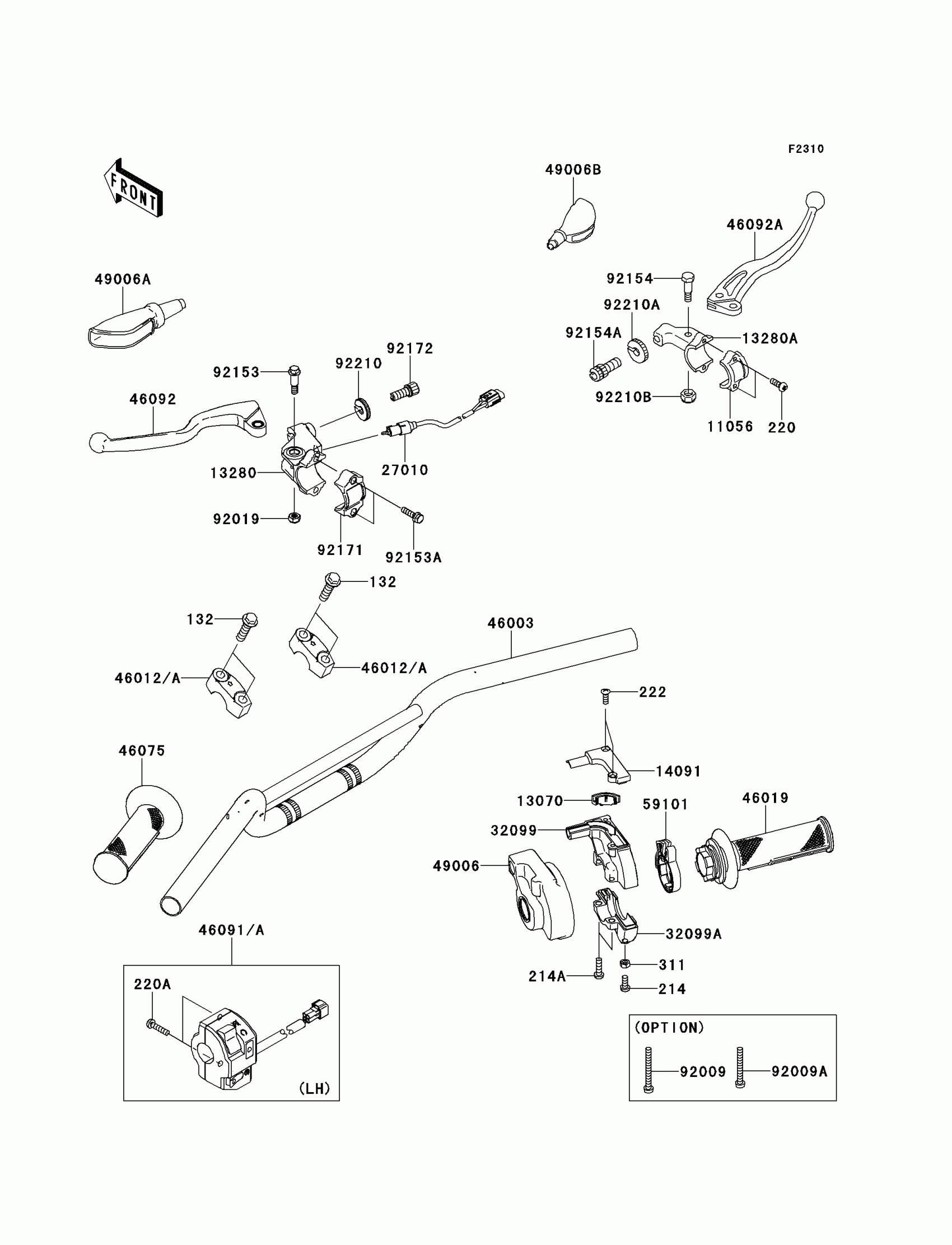

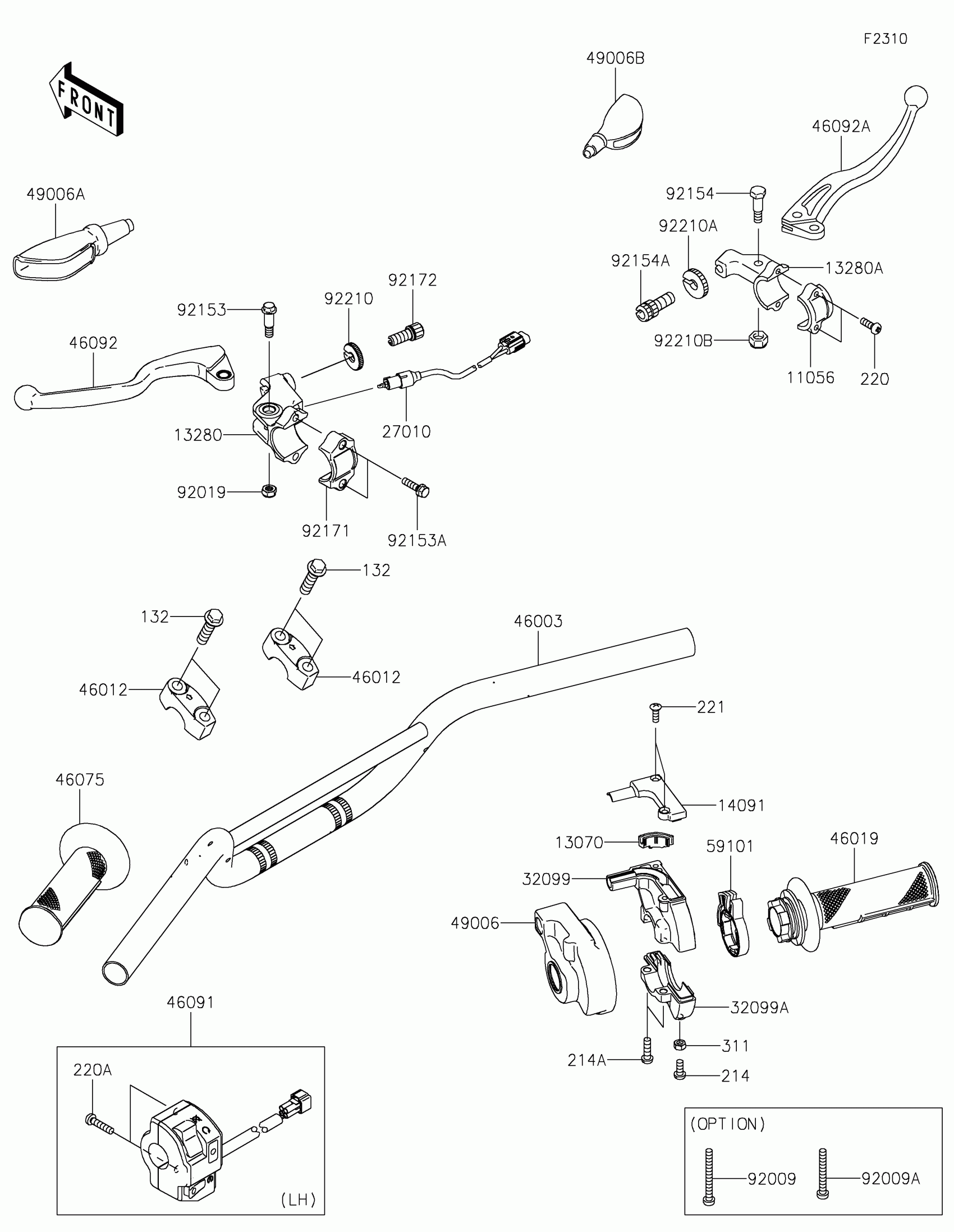

Kawasaki KLX®110L Handlebar Diagram
#
11056
BRACKET,LEVER HOLDER
11056-0150
$16.90
13070
GUIDE,THROTTLE
13070-0083
$7.69
132
BOLT-FLANGED-SMALL,8X30
132BA0830
$4.45
13280
HOLDER,CLUTCH LEVER
13280-0256
$30.76
13280A
HOLDER,BRAKE LEVER
13280-0362
$44.47
14091
COVER,THROTTLE CASE,UPP
14091-0873
$8.28
214
SCREW-PAN+-,5X12
214AB0512
$2.78
214A
SCREW-PAN+-,5X18
214AB0518
$2.61
220
SCREW-PAN-CROS,5X14
220AA0514
$4.43
220A
SCREW-PAN-CROS,5X22
220AB0522
$1.11
221
SCREW-CSK-CROS,4X12
221AB0412
$2.67
27010
SWITCH,CLUTCH
27010-0109
$34.82
311
NUT-HEX,5MM
311AB0500
$0.43
32099
CASE,THROTTLE,UPP
32099-0037
$22.01
32099A
CASE,THROTTLE,LWR
32099-0045
$18.74
46003
HANDLE,P.SILVER
46003-0175-458
$84.35
46012
HOLDER-HANDLE,UPP,P.SILVER
46012-0101-458
$24.87
46019
GRIP-ASSY,THROTTLE
46019-0023
$29.91
46075
GRIP,LH
46075-0072
$14.62
46091
HOUSING-ASSY-CONTROL,LH
46091-0226
$104.39
46092
LEVER-GRIP,CLUTCH
46092-0026
$19.99
46092A
LEVER-GRIP,BRAKE
46092-0037
$16.32
49006
BOOT,THROTTLE CASE
49006-0075
$13.48
49006A
BOOT,LEVER HOLDER
49006-0080
$17.48
49006B
BOOT,LEVER HOLDER
49006-1017
$18.72
59101
REEL,THROTTLE
59101-0005
$11.82
92009
SCREW,5X47
92009-1989
$2.41
92009A
SCREW,5X42
92009-1998
$2.41
92019
NUT,LOCK,6MM
92019-008
$4.26
92153
BOLT,6MM
92153-1897
$8.68
92153A
BOLT,5X20
92153-1898
$4.65
92154
BOLT,LEVER SET
92154-0329
$7.24
92154A
BOLT,CABLE ADJUSTER
92154-0330
$8.08
92171
CLAMP,LEVER HOLDER
92171-1671
$8.68
92172
SCREW,CABLE ADJUST,8MM
92172-0330
$3.90
92210
NUT,CABLE ADJUST
92210-0411
$5.65
92210A
NUT
92210-0593
$8.08
92210B
NUT,LOCK,6MM
92210-0594
$4.26
