Description

Price

132

BOLT-FLANGED-SMALL,8X35

132BA0835

$4.76

461

WASHER-SPRING,10MM

461DA1000

$0.68

11012

CAP,RUBBER,FORK TOP

11012-1067

$6.51

11055

BRACKET

11055-1631

$18.13

44005

PIPE-LEFT FORK OUTER,P.SILVER

44005-0078-458

$220.11

44006

PIPE-RIGHT FORK OUTER,P.SILVER

44006-0072-458

$220.11

44013

PIPE-FORK INNER

44013-0144

$205.43

44022

CYLINDER-FORK

44022-0027

$64.71

44024

CAP-OIL-LOCK

44024-1071

$21.29

44025

RING-FORK PISTON

44025-1061

$9.34

44026

SPRING-FRONT FORK

44026-0145

$34.50

44026A

SPRING-FRONT FORK,REBOUND

44026-060

$6.23

44029

SEAT-FORK SPRING

44029-022

$11.61

44037

HOLDER-FORK UNDER,P.SILVER

44037-0105-458

$208.20

44039

HOLDER-FORK UPPER

44039-0093

$123.72

44044

RING-SNAP

44044-023

$5.46

44045

GASKET,FORK CYLINDER BOLT

44045-051

$6.16

44046

RING-O

44046-025

$6.57

44071

DAMPER-ASSY,FORK,LH,P.SILVER

44071-0653-458

$399.09

44071A

DAMPER-ASSY,FORK,RH,P.SILVER

44071-0654-458

$399.09

92001

BOLT,FORK CYLINDER

92001-1464

$6.22

92015

NUT,STEERING STEM,22MM

92015-1653

$16.69

92033

RING-SNAP,FORK OUTER TUBE

92033-1028

$4.65

92049

SEAL-OIL,FORK OUTER TUBE

92049-1069

$19.64

92093

DUST SHIELD,FORK

92093-1054

$17.44

92153

BOLT,10X35

92153-1199

$5.23

92153A

BOLT,FLANGED

92153-1397

$3.90

92173

CLAMP

92173-0166

$10.74

92200

WASHER,STEERING STEM

92200-0517

$7.60

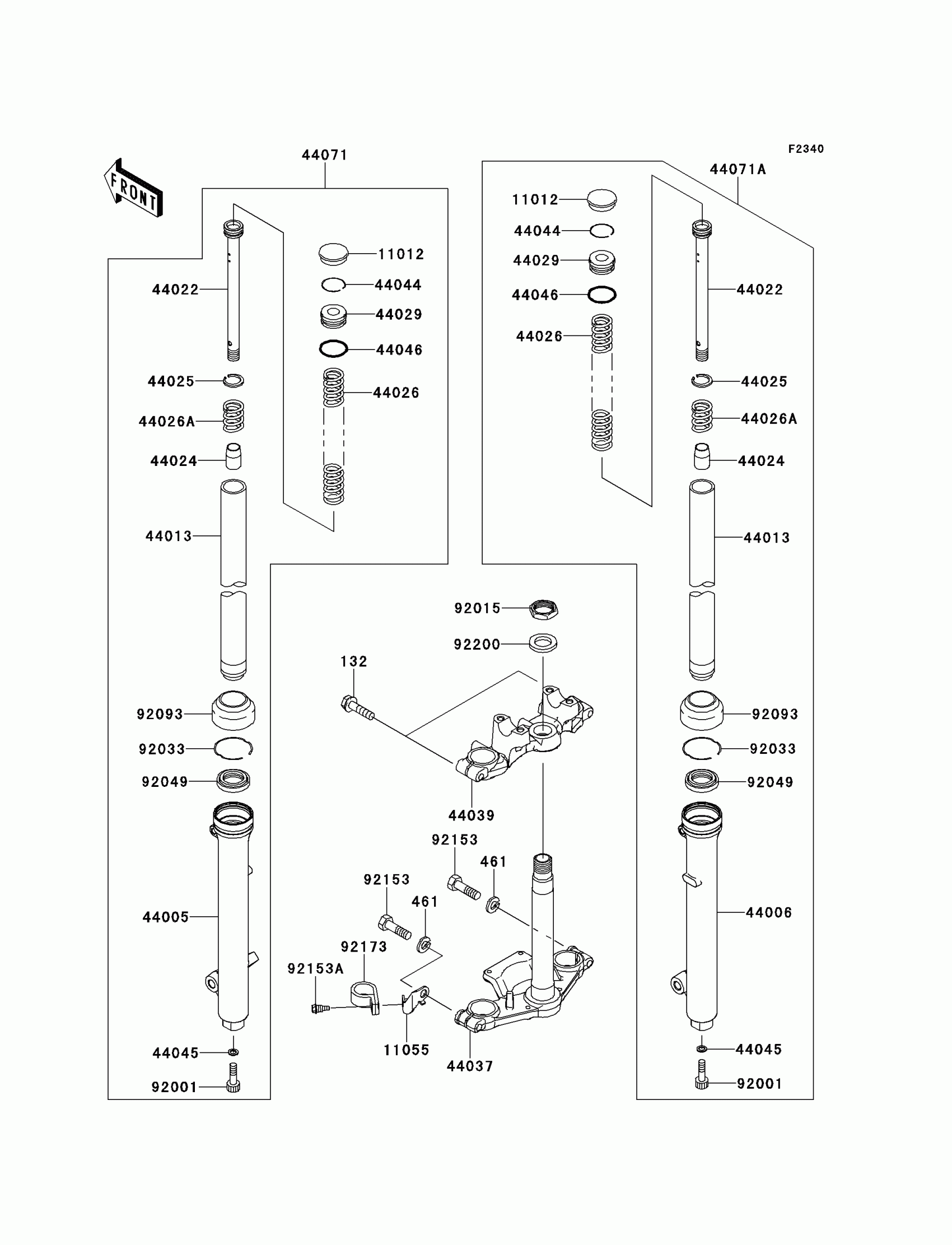

Kawasaki KLX®110L Front Fork Diagram
