2014 Kawasaki KLX®110L Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2014 Kawasaki KLX®110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

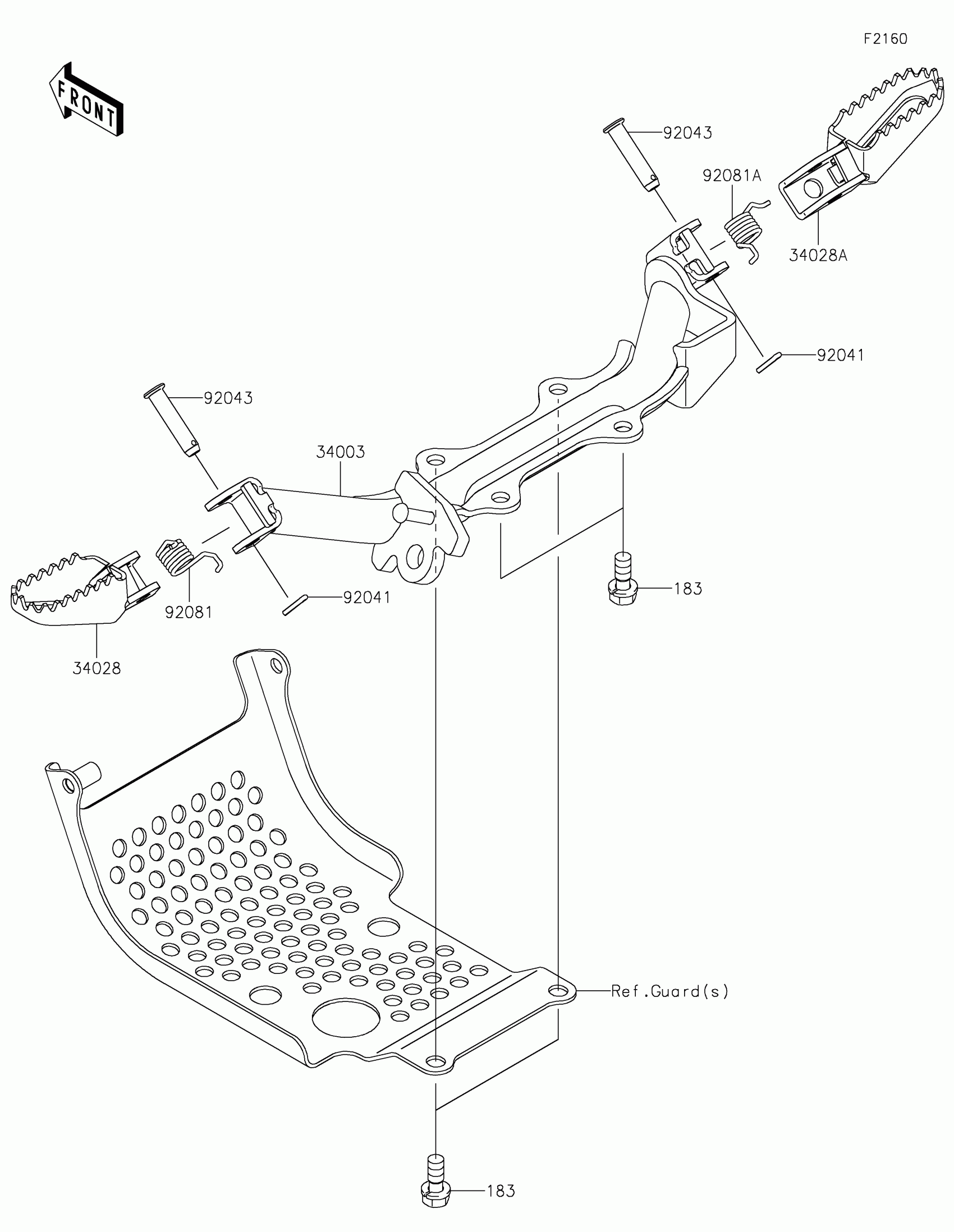

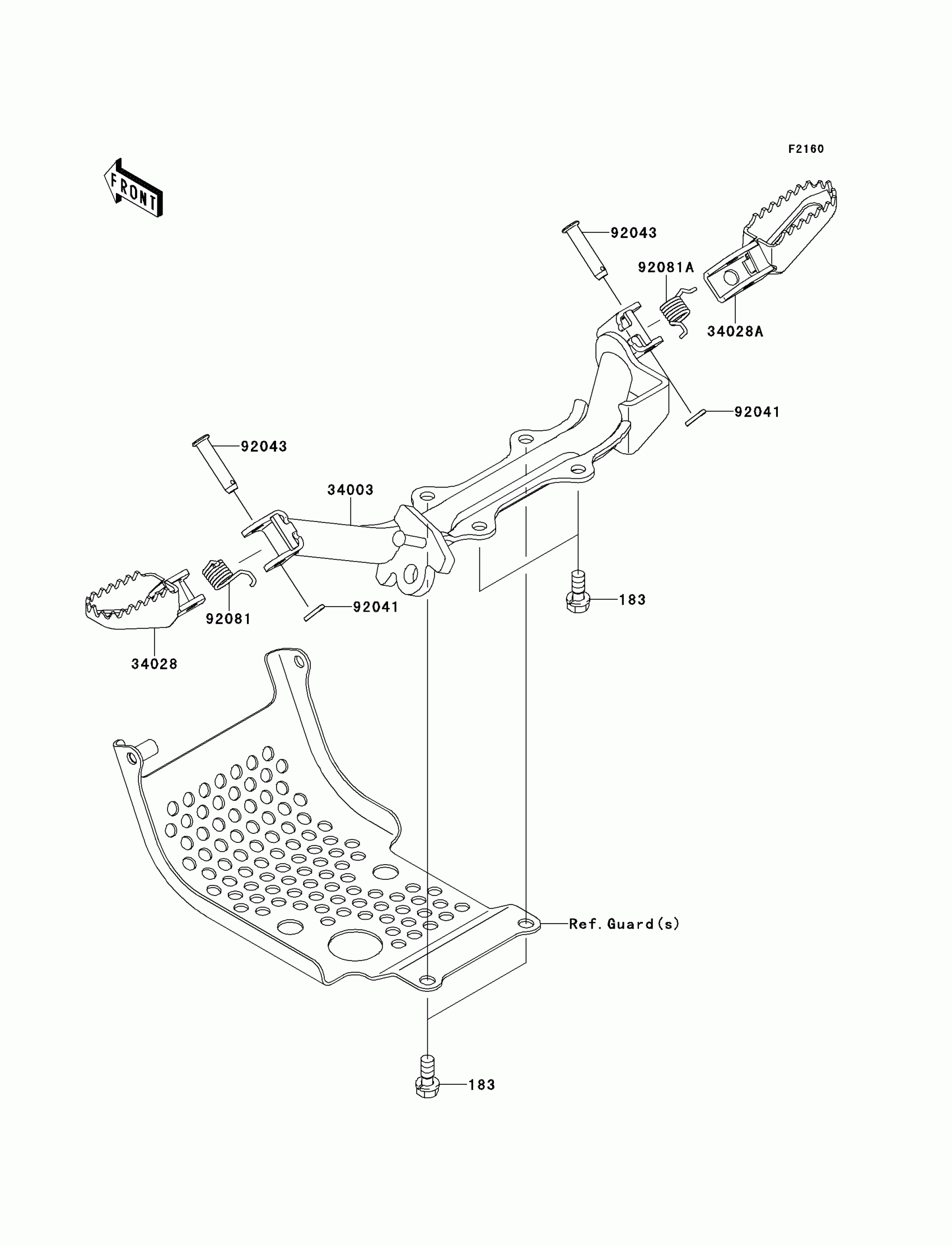

2014 Kawasaki KLX®110L Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

183

1

$3.29

In stock

34003

HOLDER-STEP,P.SILVER

34003-0107-458

1

$107.86

In stock

34028

STEP,LH

34028-1237

1

$33.78

In stock

34028A

STEP,RH

34028-1238

1

$36.58

In stock

92041

COTTER,2.5X15

92041-1051

1

$4.42

In stock

92043

PIN,8X32

92043-1143

1

$9.29

In stock

92081

SPRING,FOOTREST,LH

92081-1491

1

$5.15

In stock

92081A

SPRING,FOOTREST,RH

92081-1543

1

$5.15

In stock
