2014 Kawasaki KLX®110L Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2014 Kawasaki KLX®110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

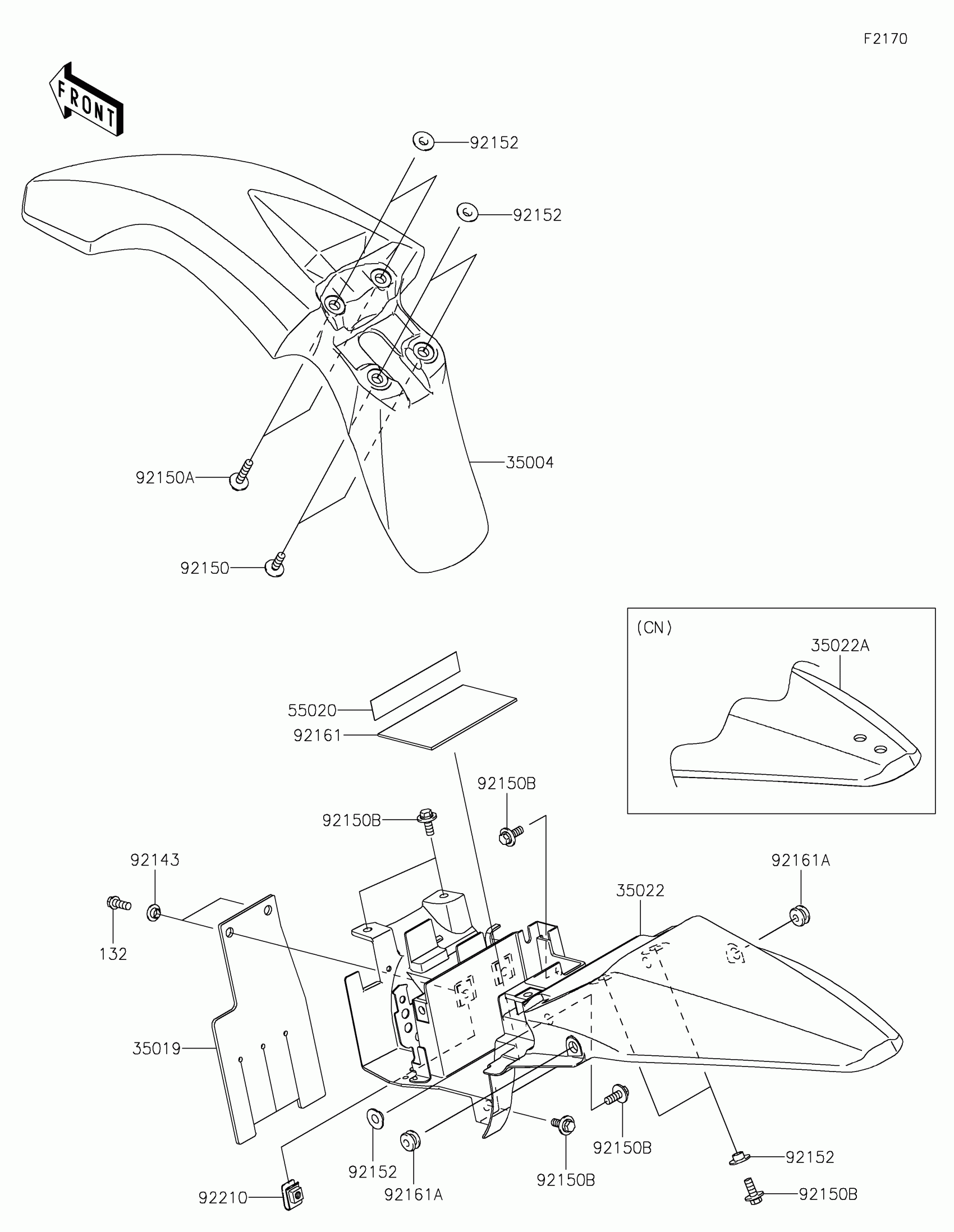

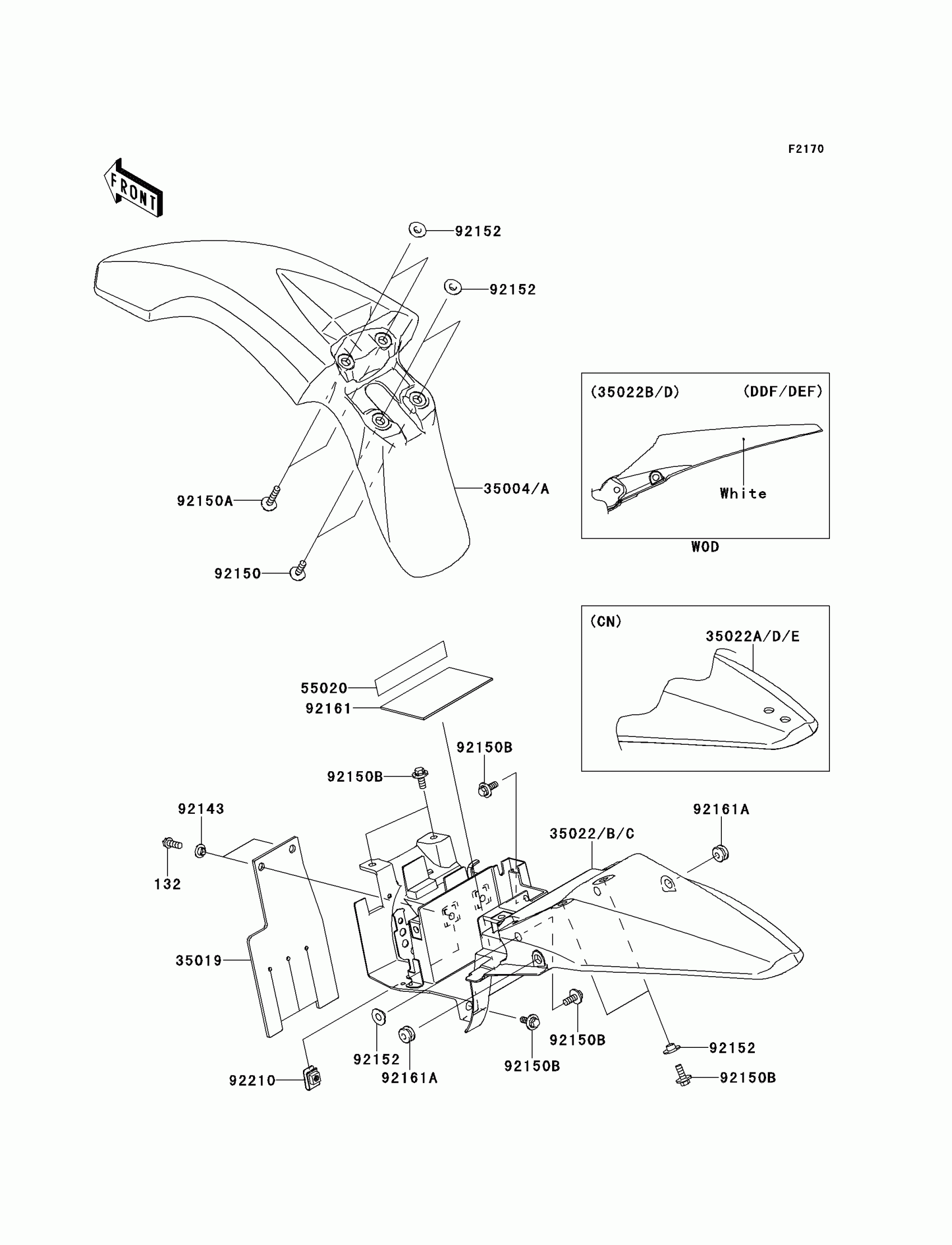

2014 Kawasaki KLX®110L Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X16

132BA0616

1
Out of stock

35004A

FENDER-FRONT,L.GREEN

35004-0148-290

1
Out of stock

35019

FLAP

35019-0091

1
Out of stock

55020

GUARD

55020-0552

1
Out of stock

92143

COLLAR

92143-1331

1
Out of stock

92150

BOLT,6X20

92150-1339

1
Out of stock

92150A

BOLT,FLANGED,6X30

92150-1486

1
Out of stock

92150B

BOLT,FLANGED,6X16

92150-1506

1
Out of stock

92152

COLLAR

92152-0427

1
Out of stock

92161

DAMPER

92161-0845

1
Out of stock

92161A

DAMPER

92161-0864

1
Out of stock

92210

NUT,6MM

92210-0218

1
Out of stock

35022B

FENDER-COMP-REAR,B.WHITE

35022-0079-266

1
Out of stock

35022D

FENDER-COMP-REAR,B.WHITE

35022-0080-266

1
Out of stock
