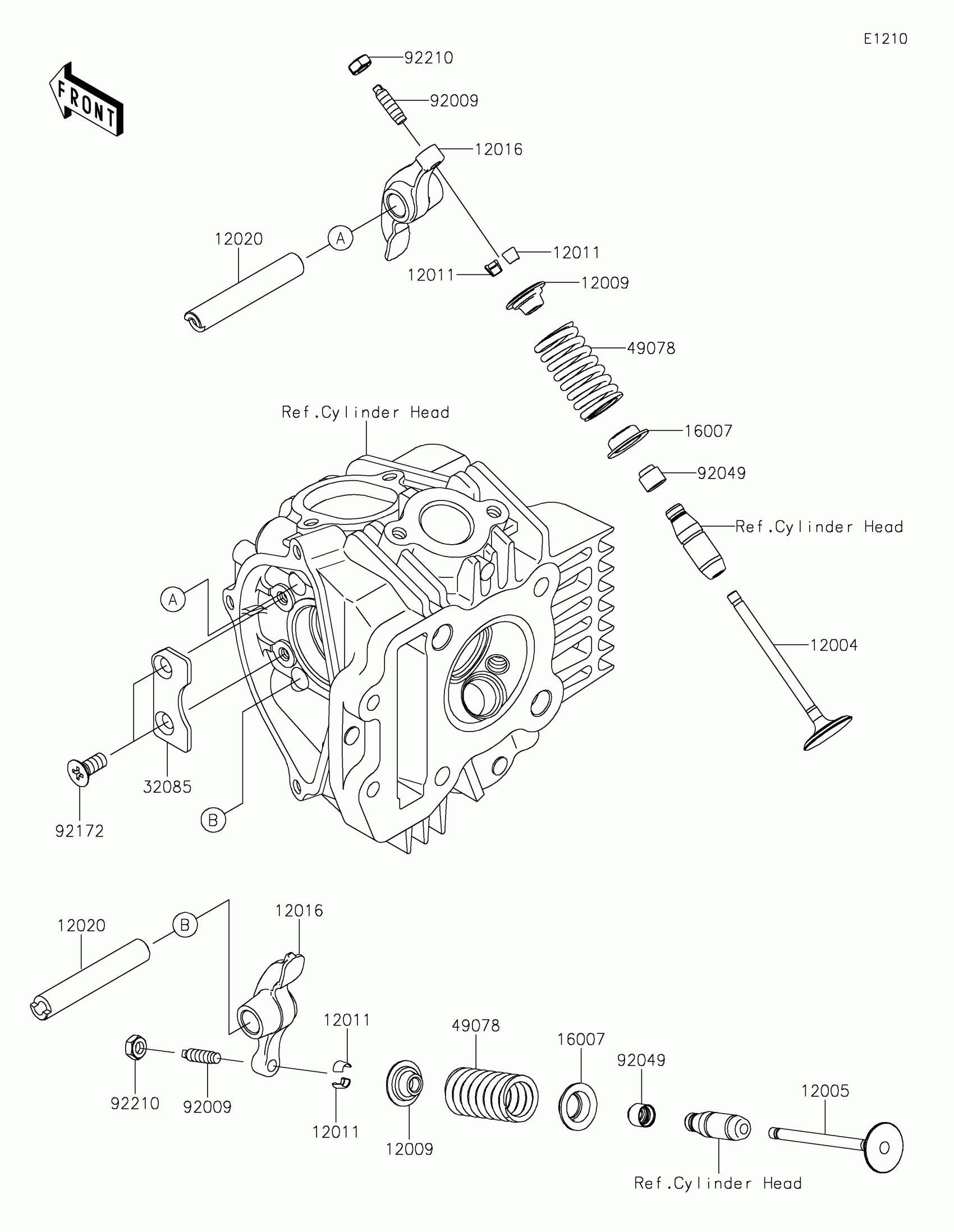

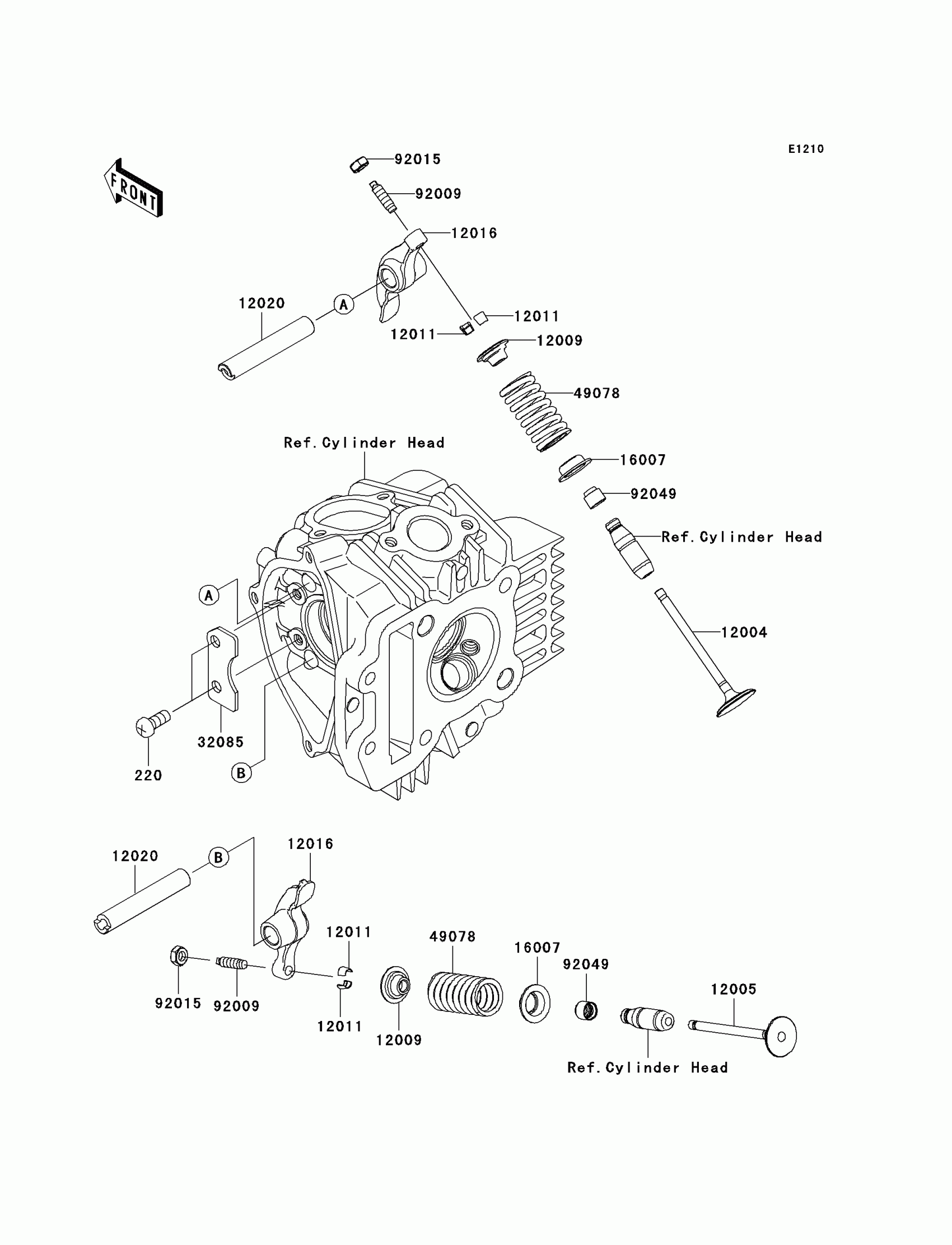

Kawasaki KLX®110 Valve(s) Diagram

Description

Price

220

SCREW-PAN-CROSS,6X14

220AA0614

$1.48

12004

VALVE-INTAKE

12004-1158

Unavailable

12005

VALVE-EXHAUST

12005-1331

Unavailable

12009

RETAINER-VALVE SPRING

12009-1073

$10.65

12011

COLLET

12011-1053

$5.46

12016

ARM-ROCKER

12016-0001

$39.84

12020

SHAFT-ROCKER

12020-1073

Unavailable

16007

SEAT-SPRING,VALVE

16007-1187

$3.67

32085

STOPPER

32085-1428

$2.58

49078

SPRING-ENGINE VALVE

49078-1151

$7.50

92009

SCREW,VALVE ADJUST

92009-1109

$2.29

92015

NUT,VALVE ADJUST LOCK

92015-1137

$1.00

92049

SEAL-OIL,VSB 4.3 7.5 5.3 8.3

92049-1349

$11.53
